ASCON Service Guide Book
32
L2 Models
Two selections are available:
a. Fan ON:
- If the indoor coil temperature > 40°C, the indoor fan will run at speed.
- If the indoor coil temperature crosses 37°C, the indoor fan willrun at low speed.
- if the indoor coil temperature <18°C, the indoor fan will stop.
b. Fan OFF
- If the indoor coil temperature >40°C, the indoor fan will run at set speed.
- If the indoor coil temperature crosses 37°C, the indoor fan willrun at low speed.
- If indoor coil temperature <30°C, the indoor fan will stop.
L208A / LWS2.0 models

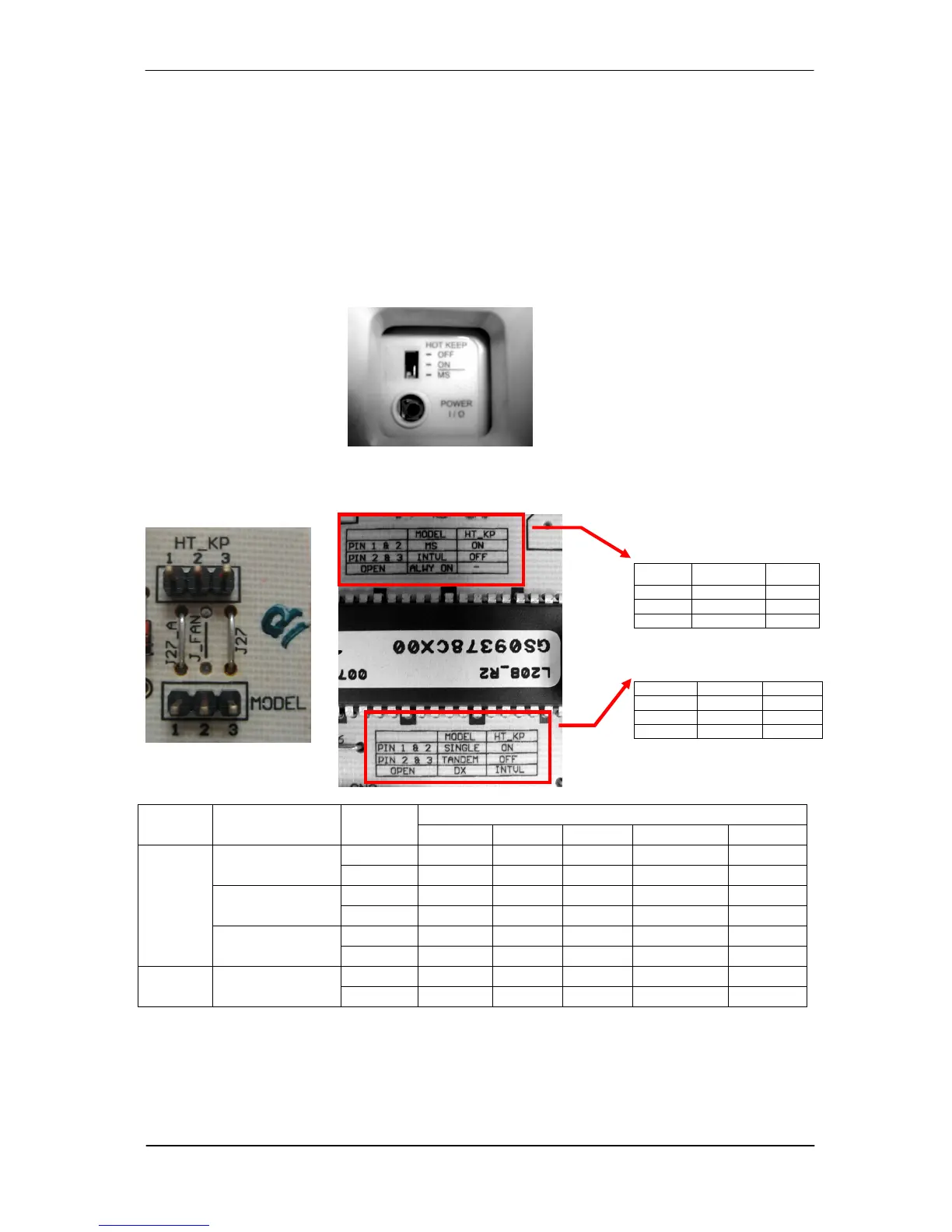

There are 2 tables setting for HT_KP & MODEL jumpers as shown as below.
The above table is the summary of the jumpers setting for both LWS2.0 and L208A.
For example,
WSHP single compressor with Fan ON for hot keep selection:
Place the shunt jumpers on HT_KP (Pin 1 & 2) & MODEL (Pin 1& 2).
Hotkeep Selection
Software Type Jumper
Fan On Fan Off Interval Always On Multisplit
MODEL Pin 2 & 3 Pin 2 & 3 Pin 2 & 3 X X
Tandem WSHP
HT_KP Pin 1 & 2 Pin 2 & 3 Open X X
MODEL Pin 1 & 2 Pin 1 & 2 Pin 1 & 2 X X
Single WSHP
HT_KP Pin 1 & 2 Pin 2 & 3 Open X X
MODEL Open Open Open X X
LWS2.0
DX
HT_KP Pin 1 & 2 Pin 2 & 3 Open X X
MODEL Open Open Pin 2 & 3 Open Pin 1 & 2
L208A DX
HT_KP Pin 1 & 2 Pin 2 & 3 Open Open Open
For L208A jumper setting
MODEL HT_KP
Pin 1&2 MS ON
Pin 2&3 INTVL OFF
Open ALWY ON -
For LWS2.0 jumper setting
MODEL HT_KP
Pin 1&2 Single ON
Pin 2&3 Tandem OFF
Open DX INTVL
HT_KP & MODEL Jumpers
