ASCON Service Guide Book
12
5.2 G8

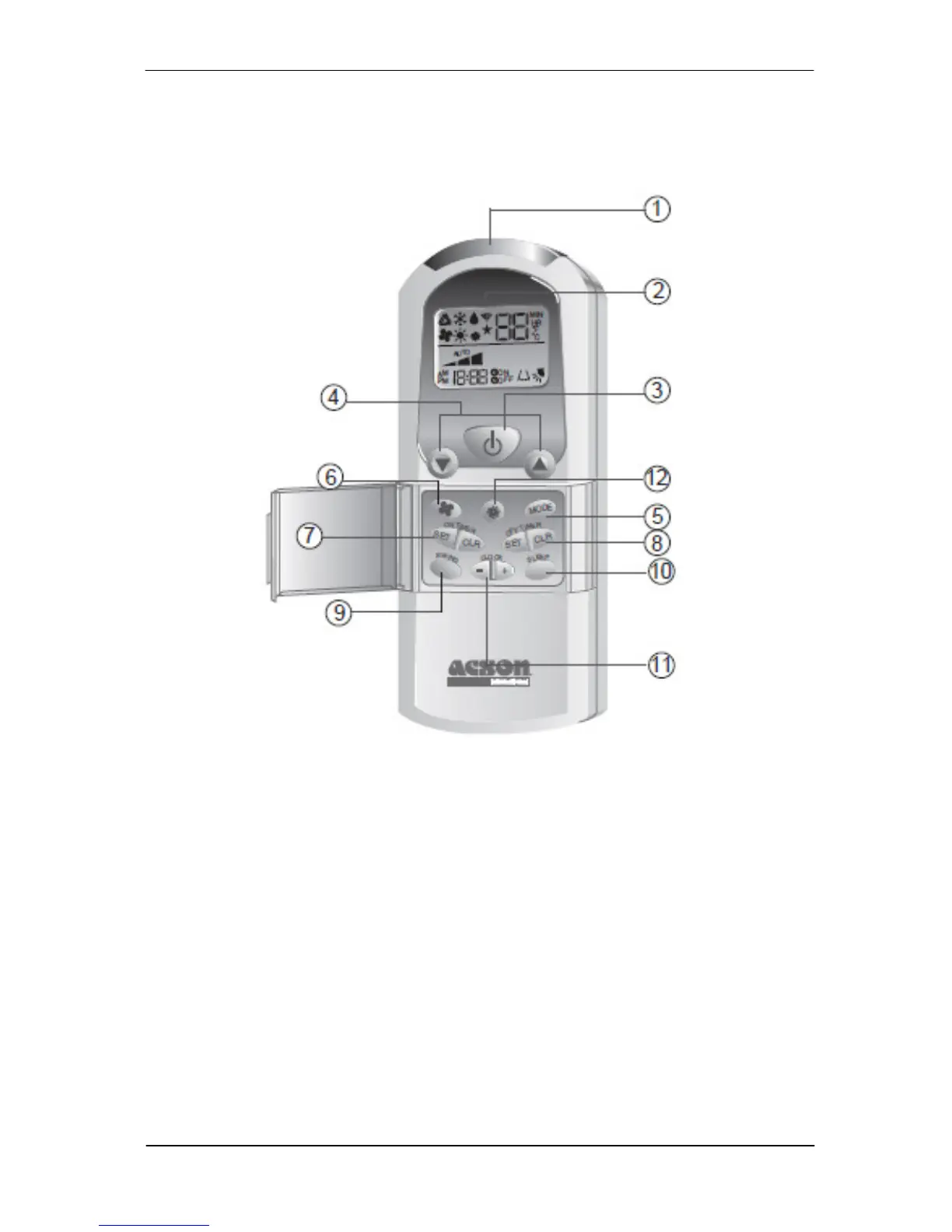

Outlook
Operation Guide
1. Transmission Source
•
The source where the signal will be transmitted.
2. Signal Transmission Indication
•
Blink to confirm the last setting has been send to the unit.
3. On/Off Button
•
Press once to start the air conditioner.
•
Press again to stop the unit.
4. Temperature Setting
•
To set the desired room temperature, press the button to increase or decrease the set
temperature.
•
The temperature setting range is from 16°C to 30°C (Optional setting 18°C to 30°C).
•
Press both buttons simultaneously to toggle the temperature setting between °C and °F.
To Next Page
