ASCON Service Guide Book
41

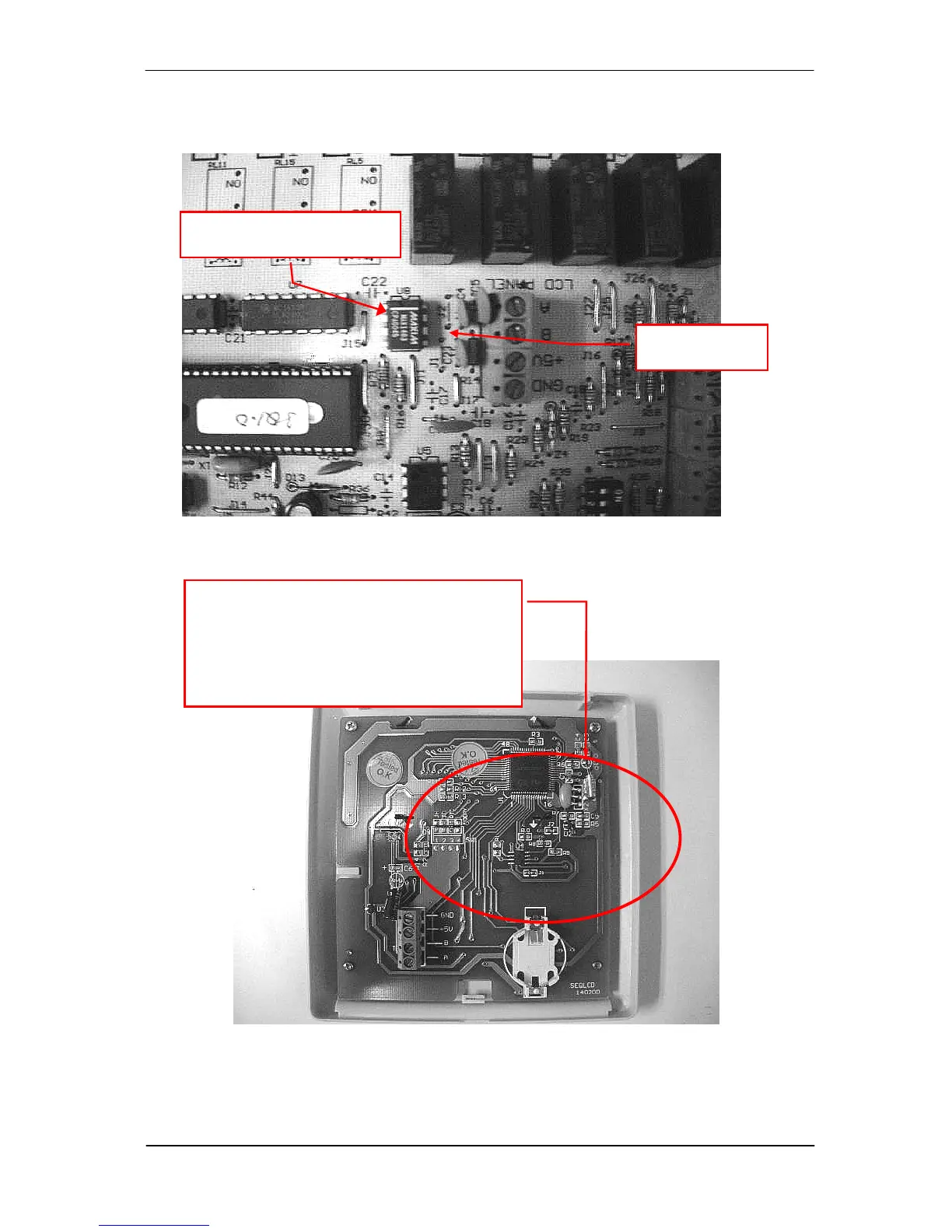

9.3 Sequential Main Board SQMB01 (New Version)
9.4 Sequential LCD Panel SQ-LCD (New Version)
SQLCD (LCD Panel) from old to new
Step 1: Remove Jumper: J1, J2
Step 2: Add Chip Resistor. 1/10W 5% 200K to
R8, R9, R10
Step 3: Add Part: 1000000030
IC: SMD MAX1483CSA to U4
To Next Page
