Ceiling Cassette A / B / C/ E Series Model
Model Board Handset
CK 20/25/30/40/50A/AR L208A G18 / SLM3 / Netware 3
CK 15/20/25B/BR L208A G18 / SLM3 / Netware 3
CK 10/15/20C/CR L208A G18 / SLM3 / Netware 3
CK 20/25/28/40/50E/ER L208A G18
LED Indicator Light Display - Cooling
LED Indicator Light Display – Heating

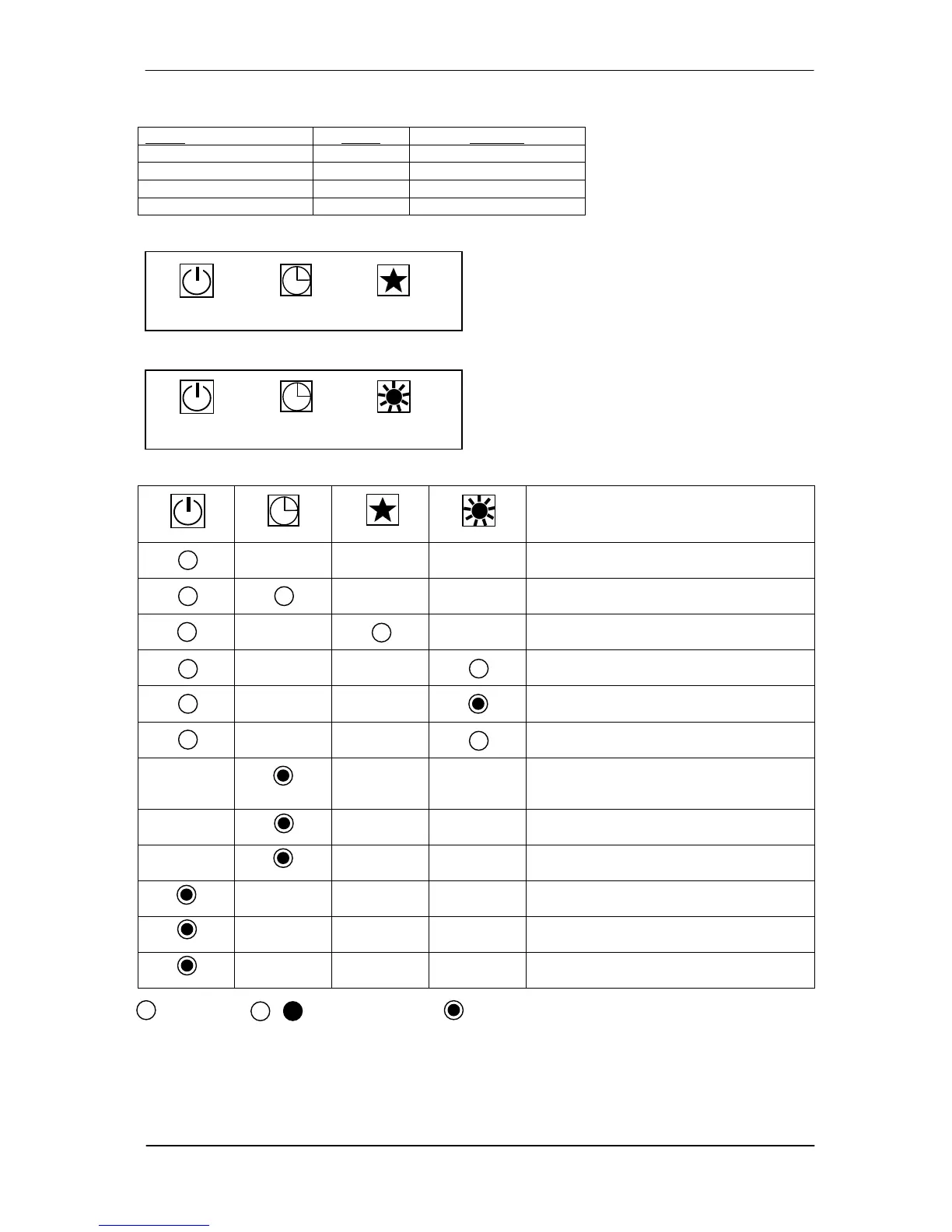

LED Light Diagnostic Table
Operation / Faulty Indication
Cooling mode
Timer On
Sleep mode On
Heating mode
Auto mode in cooling operation
Auto mode in heating operation
Compressor overload protection /
Indoor coil sensor short /
Outdoor coil sensor short
Pump fault
Gas leak
Room air sensor contact loose / short
Indoor coil sensor contact open
Outdoor coil sensor contact open
1 time
2 times
3 times
1 time
2 times
3 times
