Ceiling Cassette A/C Series Inverter-X Model
Model Board Handset
CKX 20/25A/AR VA3.0 G18
CKX 10/15/20C/CR VA3.0 G18
LED Indicator Light Display - Cooling
LED Indicator Light Display – Heating

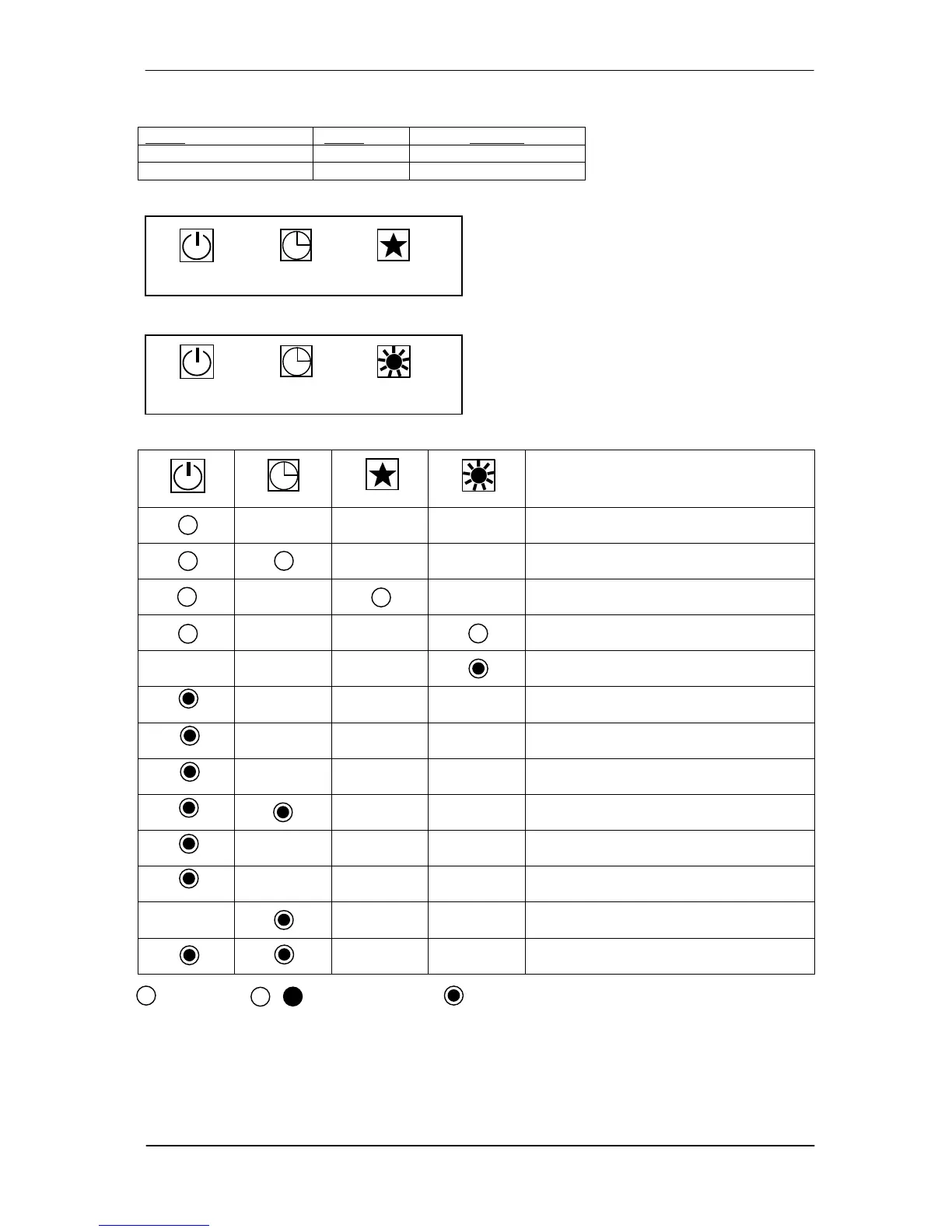

LED Light Diagnostic Table
Operation / Faulty Indication
Cooling mode
Timer On
Sleep mode On
Heating mode
Defrost mode
Indoor temperature sensor loose / short
Outdoor temperature sensor loose / short
Communication error
Compressor overload protection
Pump fault
Compressor overheat / gas leak
Outdoor over current
IPM / PFC / Partial switching
1 time
2 times
3 times
4 times
5 times
6 times
