Acson AWM

ASCON Service Guide Book
77
Multi Digital Scroll Indoor Units
Model Board Handset
AWMD 09/10/15/20/25 G MC201-C G18
ACKD 20/25/30/40/50 A MC201-C G18
ACKD 10/15/20 C MC201-C G18
ACCD 10/15/20/25/30/40/50/60 C MC201-C MC301
ACMD 20/25/28 E MC201-C G18
ACMD 40/50 D MC201-C G18
ACMD 62 C MC201-C G18
ADBD 80/100 MC201-A MC301
A5WMD 09/10/15/20/25 G MC201-C G18
A5CKD 20/25/30/35/40/50 A MC201-C G18
A5CKD 10/15/20 C MC201-C G18
A5CCD 10/15/20/25/30/40/50/60 C MC201-C MC301
A5CMD 20/25/28 E MC201-C G18
A5CMD 40/50 D MC201-C G18
A5CMD 62 C MC201-C G18
ADBD 80/100 MC201-A MC301

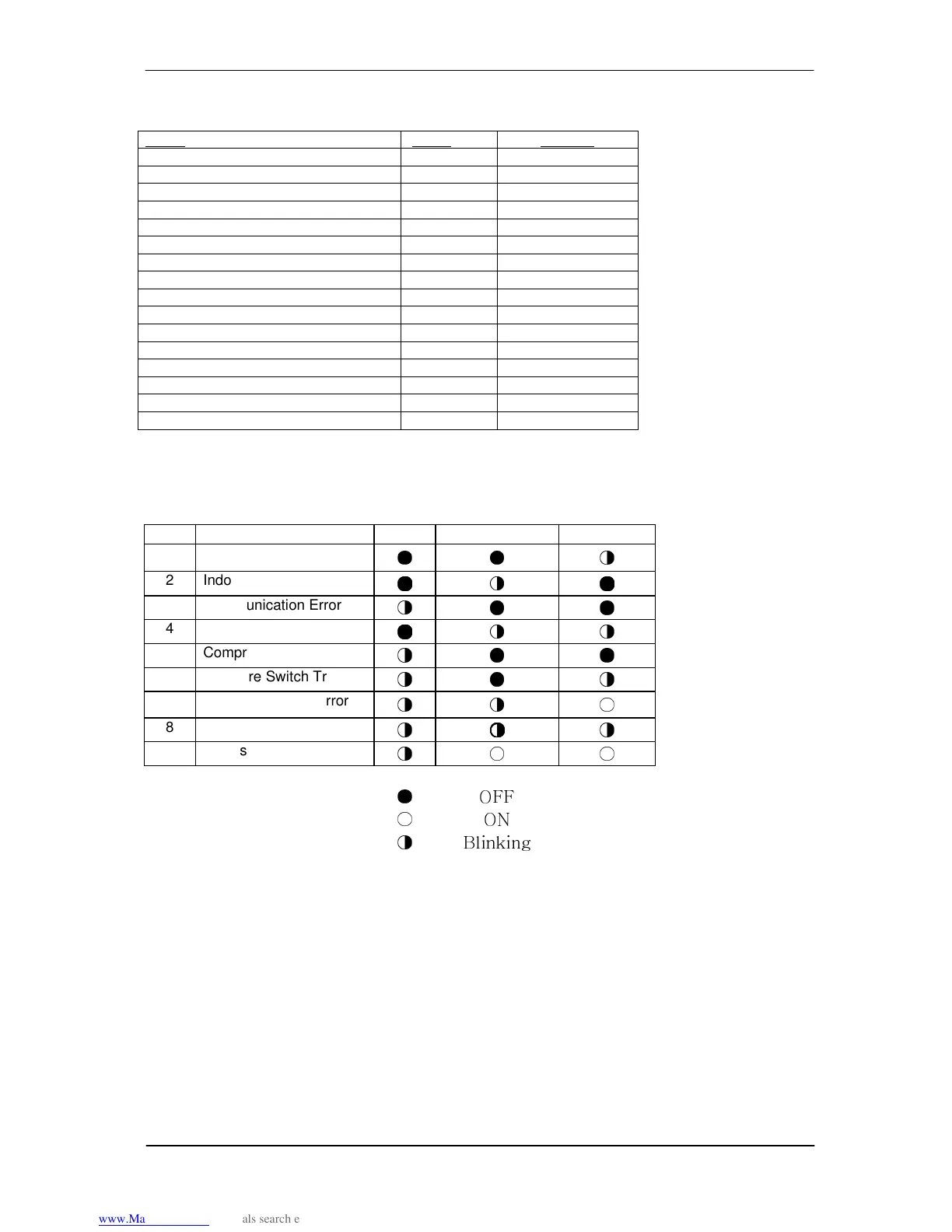

Indoor Error Code
Error Diagnosis by Indoor Unit LED Indicator
ITEM TYPE HEAT SLEEP/ FAN DRY
1 Indoor Sensor Error
● ● ◑
2 Indoor Pump Error
●
●●
● ◑ ●
●●
●
3 Communication Error
◑ ● ●
4 Outdoor Sensor Error
●
●●
● ◑ ◑
5 Compressor Overload
◑ ● ●
6 Pressure Switch Trip
◑ ● ◑
7 Pressure Sensor Error
◑ ◑ ○
8 System Failure
◑ ◑
◑◑
◑ ◑
9 Others
◑ ○ ○
● OFF
○ ON
◑ Blinking
