eWON4001™
Installation Guide
ver 2.1
page 16 of 31

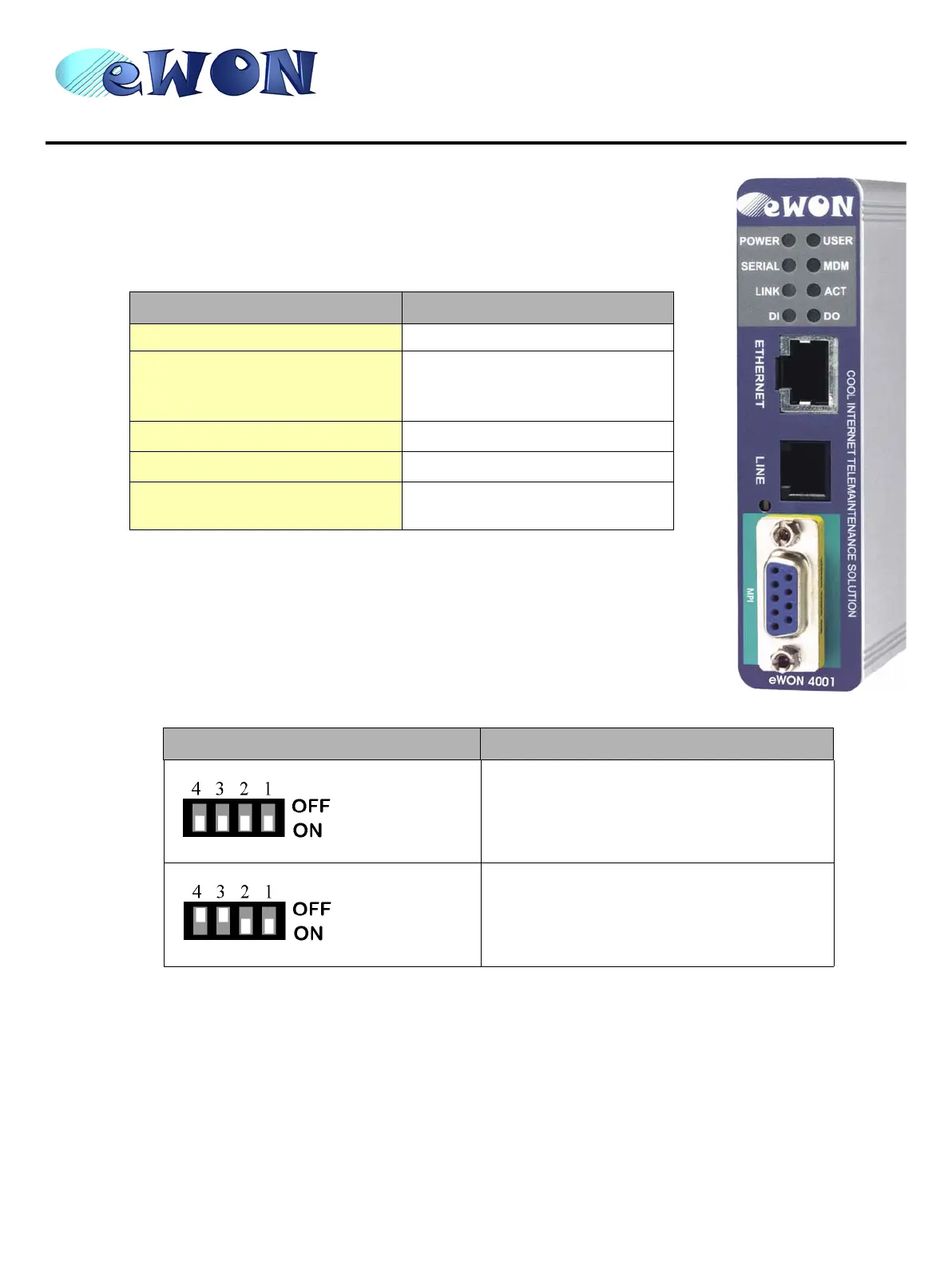

5.7 MPI port
The MPI port is easily identifiable with its blue square surrounding the gender-changer
dongle.
Dipswitch positions available
Specification Value
Physical mode MPI
Speed
• 19.2 kBauds
• 187.5 kBauds
• 1.5 MBauds
Polarisation 680 Ohms (selectable)
Termination 120 Ohms (selectable)
Pinout connector
See label and appendix
(MPI port (optional) on page 29)
Positions Mode
MPI
WITH polarisation and termination resistors
MPI
WITHOUT polarisation and termination resistors
