eWON4001™
Installation Guide
ver 2.1
page 27 of 31

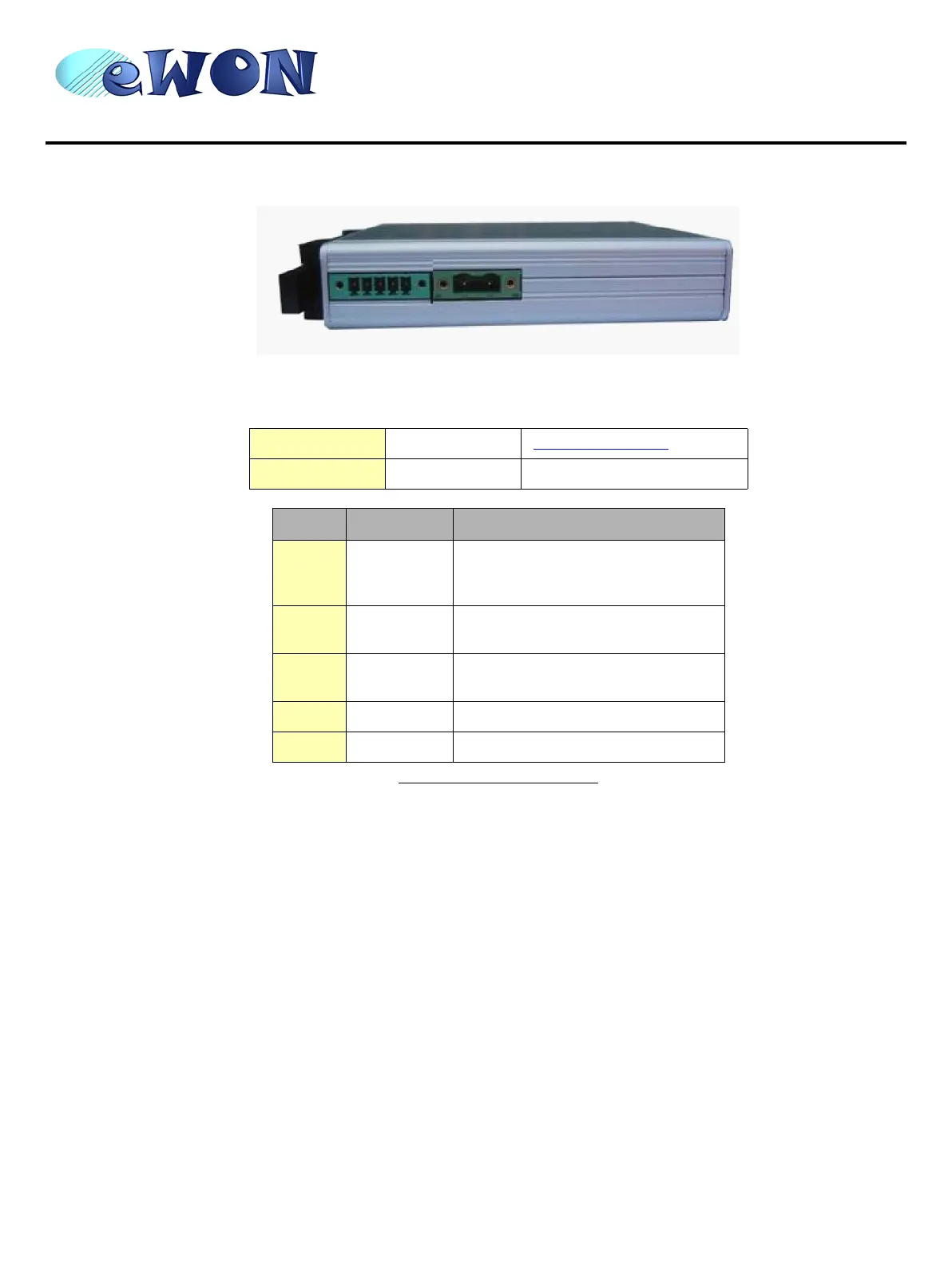

9.4 Input/Outputs
Mating female connector (included):
Manufacturer: Sauro http://www.sauro.net/
Part Number: CTF050VT
Pin REF Description
1 DO_GND
Output digital signal (0V ground)
connected to the emitter of the
transistor
2 DO_OC
Output digital signal connected to the
collector of the transistor
3 DO_VDC
Common of the external predrive power
supply (between +12 et +24 VDC)
4 DI_GND Ground of the input (isolated)
5 DI Input digital signal
Figure 11: Pinout I/O connector
