eWON4001™

Installation Guide

ver 2.1

page 28 of 31

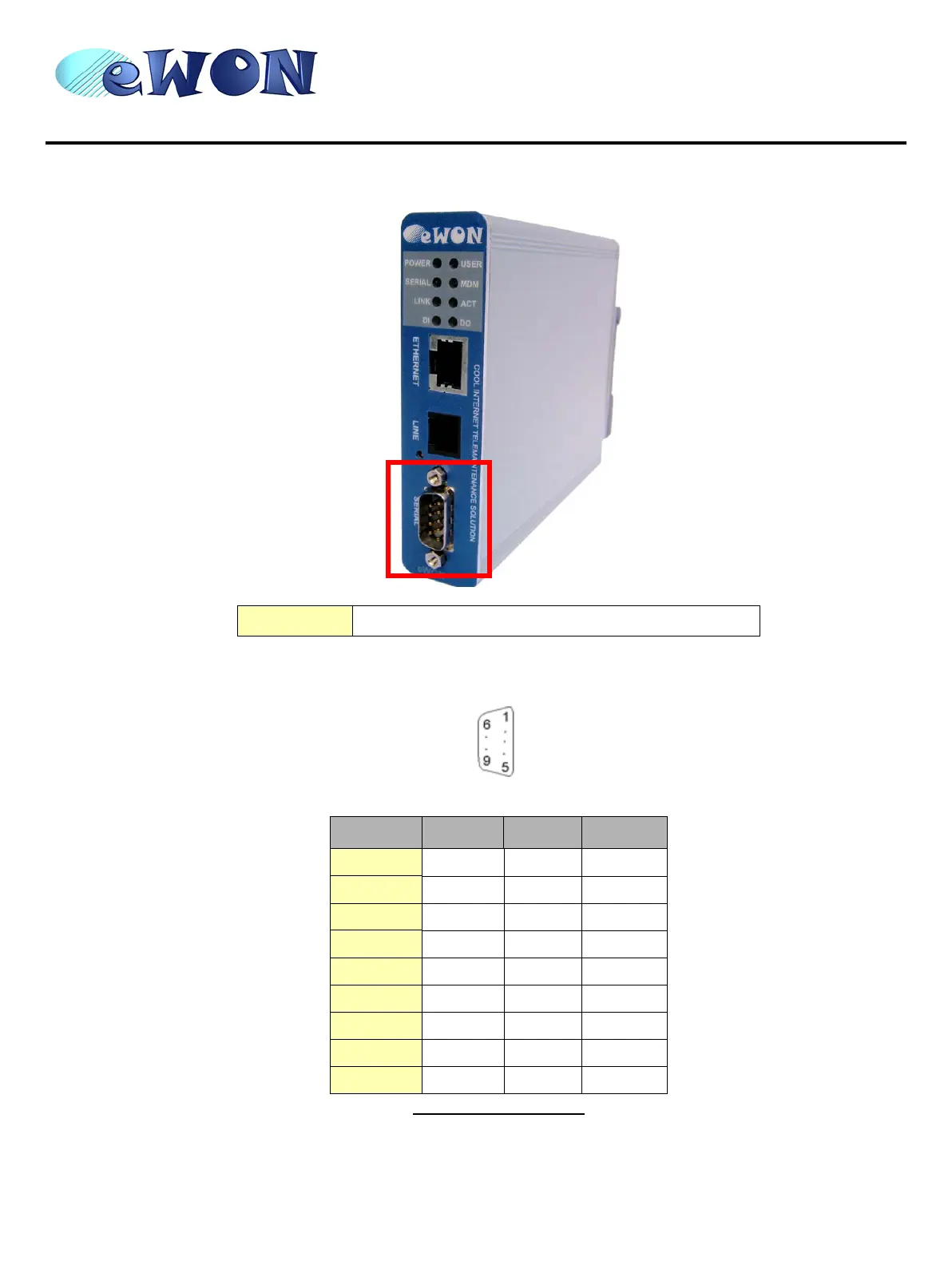

9.5 Serial Port (optional)

Mating female connector (not included):

Pinout serial port (according to mode):

Type Female DB9 with 4/40 blocking screws

Pin RS232 RS485 RS422

1 ---

2 RXD - RX+

3 TXD A+ TX+

4 ---

5 GND GND GND

6 ---

7 RTS - RX-

8 CTS B- TX-

9 ---

Table 16: Pinout serial port
