eWON4001™
Installation Guide
ver 2.1
page 23 of 31

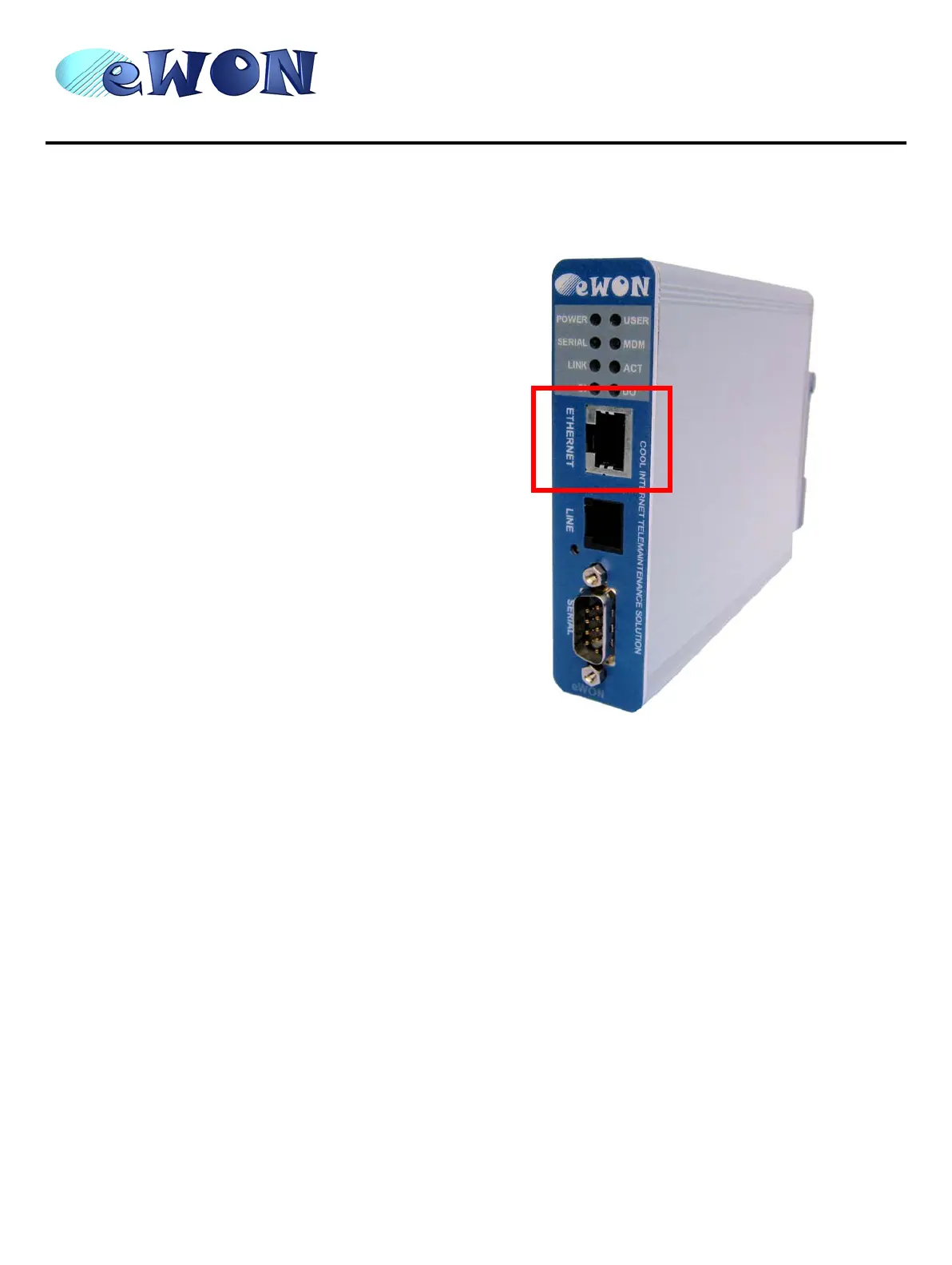

9.2 Ethernet
The eWON can be accessed by a 10/100BaseTX
Ethernet connection. This connection can be made
with two different cables (straight or crossed). These
cables have 8 copper conductors and are known as
UTP Class 5 with RJ45 terminations at both ends.
These cables are availbale as spare parts (see
External accessories on page 3).
The type of cable (straight or crossed) depends on the
equipment the eWON will be connected to. The most
current cases are the direct connection with a PC
(crossed) and the connection through a hub/router
(straight).
