ACTi B41 - Page 33

www.acti.com
Hardware Manual
33

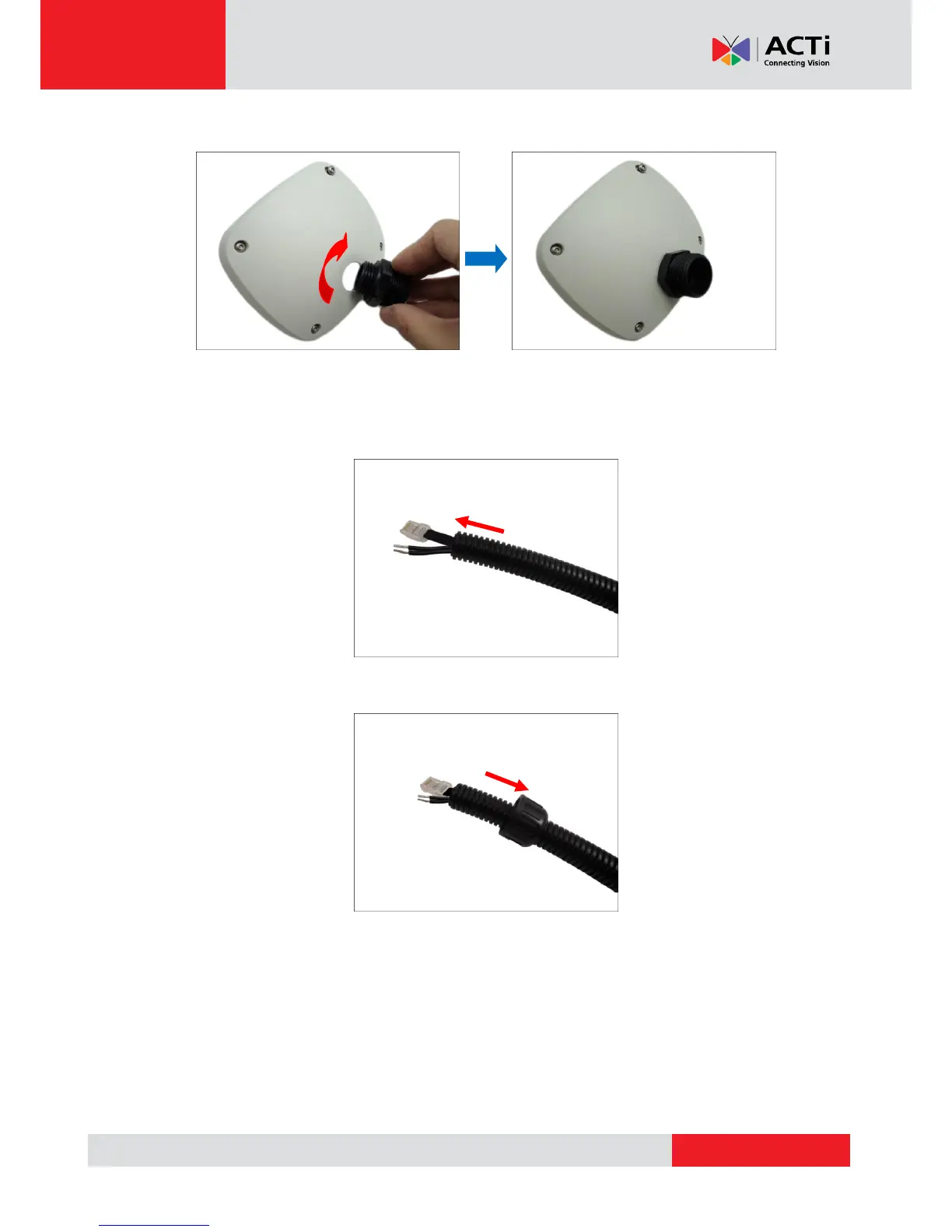

2. Attach the gland body to the hole of the cover.
3. Pull enough length of the device cables without connectors through the flex conduit. The
terminal blocks will be attached once the cable passes through the gland body and cover
later.
4. Insert the clamping nut through the flex conduit.
