ACTi E44 - Step 3: Connect the Cables

www.acti.com
Installation Guide
12
Step 3: Connect the Cables

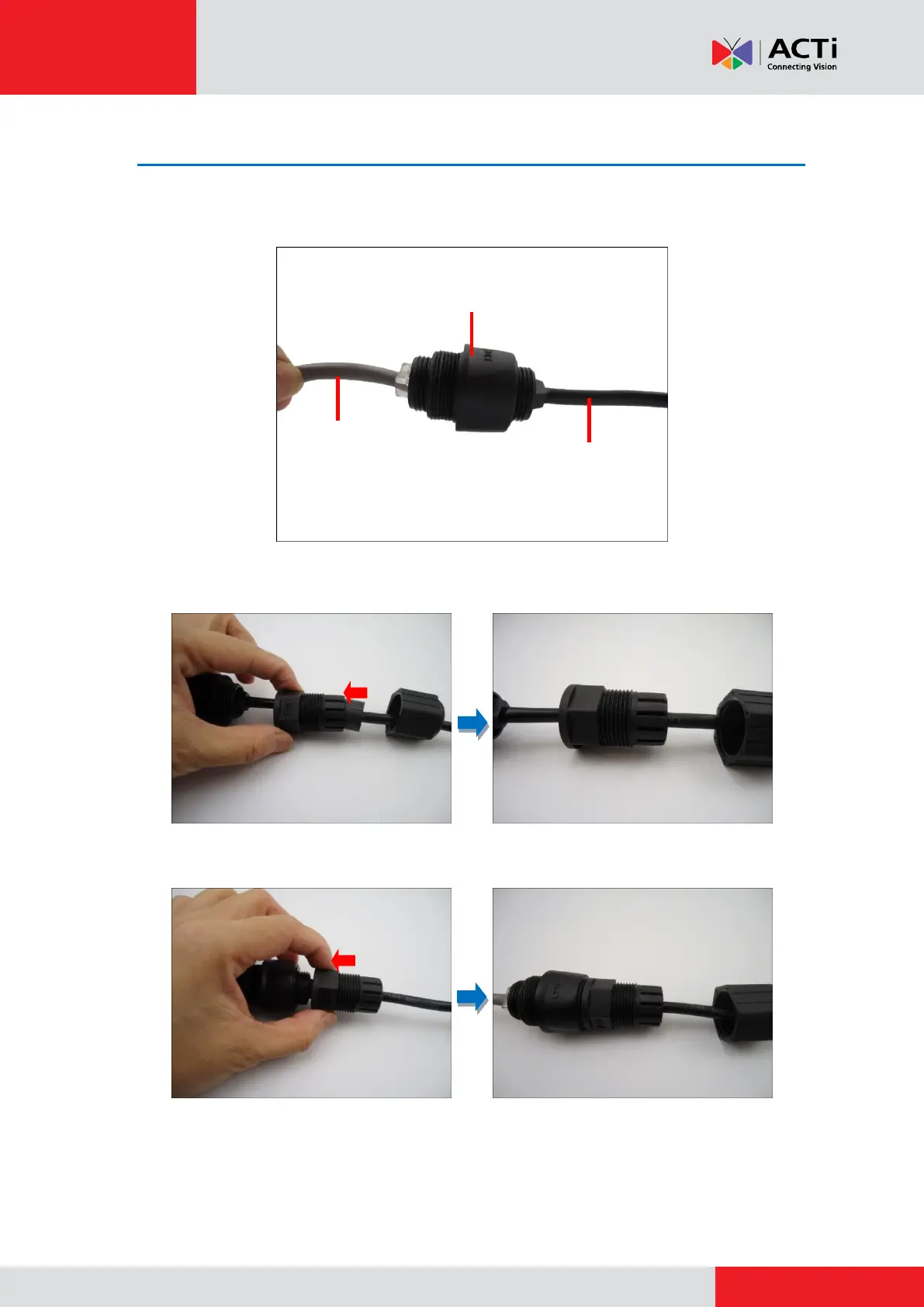

1. Connect the Ethernet connector of the camera and the network to each side of the 2-sided
female type connector.
2. On the Ethernet cable on the camera side, attach the rubber seal to the main body.
3. Attach the main body to the 2-sided female type connector.
Ethernet cable
of the camera
Ethernet cable
from the network
2-Sided Female
Type Connector
