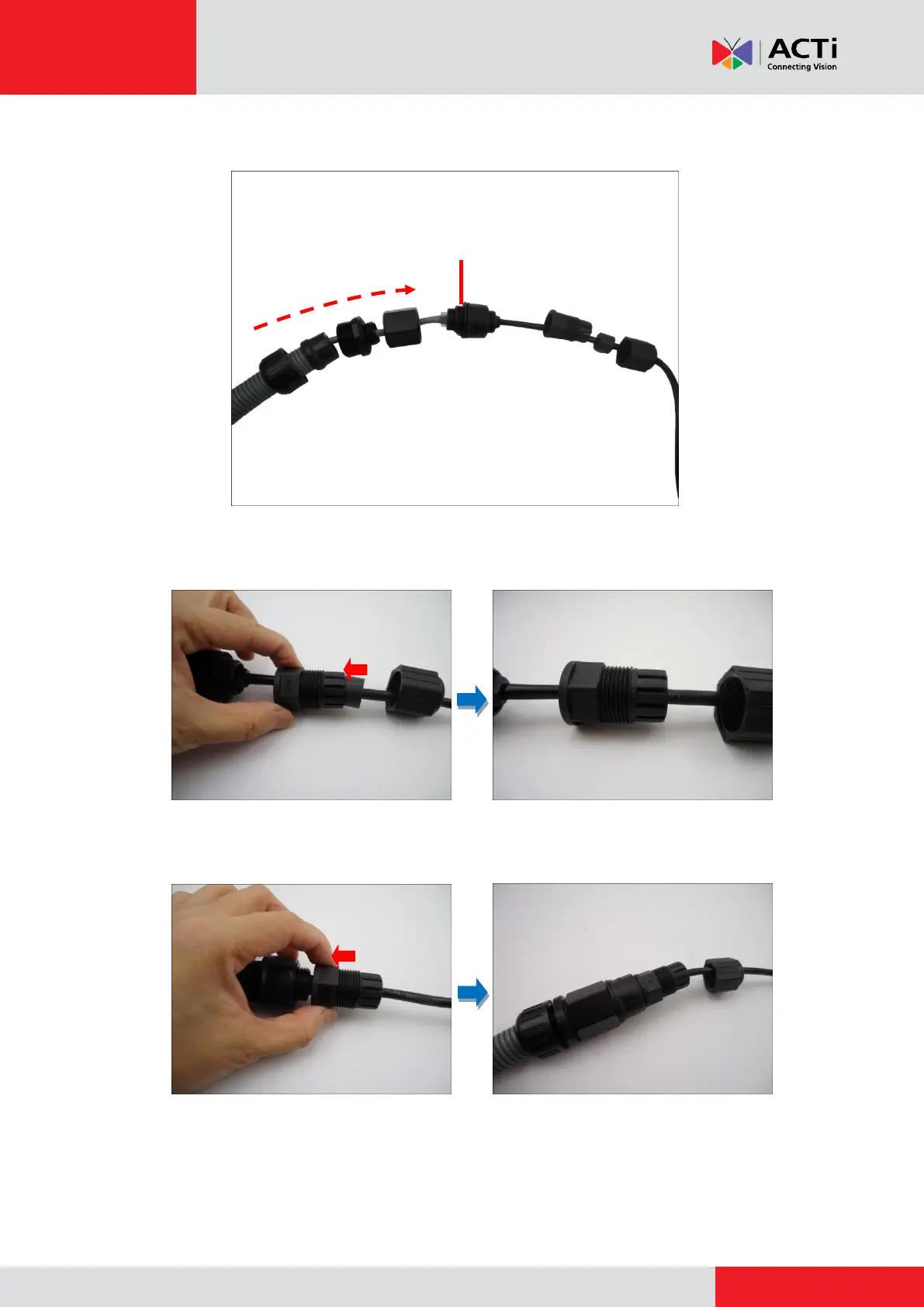

2. Connect the parts of the network side cable to the 2-sided female type connector.
3. On the Ethernet cable on the camera side, attach the rubber seal to the main body.
4. Attach the main body to the 2-sided female type connector.
Ethernet cable
of the camera
Ethernet cable
from the network
2-Sided Female
Type Connector
