Installation Guide
3
Installation Procedures
This section describes the procedures in installing the camera on a 4” Round or 4” Octagon
Gang Box which is mounted on the ceiling.
With this type of installation, the following accessories and tools are required:
Gang Box (4” round or 4” octagon)
Gang Box Converter (PMAX-0805)
Phillips Screwdriver
Network Cable
For simplicity, most of the camera images used in the succeeding sections were taken using the
camera model with heat sink; same procedures apply to the model without heat sink unless
specified.
Step 1: Install the Gang Box

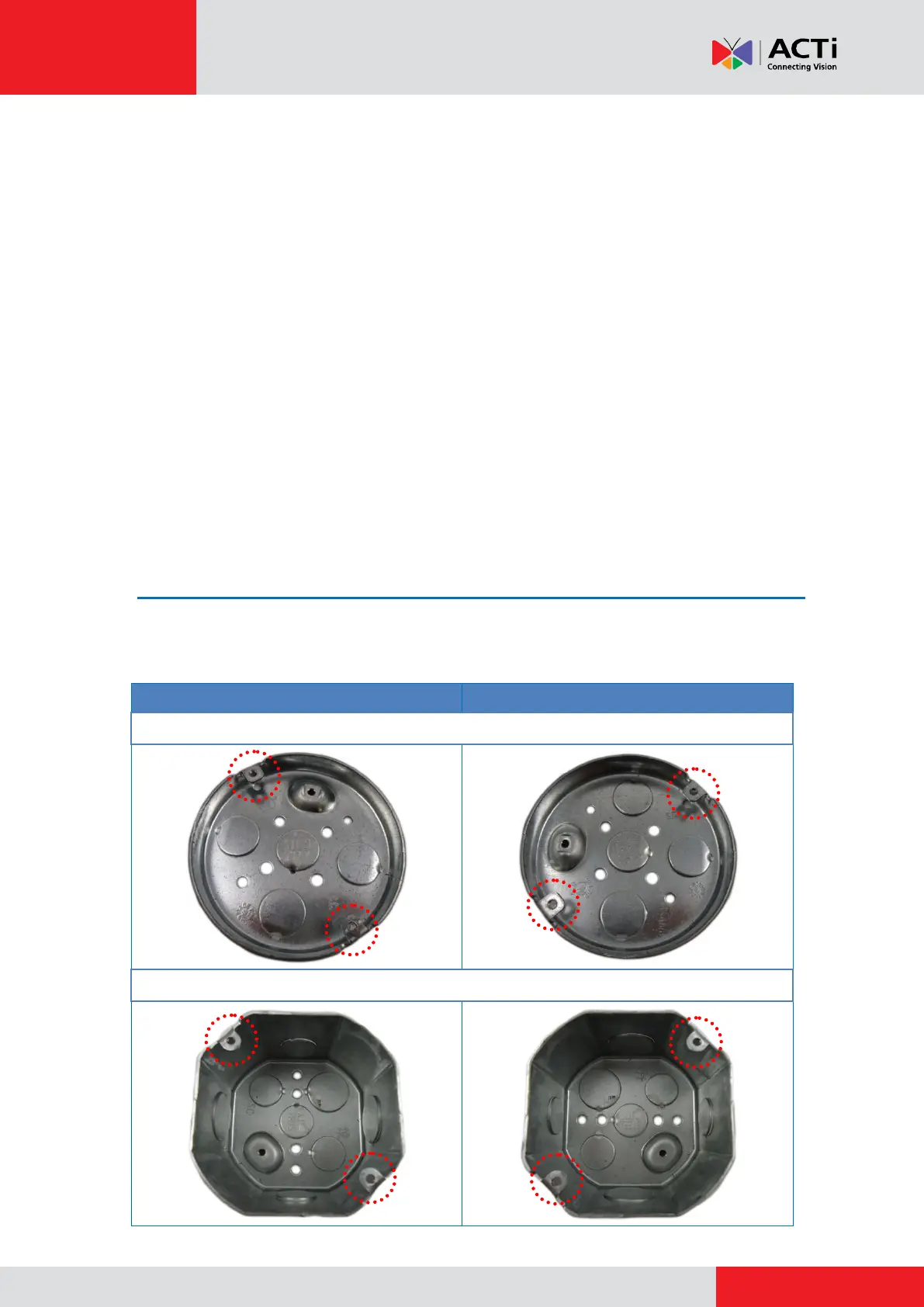

Before installation, note that the gang box must be installed with either of the following
orientation:
Screw Holes from Left to Right
Screw Holes from Right to Left
To Next Page
