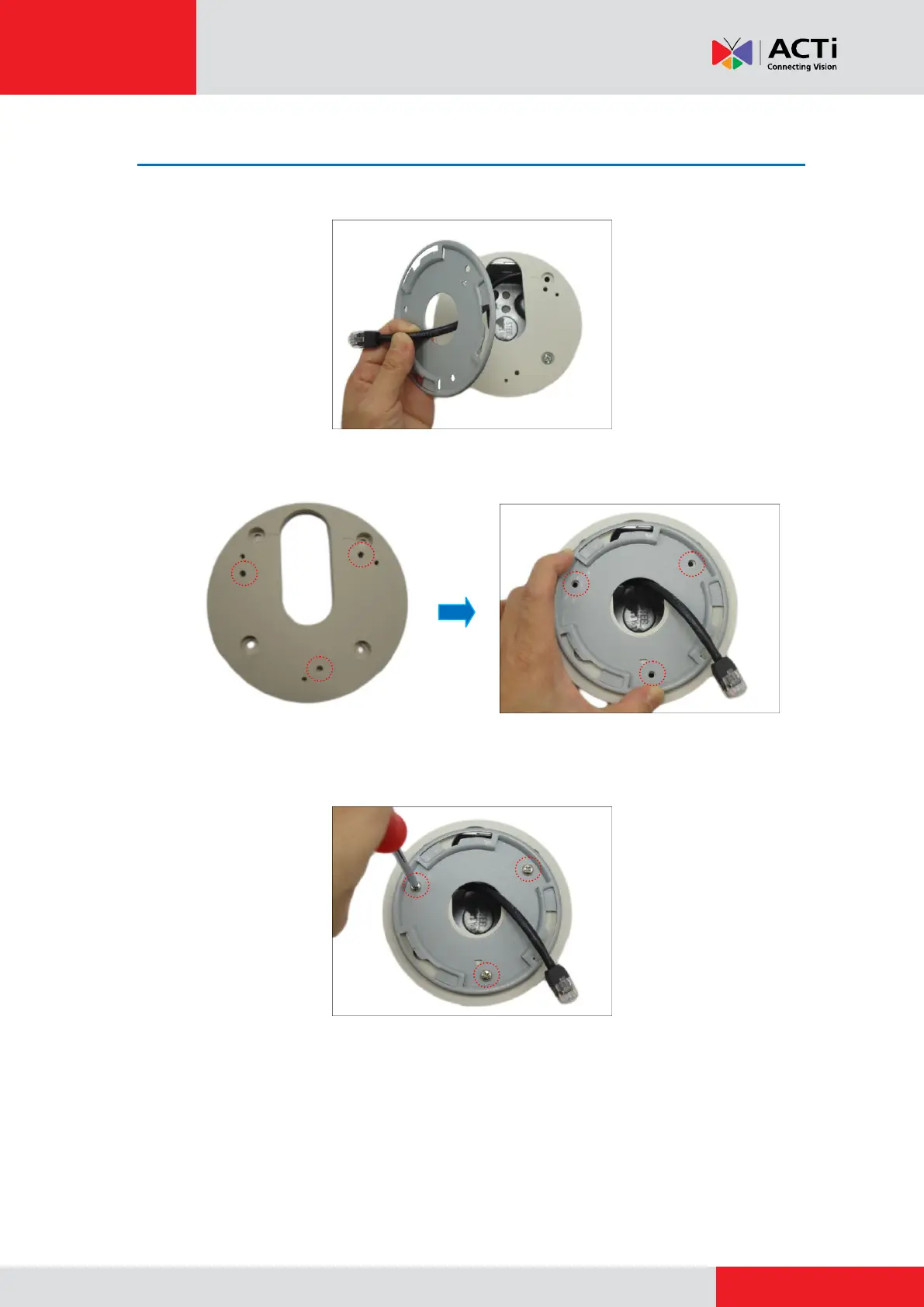

Step 4: Attach the Mounting Plate
1. Route the network cable through the cable hole of the mounting plate.
2. Align the screw holes of the mounting plate to the marked holes on the gang box converter.
3. Attach the mounting plate to the gang box converter using the three (3) screws (included in
the camera package).
NOTE: Make sure the screw is flat on the plate.
