Installation Guide
4

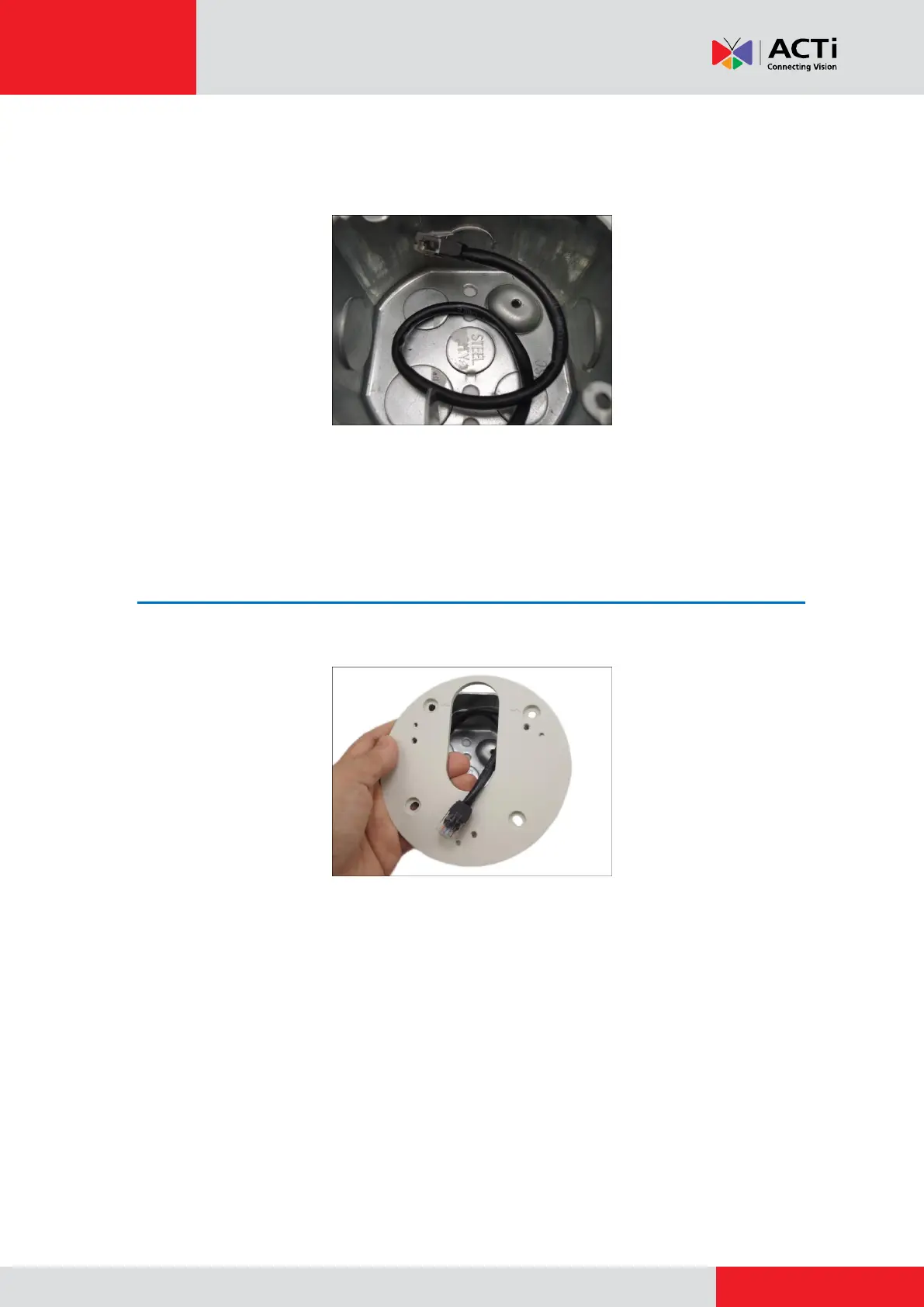

1. Remove a knockout on the gang box to route the network cable.
2. Route the network cable along the surface or inside the surface and into the gang box.
3. Attach the gang box on the surface or inside the surface according to the recommended
orientation above.
Step 2: Install the Gang Box Converter
1. Route the network cable to pass through the hole of the gang box converter.
