E815, E816, E817, E822
Since E815, E816, E817, and E822 models are zoom cameras with auto focus feature, only the
viewing angle and orientation needs to be adjusted.

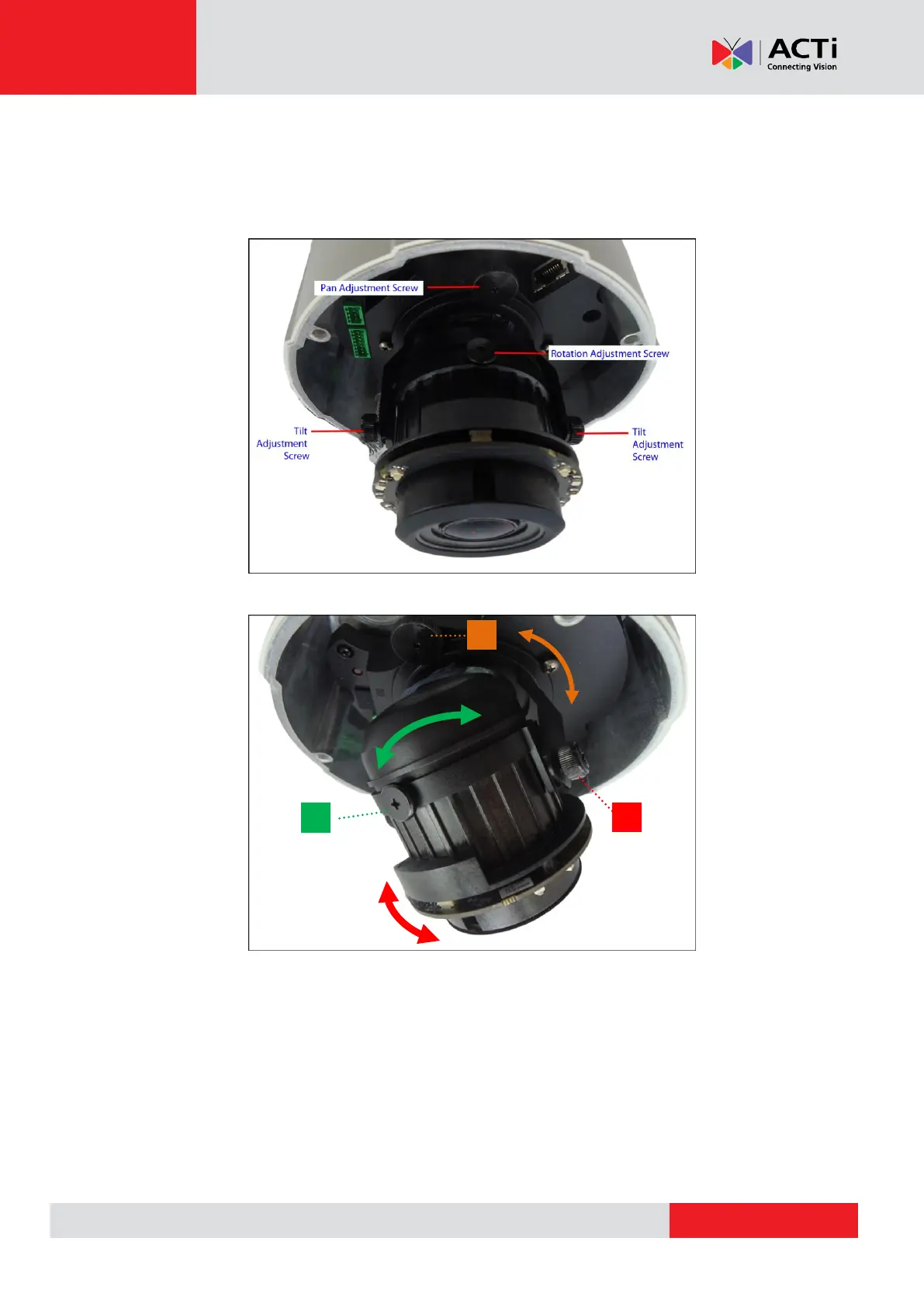

Camera Parts Overview
Adjustment Procedures
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix
the tilt position.
2. Loosen the rotation adjustment screw, rotate the viewing orientation, and then tighten
back the screw to fix the orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the
screw to fix the pan position.
