RJ-45 Ethernet Cable (for E9xx models only)
When using the RJ-45 Ethernet cable, follow the procedures below to waterproof the cable
connection:

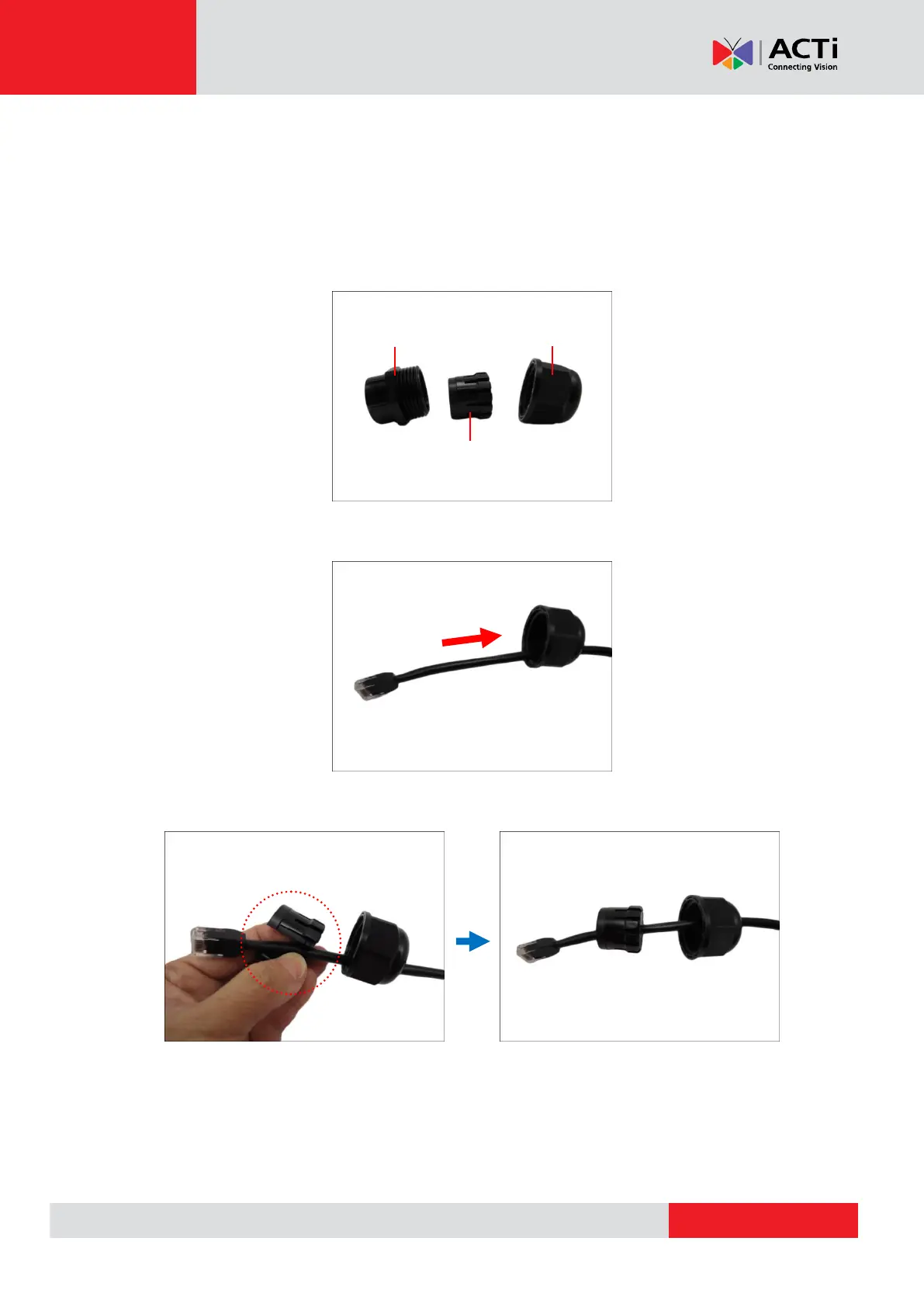

1. Detach the cable gland as shown below.
2. On the network side cable, insert the clamping nut through the Ethernet cable.
3. Insert the sealing rubber and claw through the Ethernet cable.
Gland Body
Clamping Nut
Sealing Rubber and Claw
