ACTi E933 - Page 32

www.acti.com
Hardware Manual
32

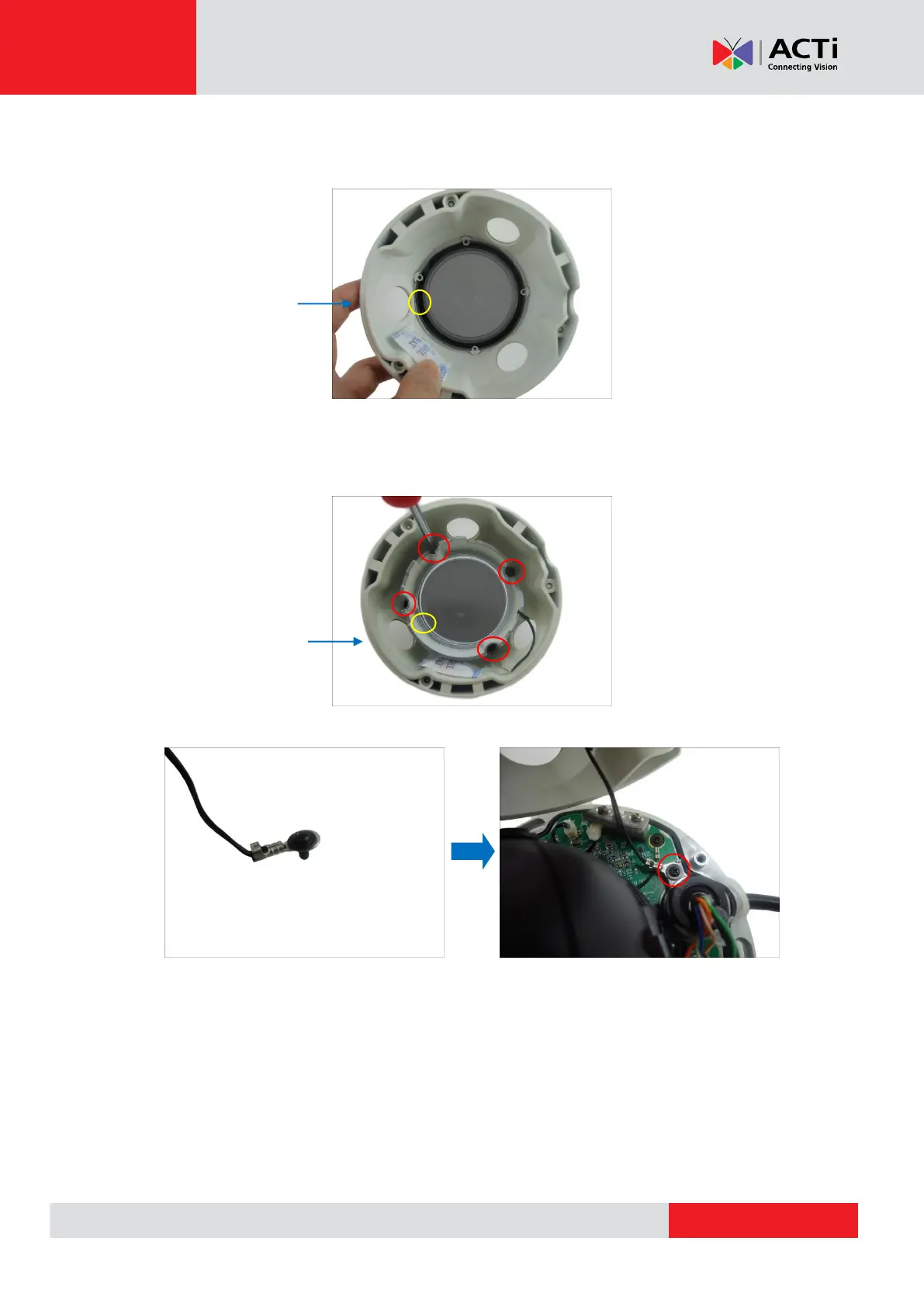

7. Align and place the replacement dome cover with the arrow pointing towards the camera
logo.
8. Align and place the dome cover bracket on the housing with the arrow pointing towards the
camera logo. Tightly attach the four (4) screws to secure the dome cover bracket to the
housing.
9. Attach the screw to secure the dome cover housing to the camera module.
Camera logo here
Camera logo here
