Active VE52 - Exploded View; Parts List

6
Exploded View / Parts List
A
B
C
D
E
F
G
H
I

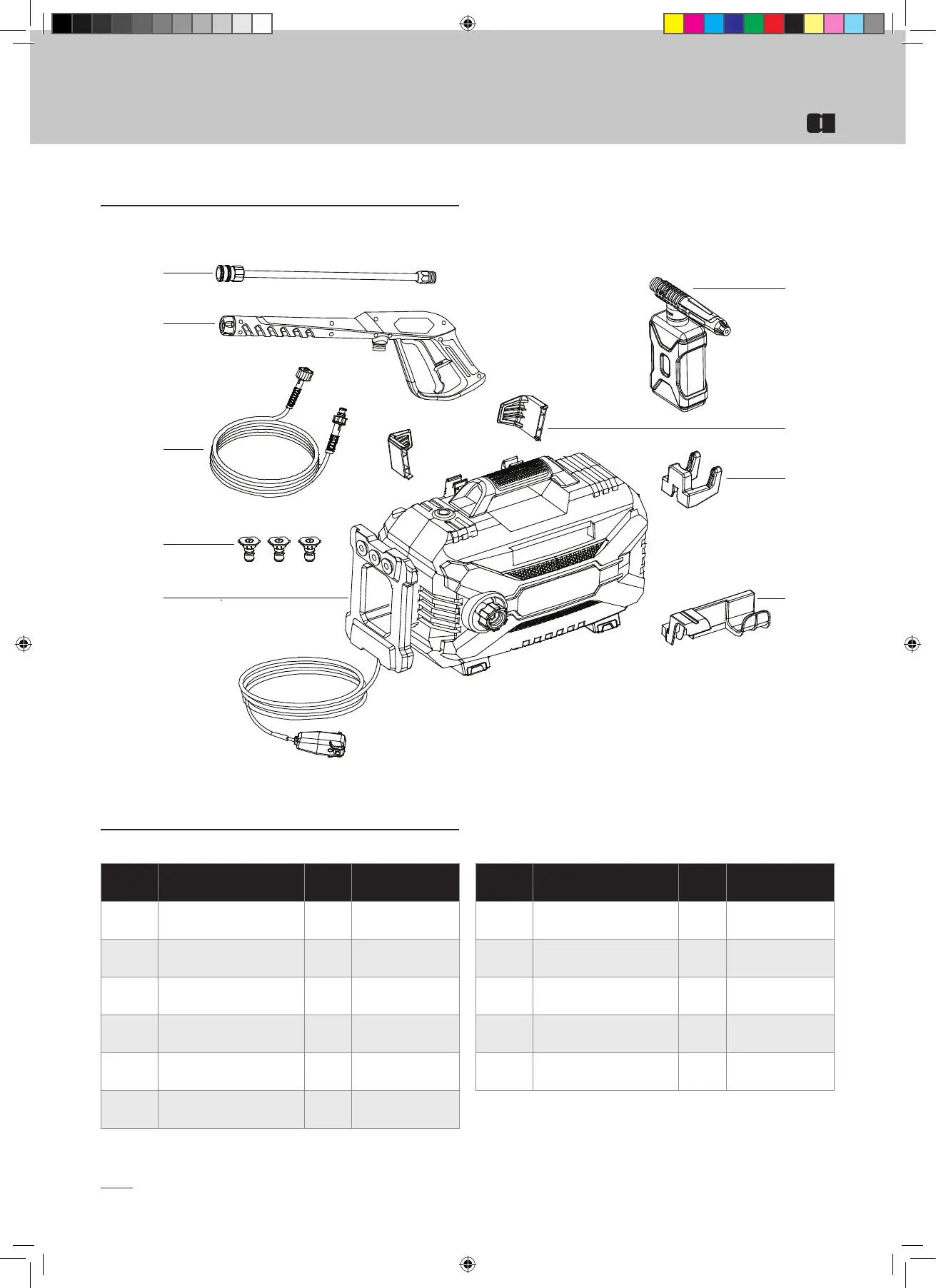

3. Exploded View
4. Parts List
Item # Part Name Qty. Part #
A Quick-connect wand 1 XE16-020-0002
B Gun assembly 1 XE16-020-0003
C High-pressure hose 1 XE30-010-0005
D Tips kit (3 pcs) 1 VE20-020-0004
E Cord bracket 1 VE20-000-9003
F Foam blaster 1 VE20-060-1100
Item # Part Name Qty. Part #
G Hose holder kit (2 pcs) 1 set VE20-000-0004
H Bottle holder 1 VE20-000-9002
I Gun holder 1 VE20-000-0005
N/A Cleaning needle 1
Pre-attached on
the manual
N/A Water filter 1
Pre-attached on
the machine
*Water filter come pre-attached on the machine.
