Quick Start Guide English
573101 REV A | 02.2015
Bosch Automotive Service Solutions Inc.
1 General Scan Tool Information

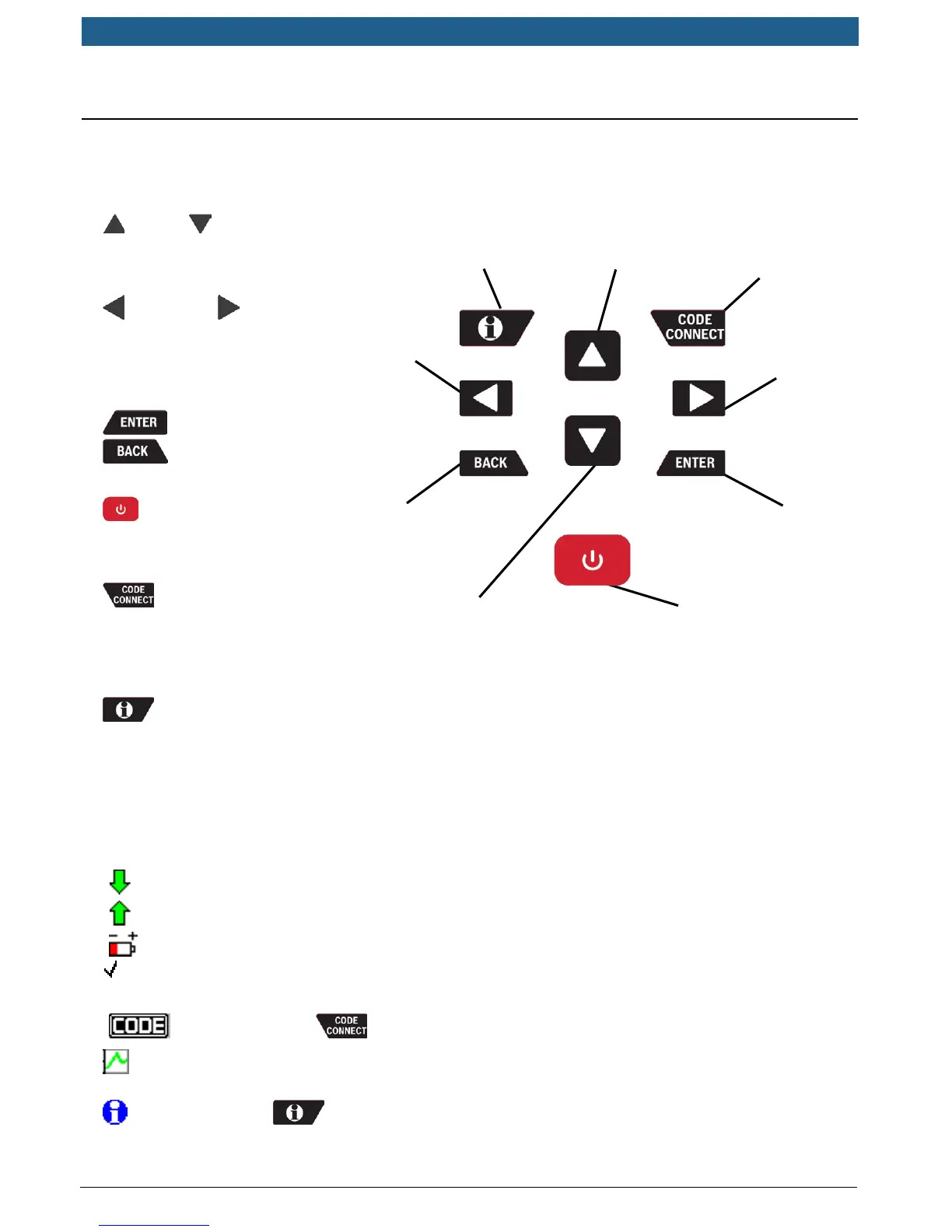

1. 1 User Interface
The scan tool is designed for easy use. All menus and lists operate the
same way.
•
UP or DOWN arrow
keys allow movement
through lists and menus.
•
LEFT or RIGHT
arrow keys moves
between Answers and
Recorded Data Frames.
•
key selects item.
•
key returns to
previous screen.
•
ON/OFF key turns
scan tool on or off when
powered by batteries.
•
key allows the
operator to access
vehicle-specific
repair information.
•
MORE INFO key displays the Diagnostic Trouble Code (DTC) deni-
tion when viewing Freeze Frame Data. It will display the code setting
criteria when viewing DTC denition.
1.1.2 Display Icons
• Indicates additional information is available by scrolling down.
•
Indicates additional information is available by scrolling up.
•
Indicates the internal batteries need replaced or are not installed.
•
Indicates selected items in a data list or that data is available for
items on the Review Data and Print Data Menu.
•
Indicates the key is active.
•
Indicates graphical viewing of data items is available in View Data and
when playing back previously recorded data.
•
Indicates the key is active.
UP
arrow key
ENTER
key
RIGHT
arrow
key
DOWN
arrow
CODE
CONNECT
key
ON/OFF
key
BACK
key
LEFT
arrow key
MORE
INFO
key
