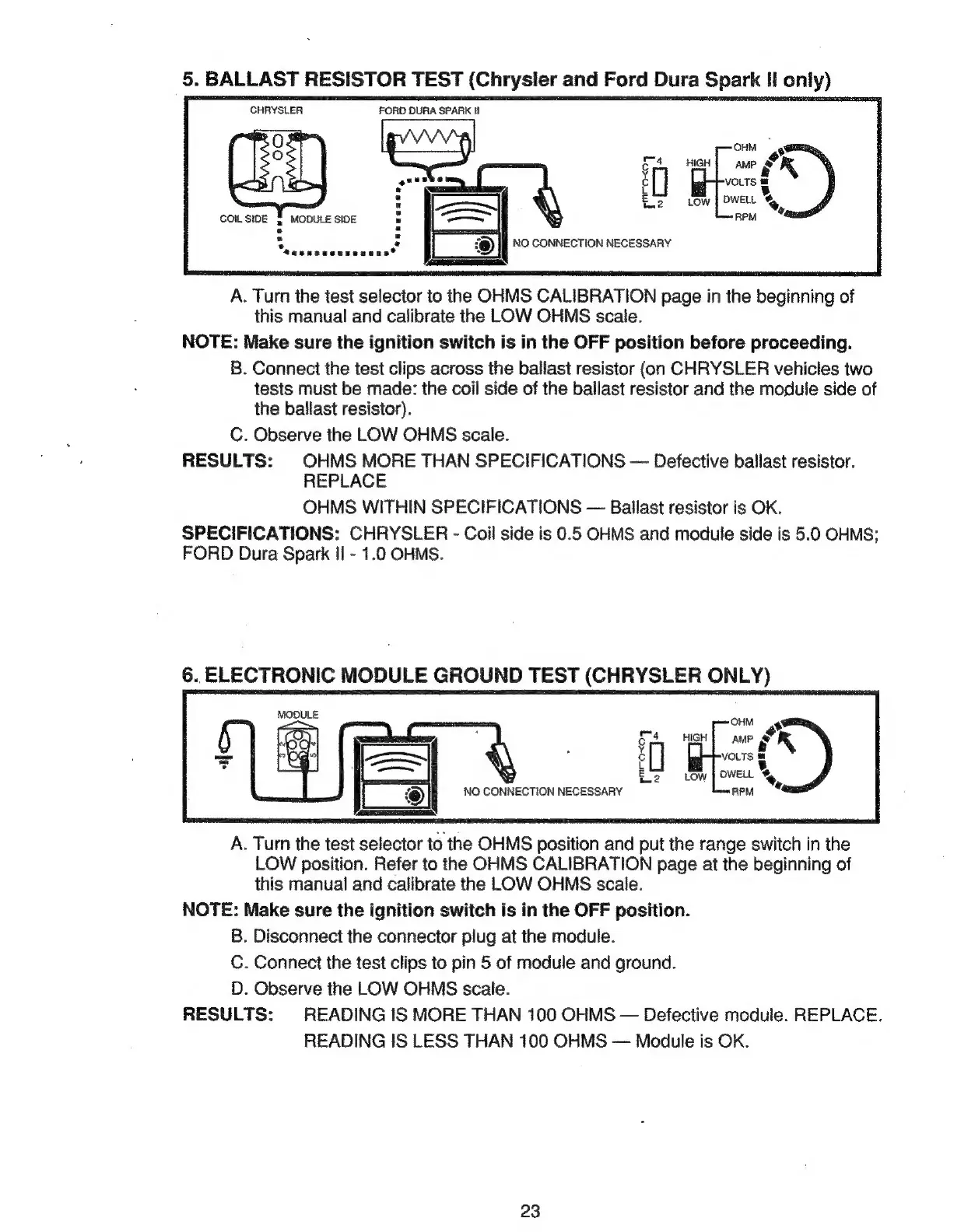

5. BALLAST RESISTOR TEST (Chrysler and Ford Dura Spark Il only)
CHRYSLER FORD DURA SPARK H
n OHM |
}
s
wa EÉ HIGH | AMP oR
VOLTS
5
<
È
0
5
; Ez ow | DWELL 4
COILSIDE
|
MODULE
SIDE
RPM
NO CONNECTION NECESSARY
annuanenr,
*
Seensucunscons®
A. Turn the test selector to the OHMS CALIBRATION page in the beginning of
this manual and calibrate the LOW OHMS scale.
NOTE: Make sure the ignition switch is in the OFF position before proceeding.
B. Connect the test clips across the ballast resistor (on CHRYSLER vehicles two
tests must be made: the coil side of the ballast resistor and the module side of
the ballast resistor).
C. Observe the LOW OHMS scale.
RESULTS: | OHMS MORE THAN SPECIFICATIONS — Defective ballast resistor.
REPLACE
OHMS WITHIN SPECIFICATIONS — Ballast resistor is OK.
SPECIFICATIONS: CHRYSLER - Coil side is 0.5 OHMS and module side is 5.0 OHMS;
FORD Dura Spark Il - 1.0 OHMS.
6. ELECTRONIC MODULE GROUND TEST (CHRYSLER ONLY)
MODULE
OHM gi
6 4 HIGH AMP Fa
r4
iq 0 VOLTS 8
E DWELL %
E LOW Ge,
RPM
m
2
A. Turn the test selector to the OHMS position and put the range switch in the
LOW position. Refer to the OHMS CALIBRATION page at the beginning of
this manual and calibrate the LOW OHMS scale.
NOTE: Make sure the ignition switch is in the OFF position.
B. Disconnect the connector plug at the module.
C. Connect the test clips to pin 5 of module and ground.
D. Observe the LOW OHMS scale.
RESULTS: READING IS MORE THAN 100 OHMS — Defective module. REPLACE.
READING IS LESS THAN 100 OHMS — Module is OK.
