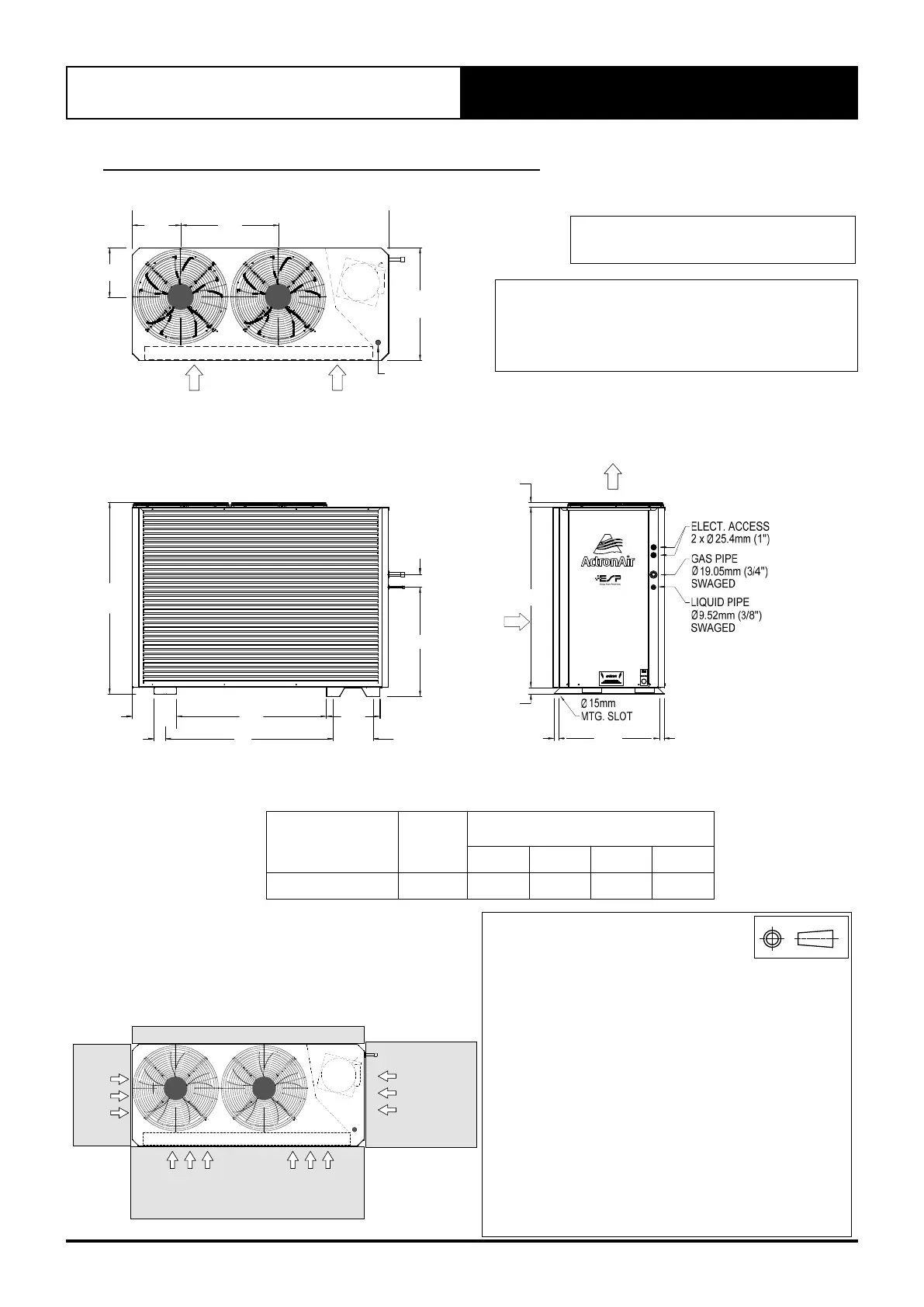

07. Outdoor Unit Dimensions / Clearances
07.01. SRD131C
UNIT MODEL
NUMBER
UNIT
WEIGHT
(kg)
CORNER WEIGHTS (kg)
A
B C D
SRD131C 146 15.0 54.1 15.0 61.9
55
OVERALL NOMINAL DIMENSION H X W X L
= 990 X 1320 X 580
PLEASE NOTE THAT UNDER ALL CIRCUMSTANCES,
CONDENSER AIR MUST NOT RECIRCULATE BACK ONTO
CONDENSER COIL. KEEP ALL CLEARANCES FREE OF
ANY OBSTRUCTIONS
575
66
990
O/A
110
115
57.5
1320 O/A
255
565
255
580
O/A
COMP
OUTDOOR COIL
OUTDOOR
AIR INLET
OUTDOOR
AIR INLET
DRAIN
POINT
OUTDOOR
AIR OUTLET
OUTDOOR
AIR INLET
925
35
30
25
25
517
(MTG C-C DIST)
770
865
(MTG C-C DIST)
270
195
(MTG C-C DIST)
585
SIDE VIEWFRONT VIEW
TOP VIEW
MINIMUM SERVICE ACCESS AREAS
AND AIRFLOW CLEARANCES
A
B
C
D
600 mm
SERVICE
CLEARANCE
(COMPRESSOR
AND
ELECTRICALS)
400 mm
SERVICE / AIRFLOW CLEARANCE
NIL - TO - MINIMUM SERVICE CLEARANCE
HEIGHT CLEARANCE
= 1500 mm
OUTDOOR COIL
COMP.
300 mm
SERVICE / AIRFLOW
CLEARANCE
NOTES:
1. Do not scale drawing. All dimensions are in mm unless specified. Refer
to corresponding unit dimensional drawing for mounting hole details.
2. Service Access Areas and Spaces for Airflow Clearances given above are
suggested minimum based on the condition that the spaces around the
units are free from any obstructions and a walkway passage of 1000mm
between the units or between the unit and the outside perimeter is
available.
3. Minimum service access areas and spaces for airflow clearances are
responsibilities of the installer, ActronAir will not be held liable for any
extra charges incurred due to lack of access and space for airflow.
4. Under all circumstances, condenser air must not recirculate back onto
condenser coil. Keep all clearance free of any obstructions.
5. Maximum External Static of Outdoor Fans is 5 Pa.
6. STACKING OF UNITS: Ensure that minimum airflow and clearances are
met.
7. Refer to Pipe Connection Details on Specifications Sheet.
8. MTG C-C DIST = Mounting Centre to Centre Distance.
9. Use M12 bolt for feet mounting.
THIRD ANGLE
PROJECTION
