Installation and Commissioning Guide
Split Ducted ESP Digital
18

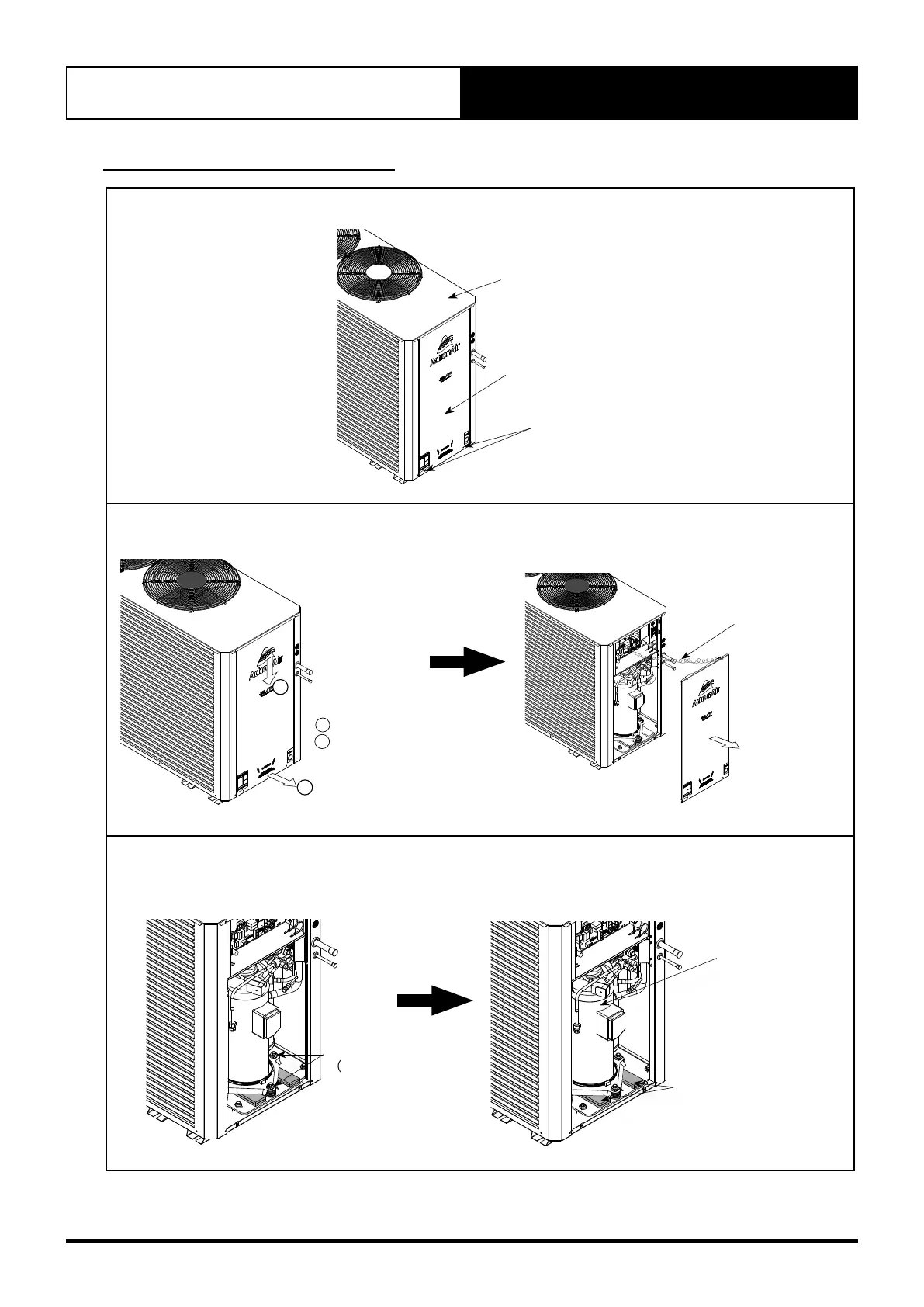

09. Outdoor Unit Preparation
Step 1. Remove mounting screws, as shown below:
ACCESS
PANEL
OUTDOOR
UNIT
MOUNTING
SCREWS
Step 2. Remove Access Panel-Electrical as illustrated below.
B
Removal Order:
Pull-Out 20mm
Pull-Down to remove
Access Panel-Electrical
A
B
A
EARTH
CABLE
Remove
ACCESS PANEL
Do not disconnect Earth Cable.
Step 3. Remove the Shipping Blocks and installing Interconnection Field Pipes.
• Loosen the set bolts that hold the compressors down onto the unit (4 pcs)
LOOSEN BOLTS
(4-pcs / Comp.)
GENTLY Push back
the Compressor
Pull away
the Shipping
Blocks
To Next Page
