08.02. Fork Lift Method
DANGER
Make sure rigging equipment, accessories and plant are sufficiently and safely capable to lift the unit in order to prevent
potential damage to property, severe personal injury or death. Please check unit weight and weight distribution points on
unit drawing dimensions section.

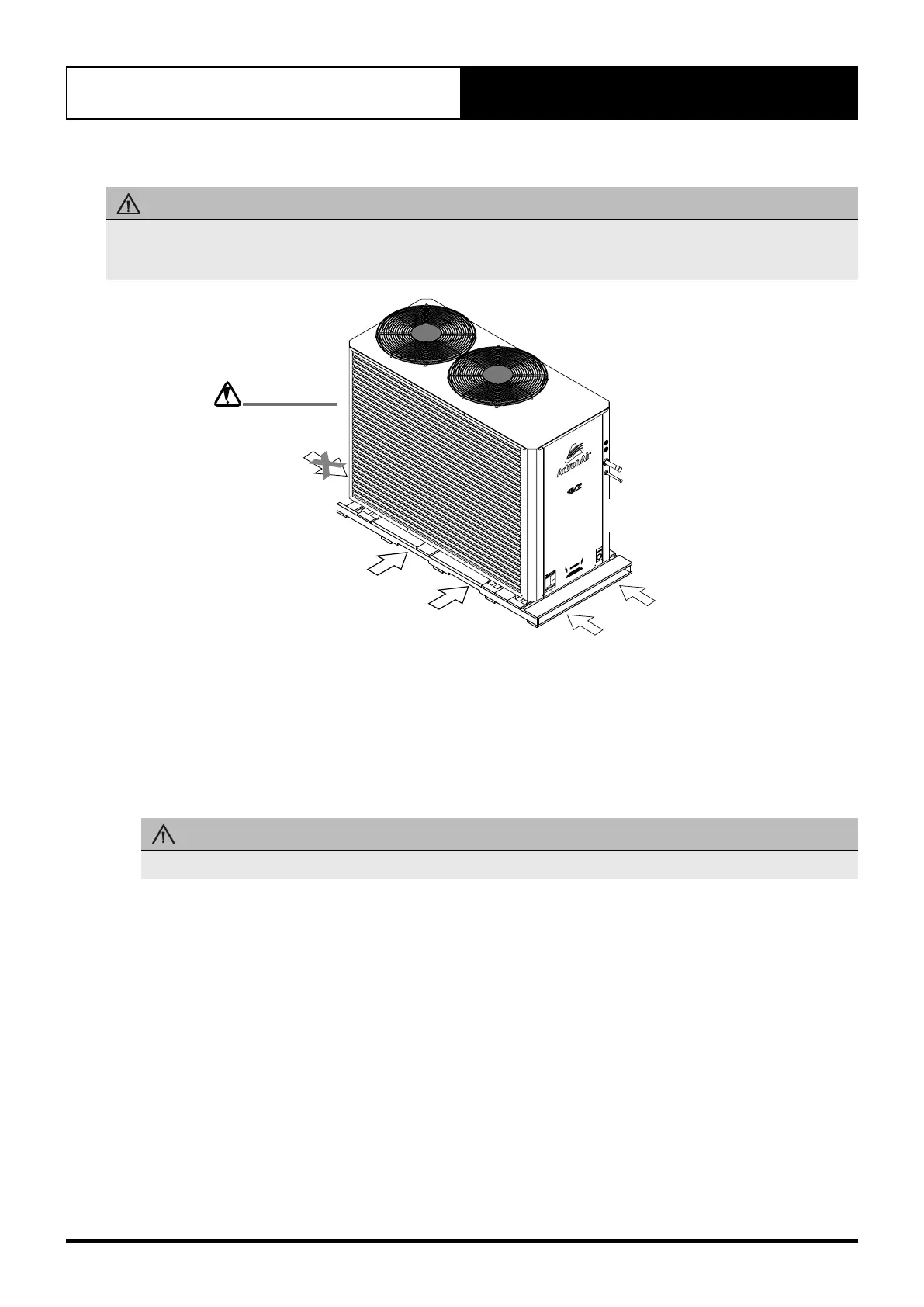

Fig. 2
INSERT
FORKLIFT
TINES HERE
COMPRESSOR
END
CAUTION
DO NOT LIFT UNIT
from this end.
INSERT
FORKLIFT
TINES HERE
Procedure:
1. To move the unit around with a forklift, insert the fork tines through the pallet, as shown in Fig. 2.
2. Only fork the unit through compressor end or side of the unit. (See illustration for location of compressor
end).
CAUTION
Length of fork lift tines must pass the unit middle section, in order to safely carry the unit.
