Installation and Commissioning Guide
Split Ducted ESP Indoor Unit

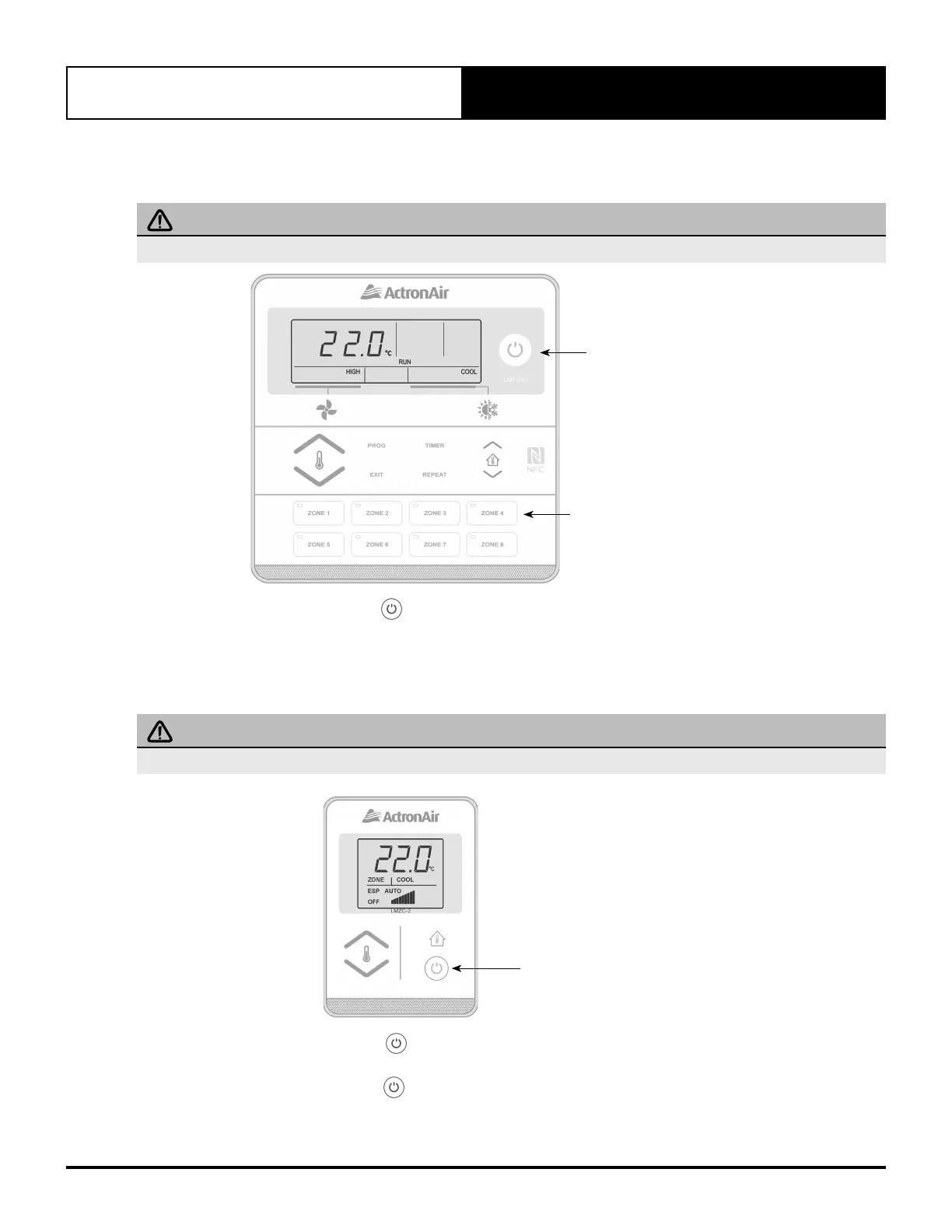

Turning Zone ON and OFF
Zone activation or deactivation via Master Wall Control.
IMPORTANT NOTE
Press any zone button to activate. Zone LED lights up indicating the zone is On.
On / Off button
Zone button
1. Turn the A/C On by pressing the button on Master Control.
2. When several zones are pressed in quick succession, a delay will occur before all zone damper blades will fully
open. Press the ZONE button to turn off the zone and the zone LED turns Off.
Zone activation or deactivation via Zone Control (ESP Ultima only).
IMPORTANT NOTE
Press any zone button to activate. Zone LED lights up indicating the zone is On.
On / Off button
1. Turn the Zone On by pressing the button on Zone Control.
2. When the Zone Control is activated display will show ESP AUTO, damper blade position indicator and operation
mode (COOL or HEAT). Press the button to turn off the zone.
