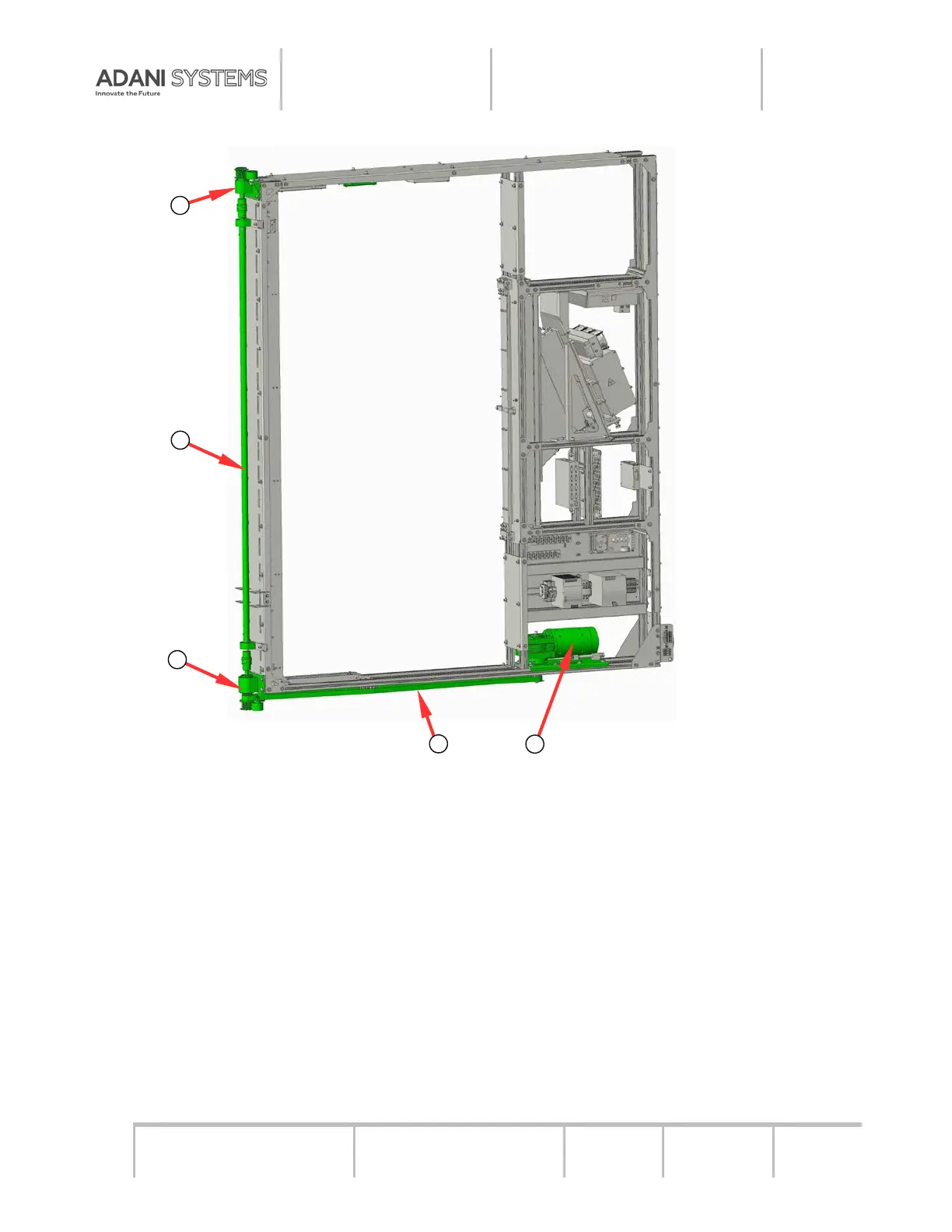

1 – The Upper Rotary Unit; 2 – Shaft; 3 – Lower Rotary Unit; 4 – Belt;
5 – The Electric Motor of The Rotary Mechanism.
Figure 3.10 – Rotary Mechanism
3.5 OPERATOR’S ACQUISITION/ANALYSIS WORKSTATION (OPERA-
TOR’S AWS)
Operator’s AWS is a software-hardware complex to control the System operation, to
acquire the full-height X-ray images of the inspected individuals, to view them and analyze.
The Operator’s AWS includes:
− Operator’s computer from which the System control is performed;
− Specialized software to ensure the System control;
