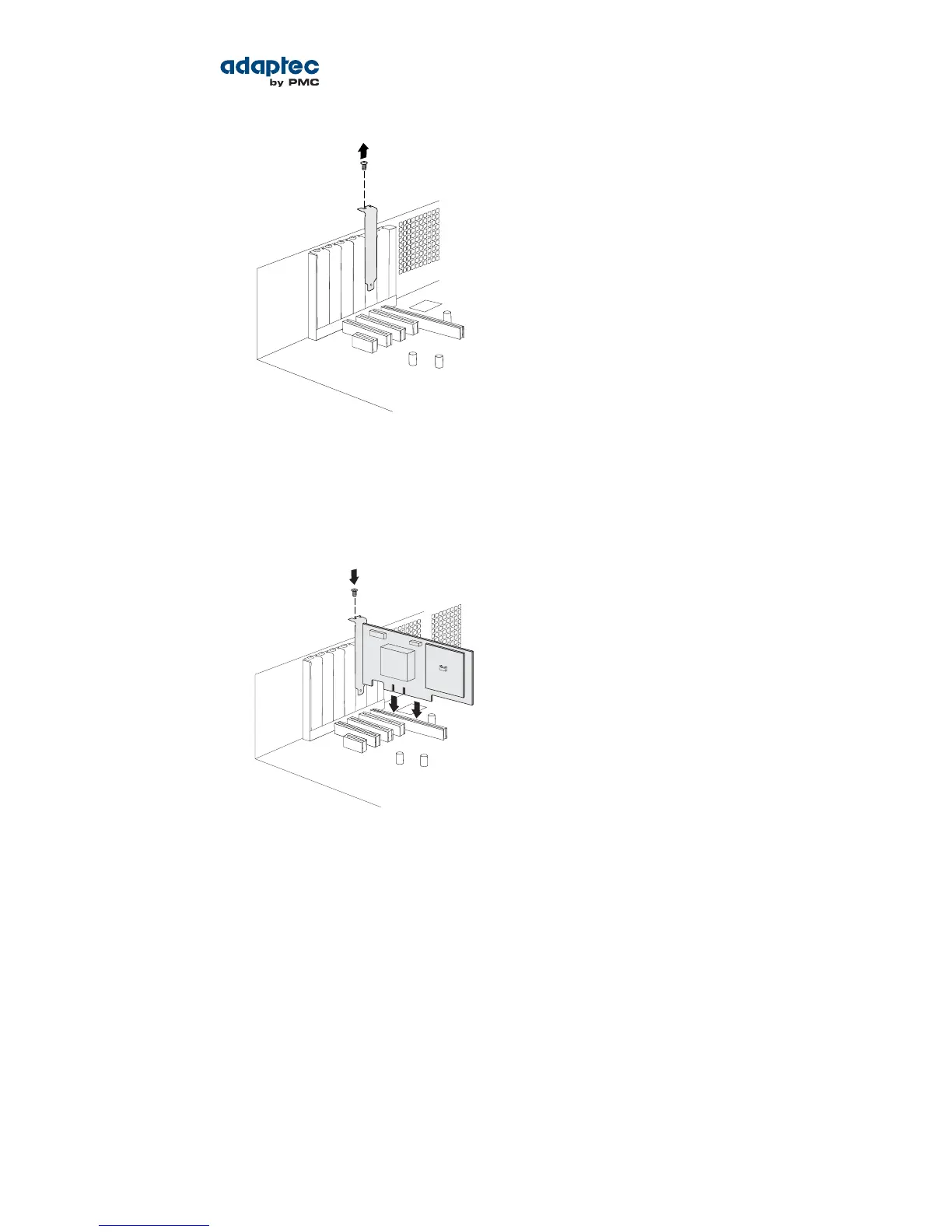

4. Insert the RAID controller into the expansion slot and press down gently but rmly until it clicks into
place. When installed properly, the RAID controller should appear level with the expansion slot.
Caution: Touch a grounded metal object before handling the RAID controller.
5. Secure the bracket in the expansion slot, using the retention device (for instance, a screw or lever)
supplied with your computer.
6. Attach the supercapacitor module to the RAID controller by inserting the connector into the socket
on the ash module daughterboard, as shown in the gure below. The connector attaches to the
socket in only one direction.
