ADB L-852D User Manual

© ADB Airfield Solutions All Rights Reserved 7
2.2.1.5 Electrical Supply ITCF LED F-Range fixture is designed to work with any IEC or FAA-compliant transformer up
to 100 W without affecting the performance or lifetime of the light fixture or transformer. See
data sheet 3033 for more details on recommended isolation transformers specified below.
1
One cord set
2
One cord set per side (2 total)
3
Fixture load does not include isolation transformer load

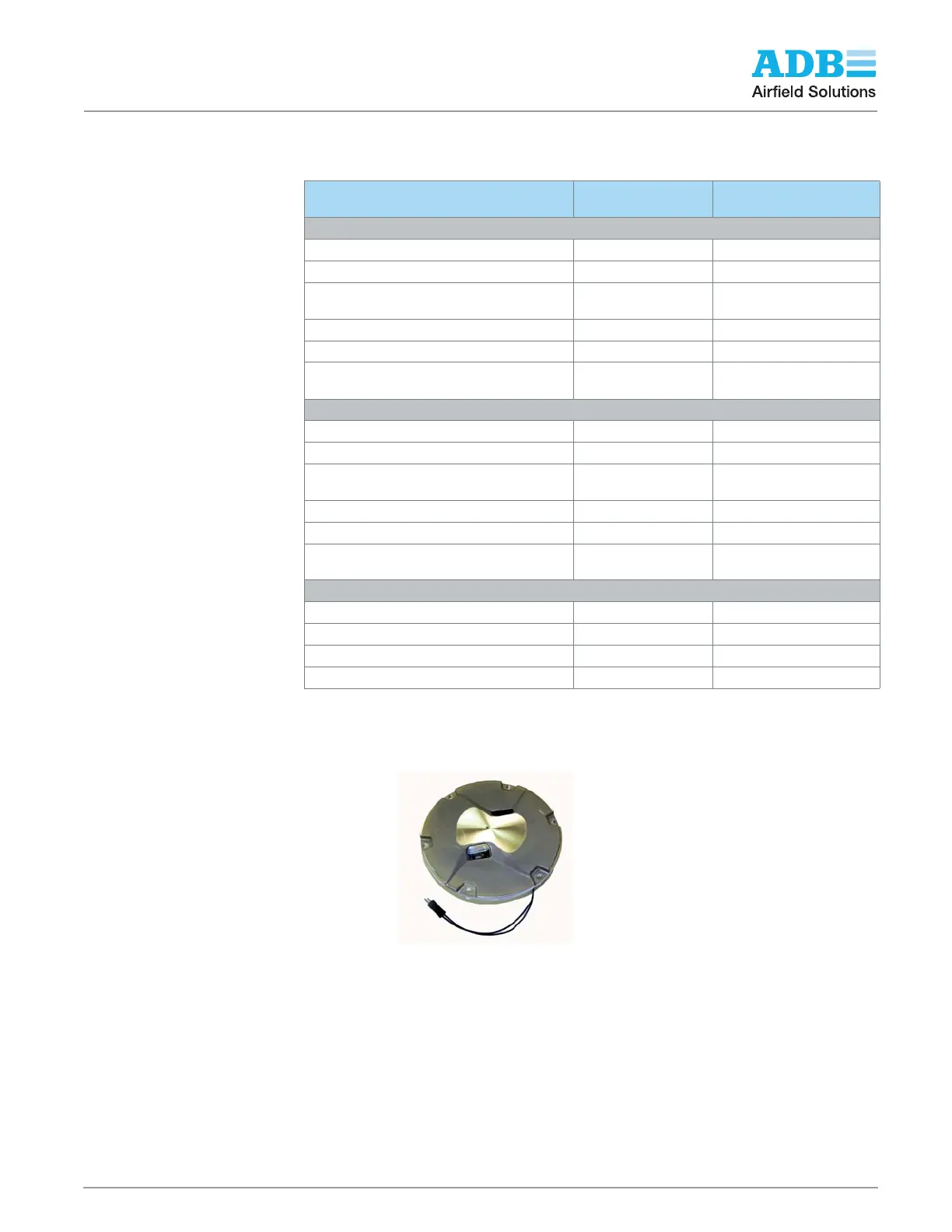

2.2.1.6 The ITCF Light Fixture
2.2.2 Typical Configuration F-Range in-pavement light fixtures are available in unidirectional, standard bidirectional and
switchable bidirectional, and are designed to provide visual guidance along the taxiway
centerlines. (see Figure 1).
The light fixtures are manufactured in accordance with FAA specification AC 150/5345-46
(current edition), Style 3: ≤ 1/4 in. (6.35mm) height above grade.
The ICAO straight and curved fixture is designed to be in compliance with ICAO Annex 14.
ITCF Fixture Fixture Load3 Isolation Transformer
L-852D(L), L-852K(L)
Unidirectional w/out heater 21 VA 20/25 W
Bidirectional w/out heater
1
27 VA 30/45 W
Bidirectional w/out heater
2
25 VA per side
(50 VA total)
20/25 W per side
Unidirectional with heater 56 VA 65 W
Bidirectional with heater
1
58 VA 65 W
Bidirectional with heater
2
45 VA
(90 VA total)
30/45 W per side
L-852C(L), L-852J(L)
Unidirectional w/out heater 14 VA 10/15 W
Bidirectional w/out heater
1
17 VA 20/25 W
Bidirectional w/out heater
2
14 VA per side
(28 VA total)
10/15 W per side
Unidirectional with heater 46 VA 30/45 W
Bidirectional with heater
1
56 VA 65 W
Bidirectional with heater
2
34 VA
(68 VA total)
30/45 W per side
L-852A(L), L-852B(L)
Unidirectional w/out heater 12 VA 10/15 W
Bidirectional w/out heater
1
16 VA 10/15 W
Unidirectional with heater 42 VA 30/45 W
Bidirectional with heater
1
46 VA 30/45 W
