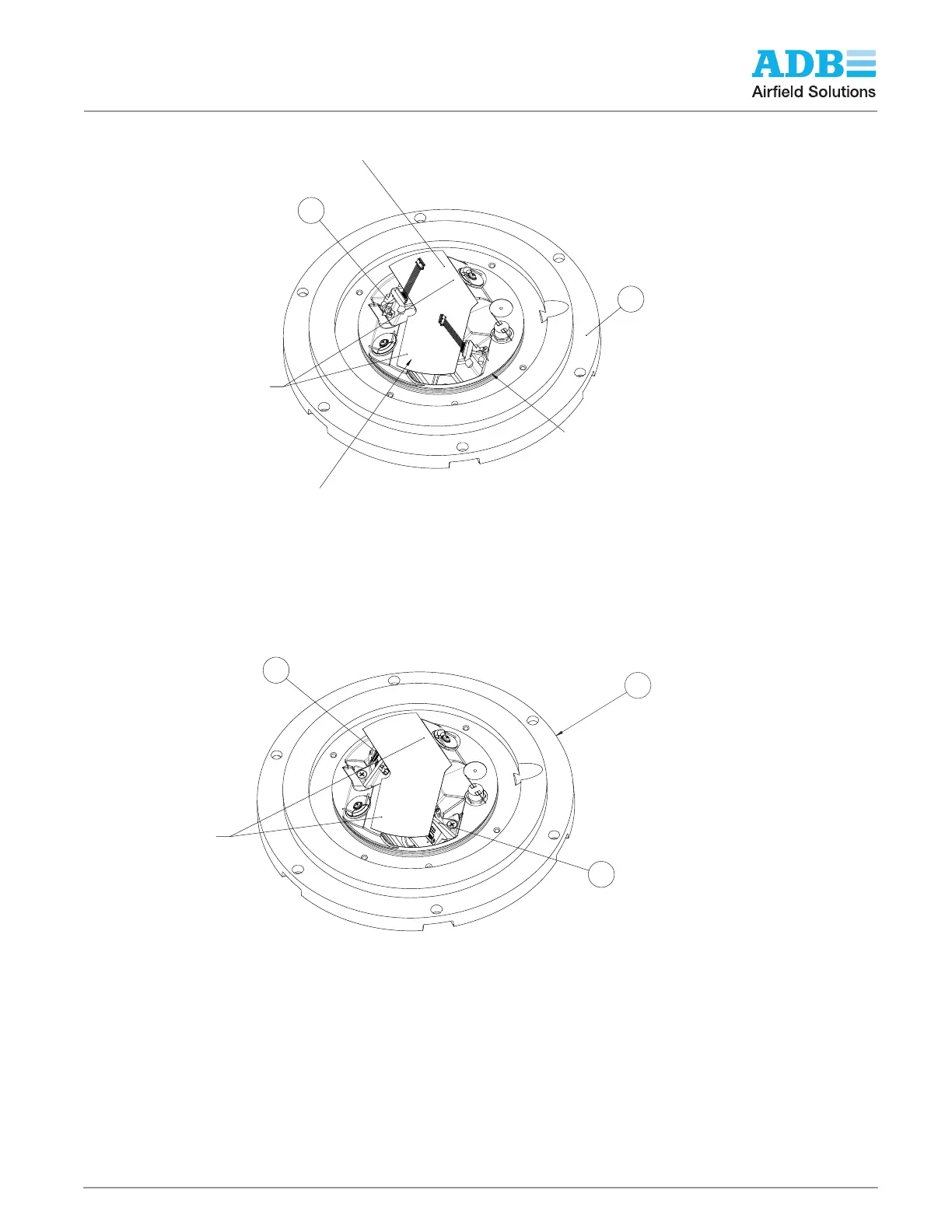

Figure 20: L-852J and K Assemblies
1
3
COLOR RIGHT
COLOR LEFT
APPLY SILICONE GREASE TO O-RING
ON TOP COVER ASSEMBLY.
TOP COVER ASSY FOR L-852J
FOR ASSY WITH ARCTIC KIT SEE SHT 3
3
TOP COVER ASSY FOR L-852K
FOR ASSY WITH ARCTIC KIT SEE SHT 3
3
1
WITH HEATER OPTION:
APPLY 2 INCH STRIP OF 61A0533
TO EACH PRISM BRAKET TO
SECURE BARRIER
WITH HEATER OPTION:
APPLY 2 INCH STRIP OF 61A0533
TO EACH PRISM BRAKET TO
SECURE BARRIER
44A6943-XX0
L852J - K COVER ASSY, 12 INCH W/CLEAR L850 A/B F-SERIES PRISM
44A6943-XX1
L852J - K COVER ASSY, 12 INCH W/F-RANGE WIDE BEAM PRISM
44A6943-XX0
L852J - K COVER ASSY, 12 INCH W/CLEAR L850 A/B F-SERIES PRISM
44A6943-XX1
L852J - K COVER ASSY, 12 INCH W/F-RANGE WIDE BEAM PRISM
48A0444-YLW-495
LIGHT ENGINE W/KEY RESISTOR REBEL LED GREEN-495
48A0444-GRN-495
LIGHT ENGINE W/KEY RESISTOR REBEL LED GREEN-495
48A0444-GRN-640
LIGHT ENGINE W/KEY RESISTOR REBEL LED GREEN-640
48A0444-YLW-640
LIGHT ENGINE W/KEY RESISTOR REBEL LED AMBER-640
