ADC EcoWash EWH-25 - Page 6

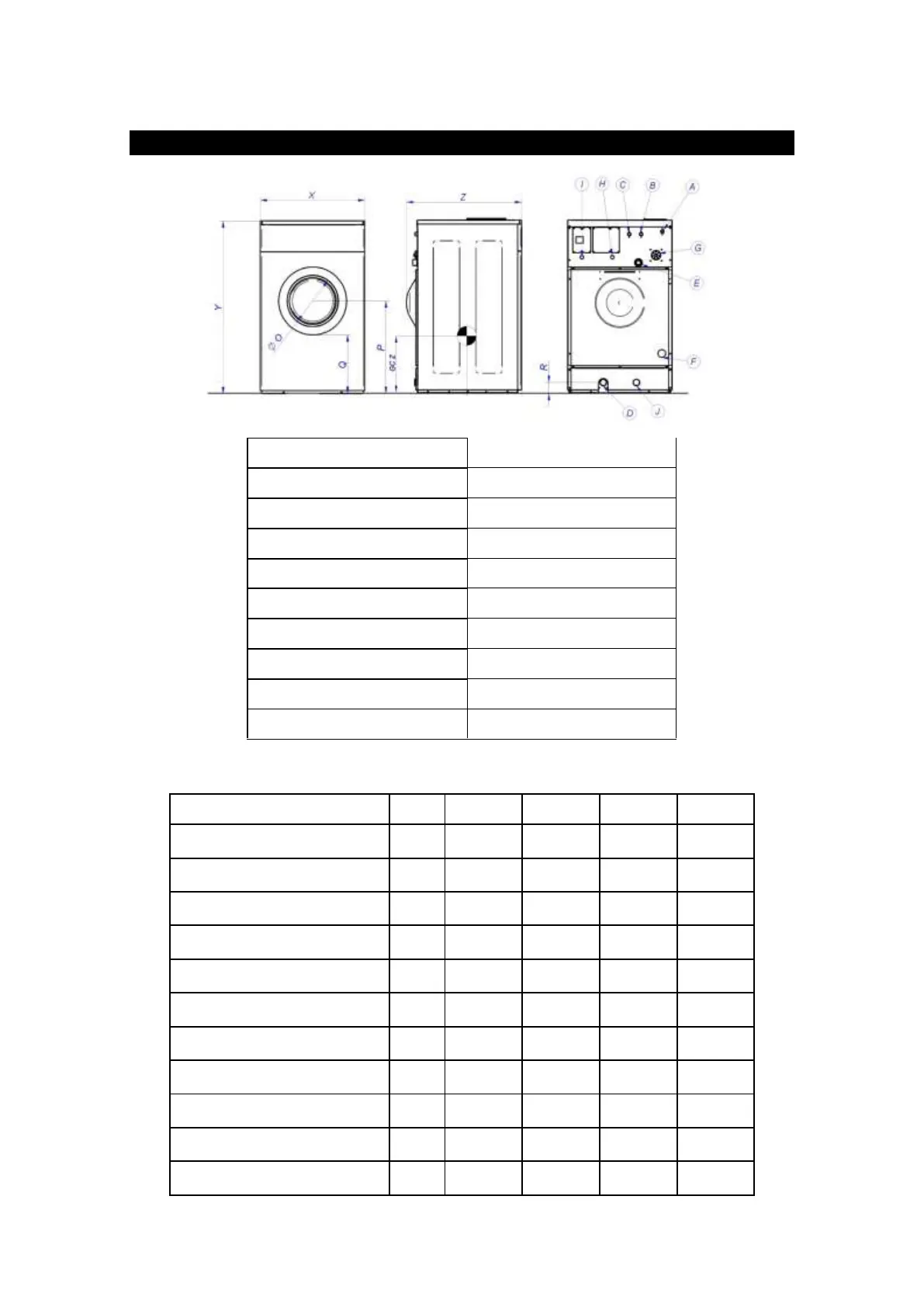

Main Dimensions
A (Cold water input)
29-58 psi (2-4 bar)
B (Hot water input)
29-58 psi (2-4 bar)
C (Aux water input)
29-58 psi (2-4 bar)
D (Drainage)
E (Steam output)
F (Steam input)
29-58 psi (2-4 bar)
G (Dispenser inlet)
H (Dispenser electric hose input)
I (Main electric hose input)
J (Drainage Nº2 – optional)
GROUP A (High spin floating washing machines)
MODEL
Unit
EWH-25
EWH-30
EWH-40
EWH-60
M (Drum diameter)
mm
Inch
532
20.94
620
24.41
700
27.56
770
30.31
N (Drum depth)
mm
Inch
425
16.73
430
16.93
470
18.5
530
20.86
O (Entrance diameter)
mm
Inch
290
11.41
373
14.7
373
14.7
373
14.7
P (Distance center of the drum)
mm
Inch
630
24.8
695
27.36
742
29.21
850
33.46
Q (Distance to the door)
mm
Inch
408
16.06
427
16.81
474
18.66
610
24.02
R (Drainage position)
mm
Inch
80
3.15
80
3.15
80
3.15
100
3.94
X (Width)
mm
Inch
692
27.24
790
31.10
885
34.84
979
38.54
Y (Height)
mm
Inch
1160
45.67
1300
51.18
1410
55.51
1562
61.5
Z (Depth)
mm
inch
825
32.48
870
34.25
915
36.02
1042
41.02
GC Y (Gravity centre)
mm
inch
424
16.69
398
15.67
464
18.27
503
19.8
GC Z (Gravity centre)
mm
inch
577
22.72
651
25.63
702
27.64
773
30.43
GR A-B-C
