6.4 Fitting the D-Bar Cuff (6021N, 6022N models)
a) Pass the end of the cuff through the flat metal
ring so that a loop is formed. The hook and loop
closure must be facing outward.
b) Place the cuff over the left upper arm so that
the tube is closer to your lower arm.

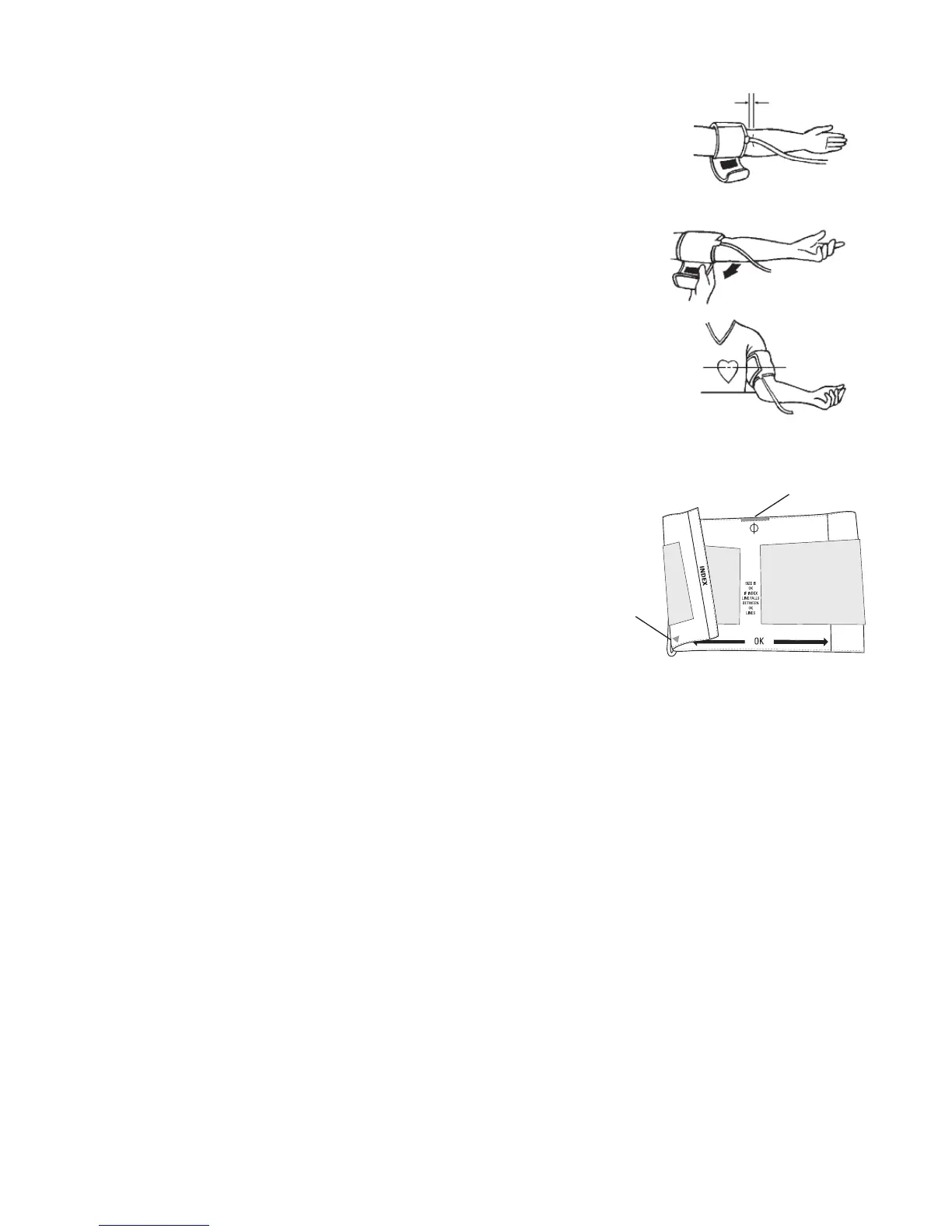

c) Lay the cuff on the arm as illustrated. Make certain
that the lower edge of the cuff lies approximately
3/4” to 1” (2 to 3cm) above the elbow and that the
tube is closer to the inner side of the arm.
Important! The small red strip (Artery Mark) on the
cuff must lie exactly over the artery which runs down the inner
side of the arm.
d) Tighten the cuff by pulling the end and close
the cuff by affixing the hook and loop closure.
To verify a correct fit, the small white triangle
on the outside of the cuff should fall between
the 2 range lines.
e) There should be little free space between the arm
and the cuff. You should be able to fit 2 fingers between your arm and the
cuff. Clothing must not restrict the arm. Any piece of clothing which does,
must be removed. Cuffs that don’t fit properly result in false measurement
values. Measure your arm circumference if you are not sure of proper fit.
Other size cuffs are available (Page 12).
f) Lay your arm on a table (palm upward) so the cuff is at the same height as
your heart. Make sure the tube is not kinked.
g) Remain seated quietly for at least two minutes before you begin the
measurement.
Comment: If it is not possible to fit the cuff to your left arm, it can also be
placed on your right arm. However, all measurements should be made using
the same arm. Comparable blood pressure measurements always require the
same conditions (Relax for several minutes before taking a measurement).
Left Arm
tube
Artery
Mark
Range
Triangle
