Effect diagram after assembling
First install the rocker arm on the A07 into the servo. When installing, the mounting hole of
the rocker arm should be aligned with the round hole on the A07. Install it at the angle
shown below.
Effect diagram after assembling

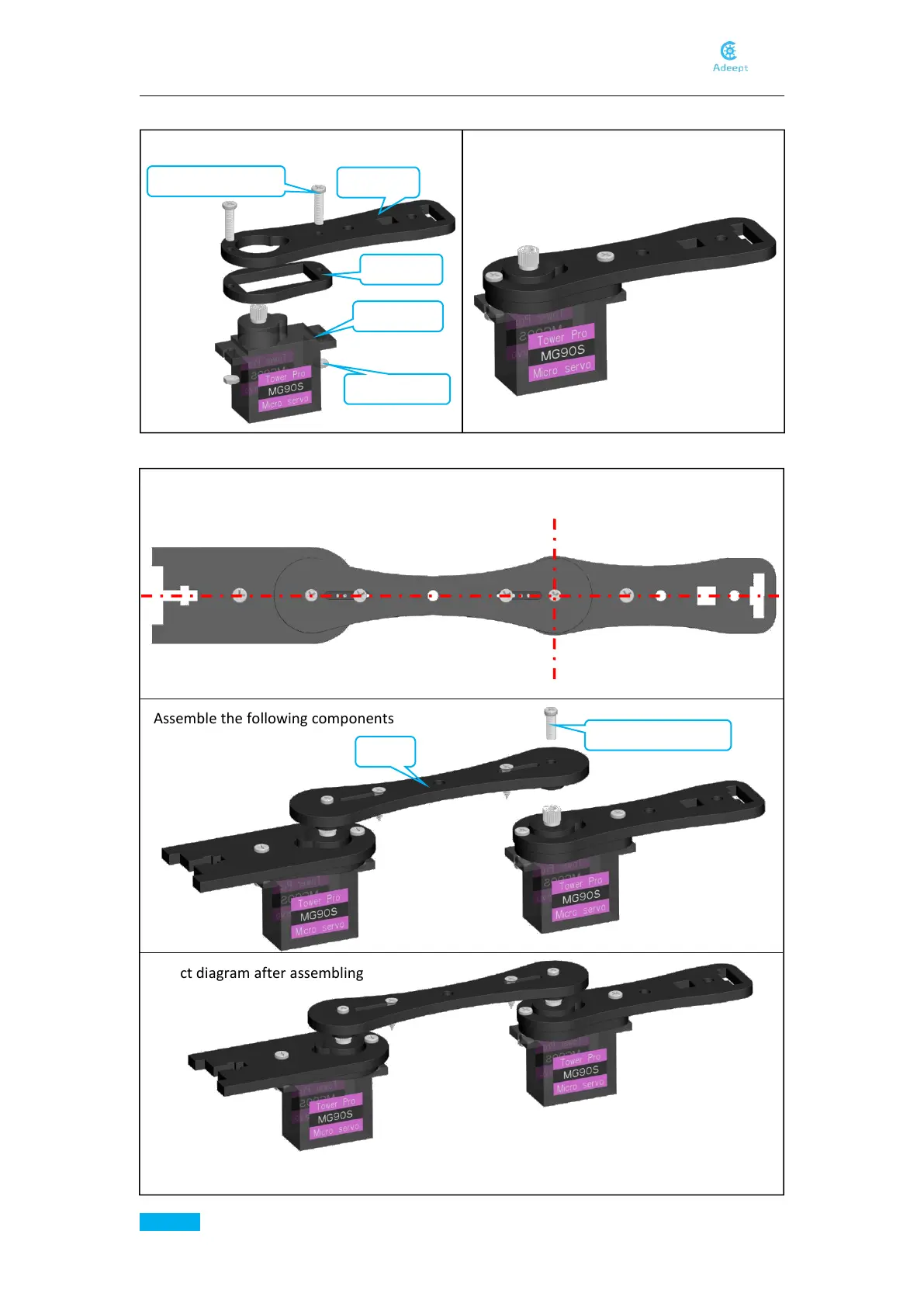

Assemble the following components
Assemble the following components
9. Fix a debugged servo to A10.
10. Then fix the other end of the A07 to the servo on the A10.
A10 x1
M2*10 Screw x2
A09 x1
Servo x1
M2 Nut x2
M2.5*7 Screw x1
A07
