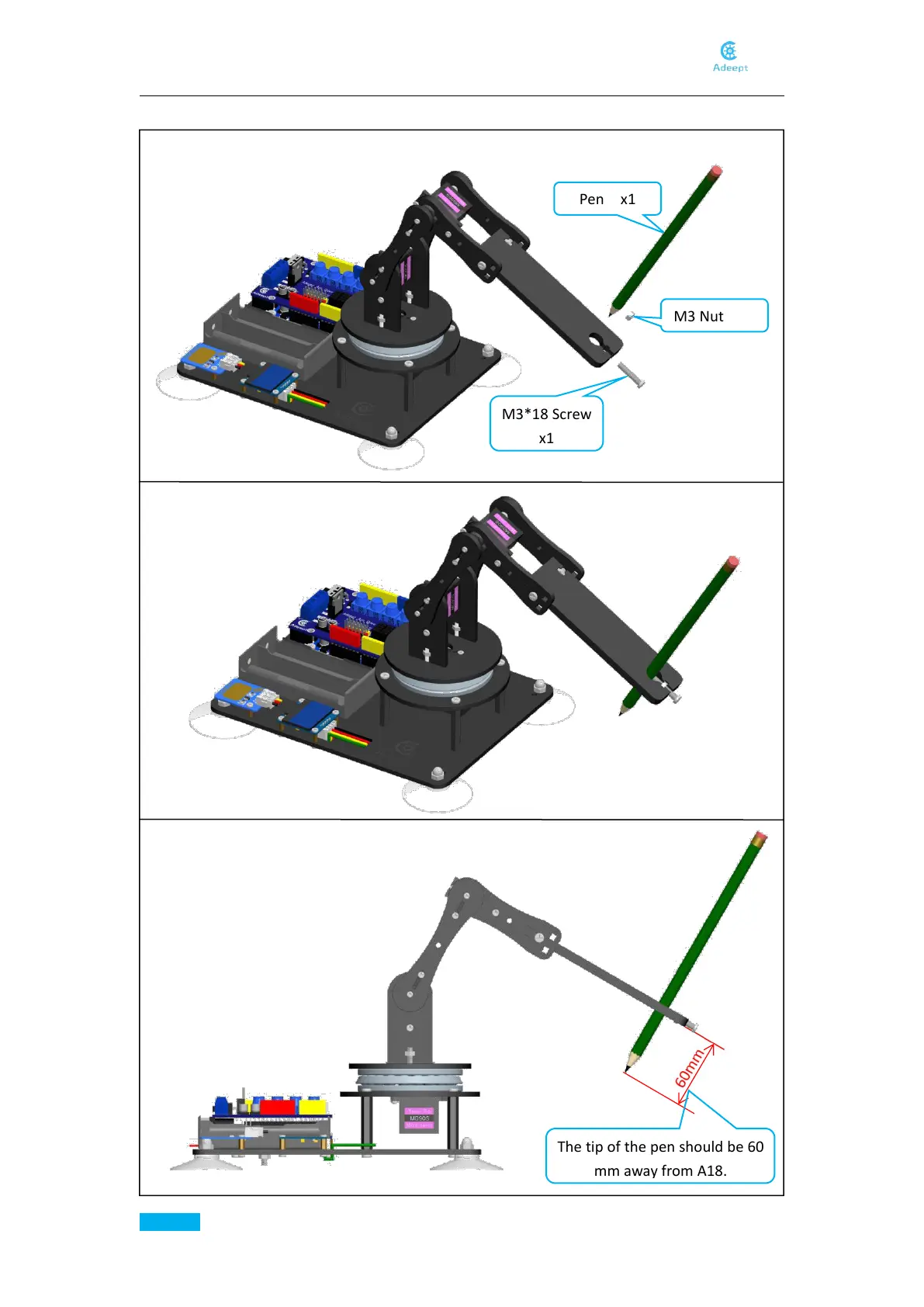

Assemble the following components
Effect diagram after assembling
Fix the pen with A18.
Pen x1
M3 Nut x1
M3*18 Screw
x1
The tip of the pen should be 60
mm away from A18.
