7. Connect A16 with A19 and A21.

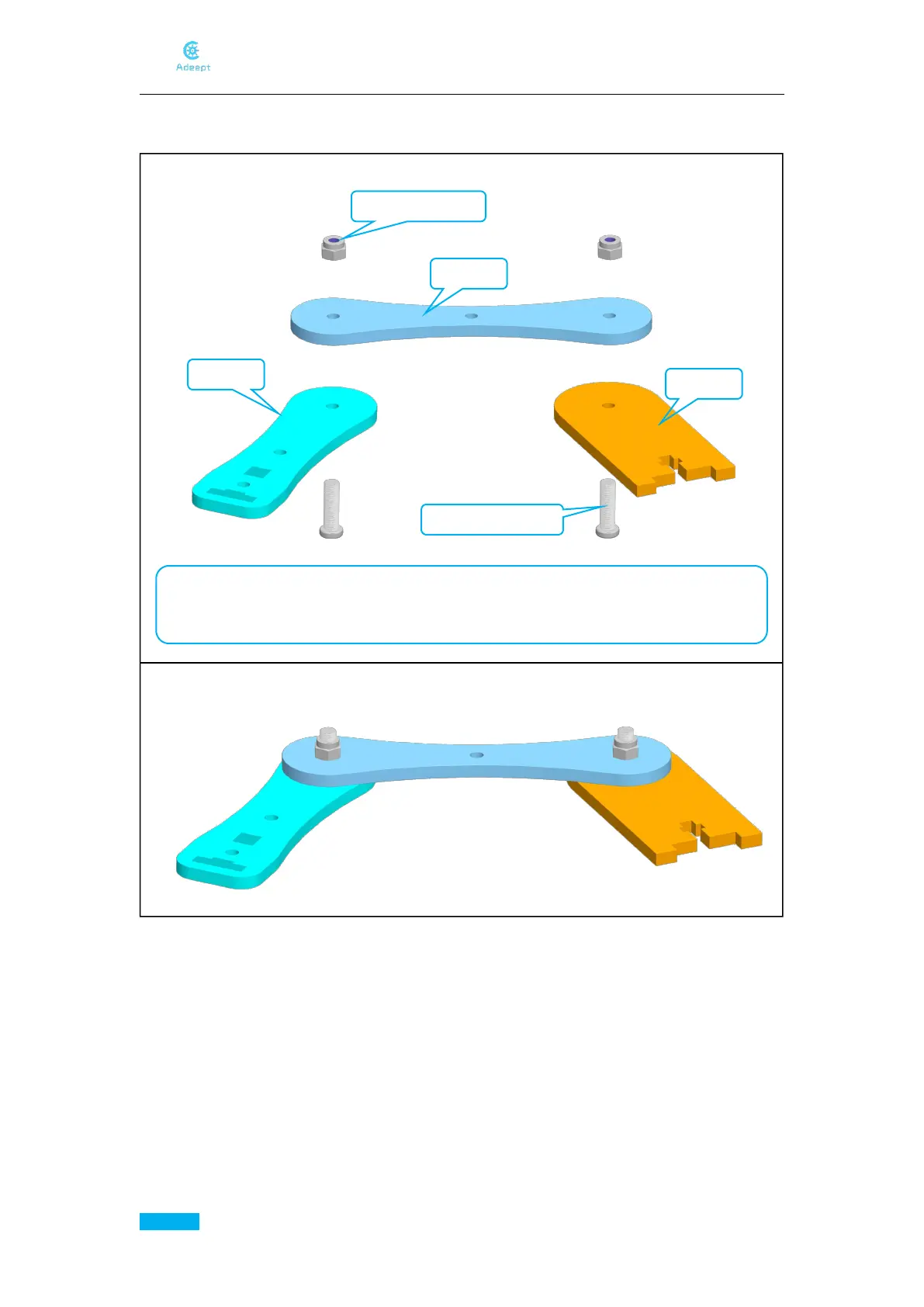

Assemble the following components
M3 Lock Nut x2
A19 x1
A16 x1
A21 x1
M3*12 Screw x2
Do not tighten between M3 Lock Nut and M3*12 Screw. Allow rotation between A16 and
A19, also A19 and A21.
Effect diagram after assembling
