ADEEPT RaspTank - Track Assembly

www.adeept.com
49

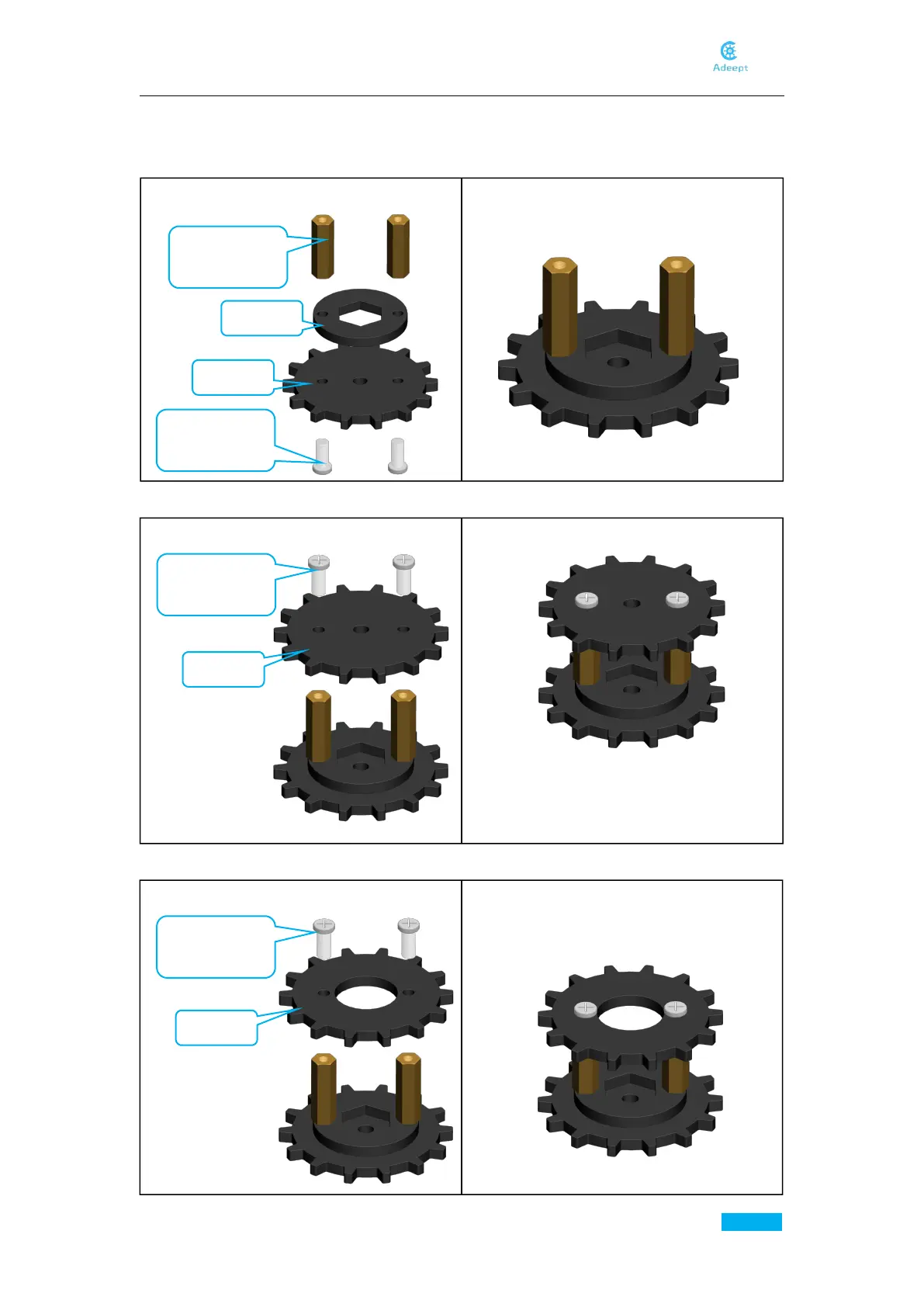

2.5. Track assembly.
1. Fix A13 to A15 (4 sets).
2. Assemble driving wheel (2 sets).
3. Assemble driven wheel (2 sets).
A13 X1
Effect diagram after assembling
Assemble the following components
M3*18 Copper
Standoff X2
A15 X1
A13 X1
M3*8 Screw
X2
Effect diagram after assembling
Assemble the following components
M3*8 Screw
X2
Effect diagram after assembling
Assemble the following components
M3*8 Screw
X2
A14 X1
