5. Install the left track of the tank.
Assemble the following components
First put the track on the driving
wheel and the driven wheel, then
pass the M3*30 Screw through the
driven wheel and fix it with the M3*6
Copper Standoff.
track x1

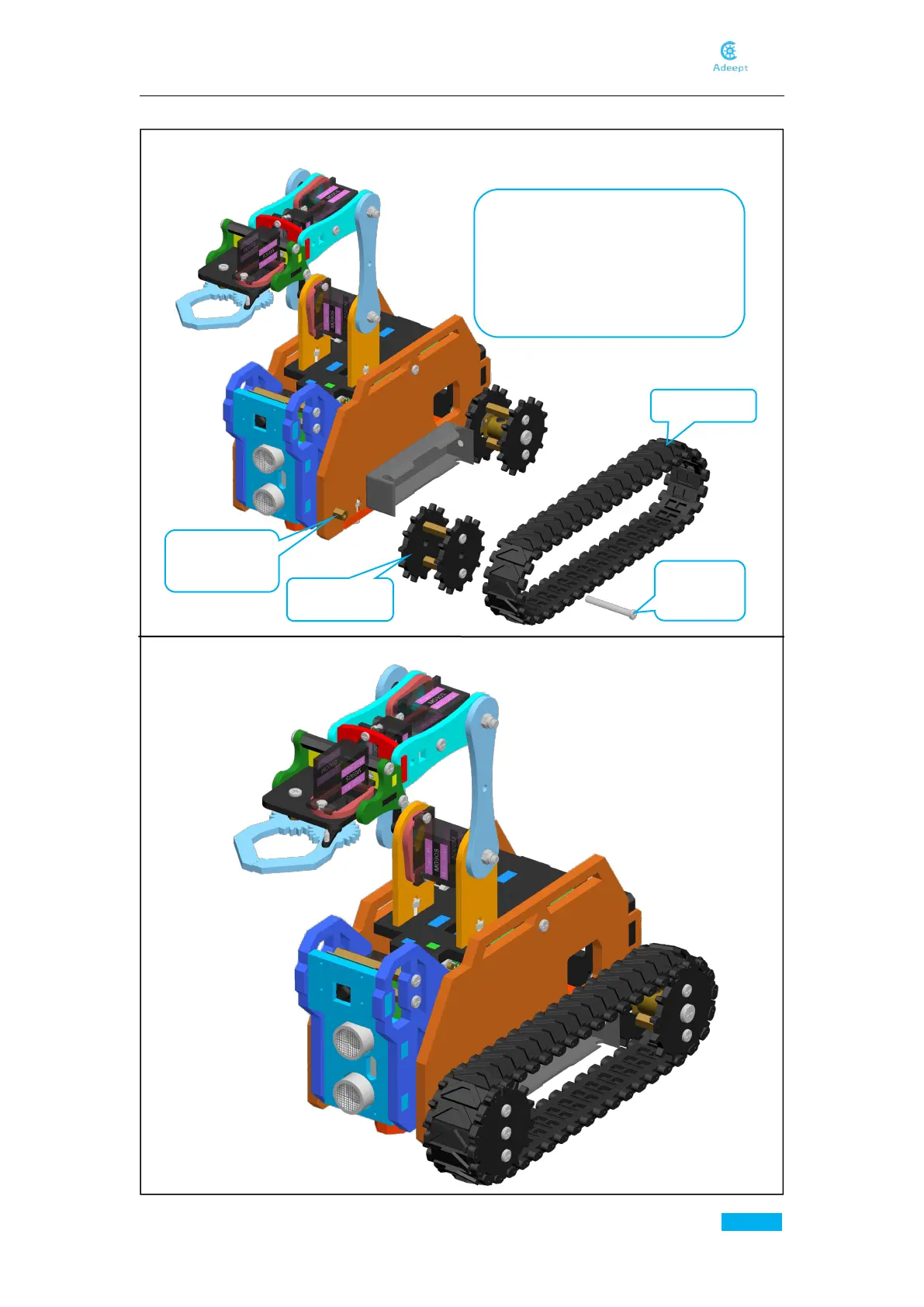

Effect diagram after assembling
M3*6 Copper
Standoff
M3*30
Screw X1
Driven wheel
