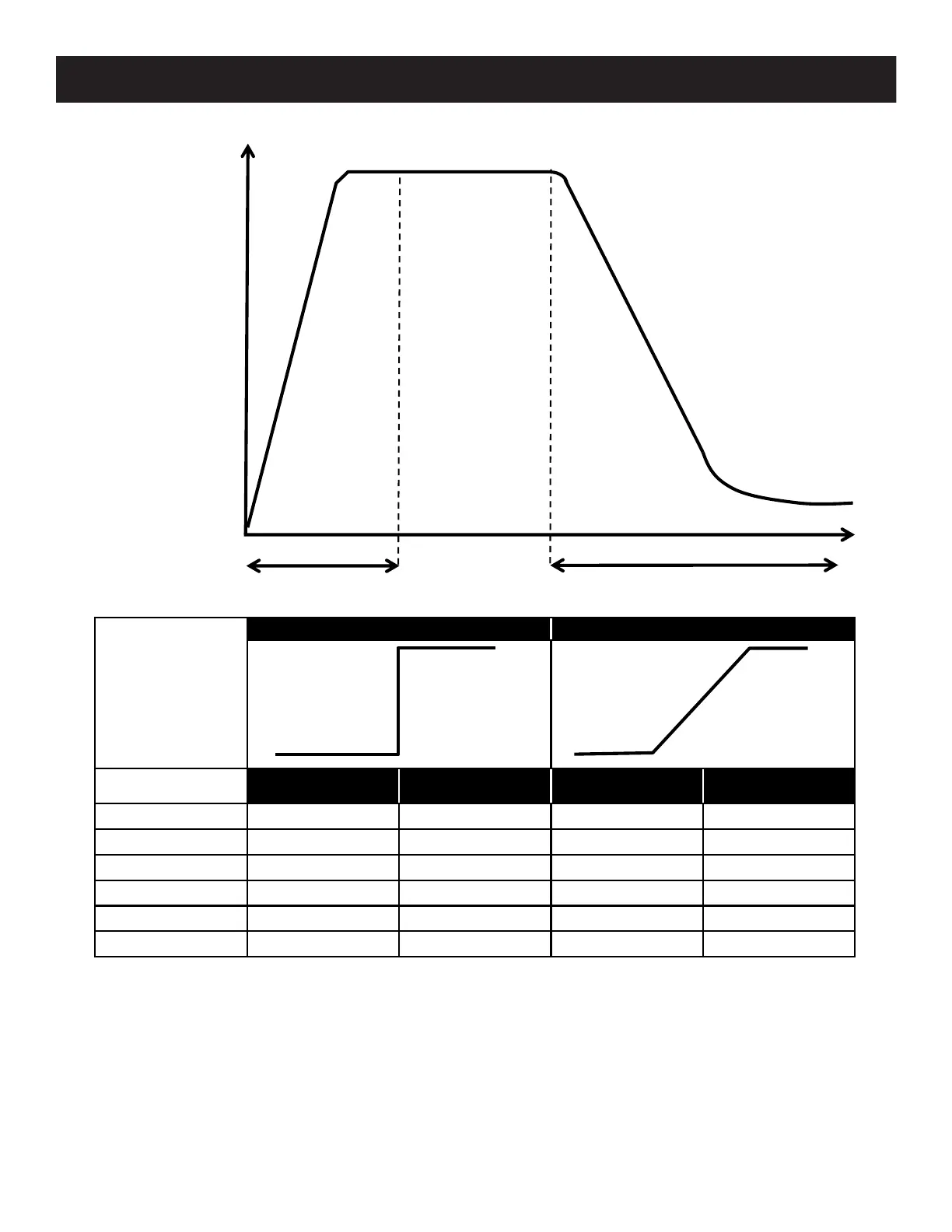

Jolt 300 Dimmer Curve Chart
DIMMER
100%
50%
10%
0%
Time (ms)
0 Sec
255 255
0 0
Standard (default) 0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
Stage 2
0 1100 0 1660
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
Rise Time Down Time
Dimming Curve
Ramp Effect
0 sec Fade Time
1 sec Fade Time
