12

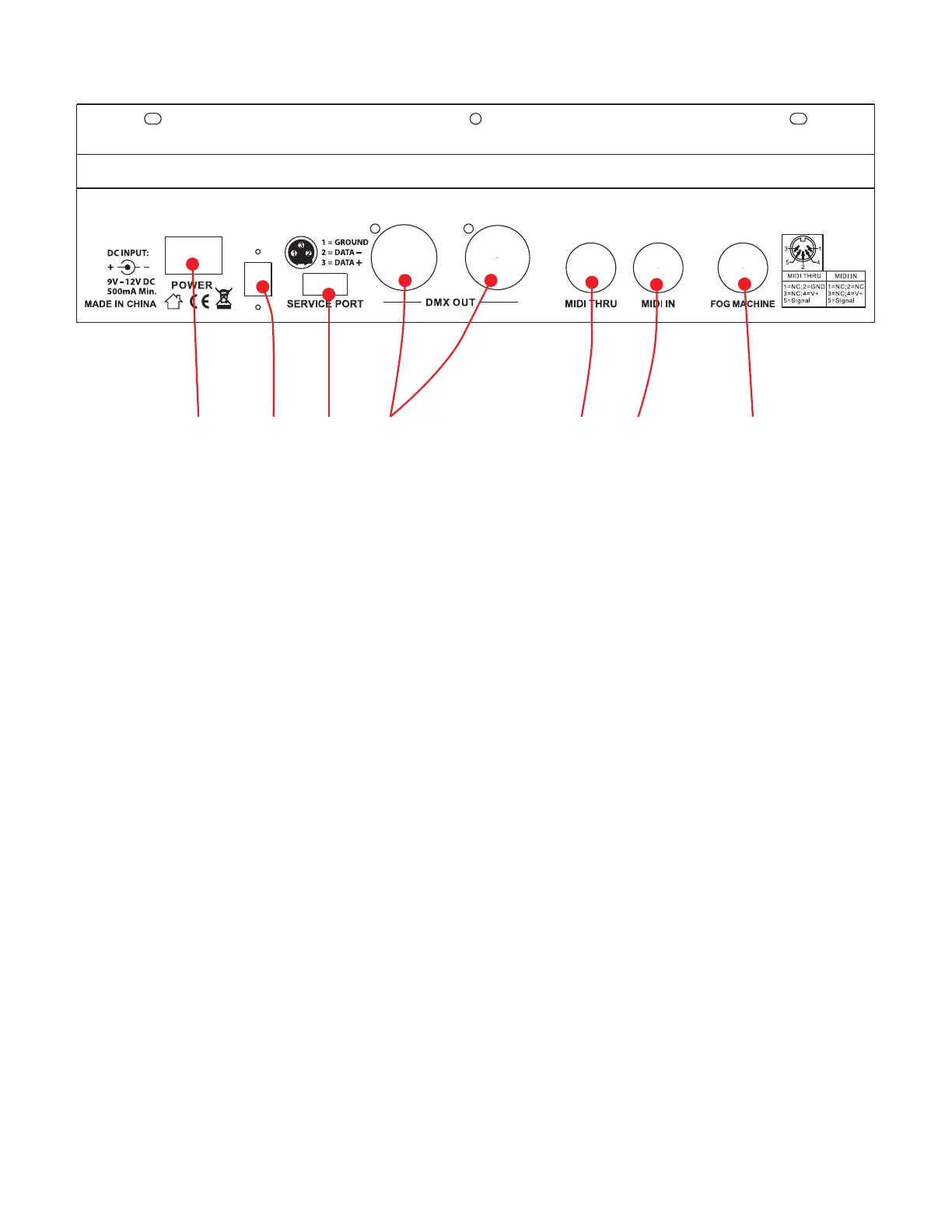

REAR PANEL CONTROLS AND FUNCTIONS
18. POWER SWITCH: This switch is used to turn the unit’s main power on or off.
19. SERVICE PORT: USB slot for updating device software or performing repairs.
20. DMX OUT: These XLR jacks are used to send DMX data to your DMX dimmer packs or other
DMX xtures.
21. MIDI THRU: This jack is used to parallel an incoming MIDI signal through to another MIDI device.
22. MIDI IN: This jack receives an incoming MIDI signal from external MIDI controller or keyboard.
23. FOG MACHINE CONNECTOR: Use this connection to connect a compatible ADJ fog machine.
This eliminates the need for separate, dedicated fog machine controller.
24. DC POWER INPUT: This jack is used to connect to external power supply. Only use the included
DC 12~20V, 500 mA minimum power supply. If it replacement of the original power supply is re-
quired, only use an approved ADJ power supply. Contact ADJ service or an authorized retailer for
assistance with obtaining a replacement.
18 19 20 21 22 2324
