ADJ Products, LLC - www.adj.com - Boom Box FX2 User Manual Page 12

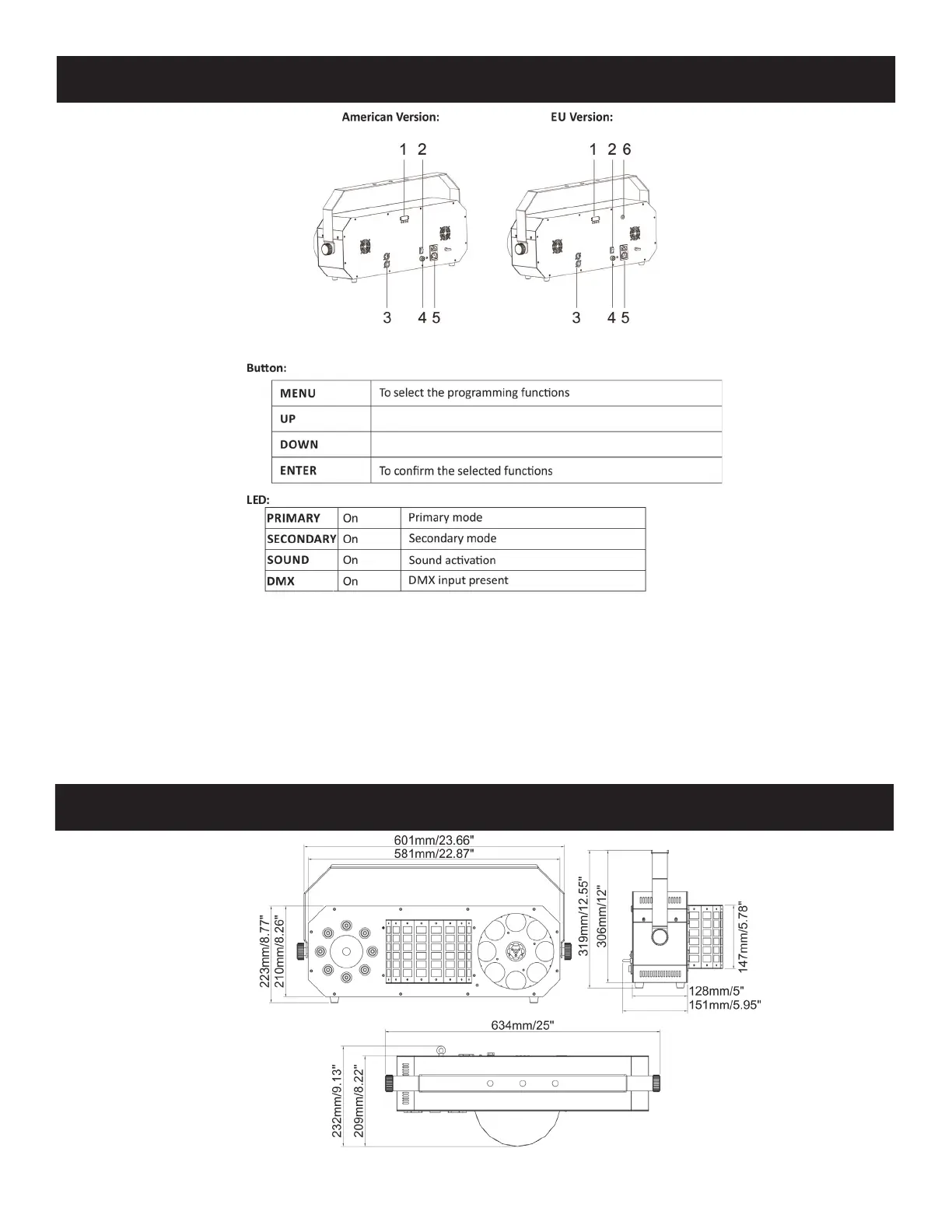

Boom Box FX2 Rear Layout
1. Function Display: Used to show the various menus and selected functions. (See tables above)
2. On/O Switch: Used to turn the unit on/o.
3. DMX IN/OUT: For DMX-512 linkage, use a 3-pin XLR cable to connect units together.
4. FUSE (T2A): Protects the unit from damage of over current.
5. POWER IN/OUT: Used to connect to the power outlet or the next xture.
6. On/O Key for Laser: Turns the laser on/o. (Only for EU version)
Boom Box FX2 Dimensional Drawing
To go backward in the selected functions
To go forward in the selected functions
To Next Page
