FILM IN: Front film sensor, when it senses film, it will turn grey, otherwise it will be red.
FILM COLLECT: The rear film sensor, when the film is sensed, it will turn grey, otherwise it will be red.
BEPOWDER: Shaker powder position, film and powder weight sensor, when the powder on the film
is heavy enough, it will turn grey, otherwise it will be red.
SHAKING POWDER: The working status of the dusting motor is working, if it is grey, it means the
dusting motor is running, and red means it is not running.
BELT: The working status of the mesh belt motor, if it is grey, it means that the mesh
belt motor is running, and red means it is not running.
BOTTOM HEAT: The working status of the bottom heating tube, if it is grey, it means the bottom
heating tube is on, and red means it is off.
FAN: The working status of the drum suction, if it is grey, it means the drum suction is on,
and red means it is not off.
LINK: Link mode status, if it is grey, it means Link mode is on, and red means it is off.
DRY POWDER: The working status of the powder box heating, if it is grey, it means that the powder
box heater is working, and red means it is not working.
ROLL: The working status of the take up bar roller, if it is grey this means that the film is sensed, and red
means it is not sensed.
DUSTING: The working status of the dusting, if it is grey, it means the dusting roller is rotating, and red
means it is not rotating
DRYING: The working status of the pre heating board, if it is grey, it means that the pre heating board is
on, and red means it is off.
HEAT: The working status of the upper heating lamp, if it is grey, it means that the upper heating lamp
is on, and red if it is off.

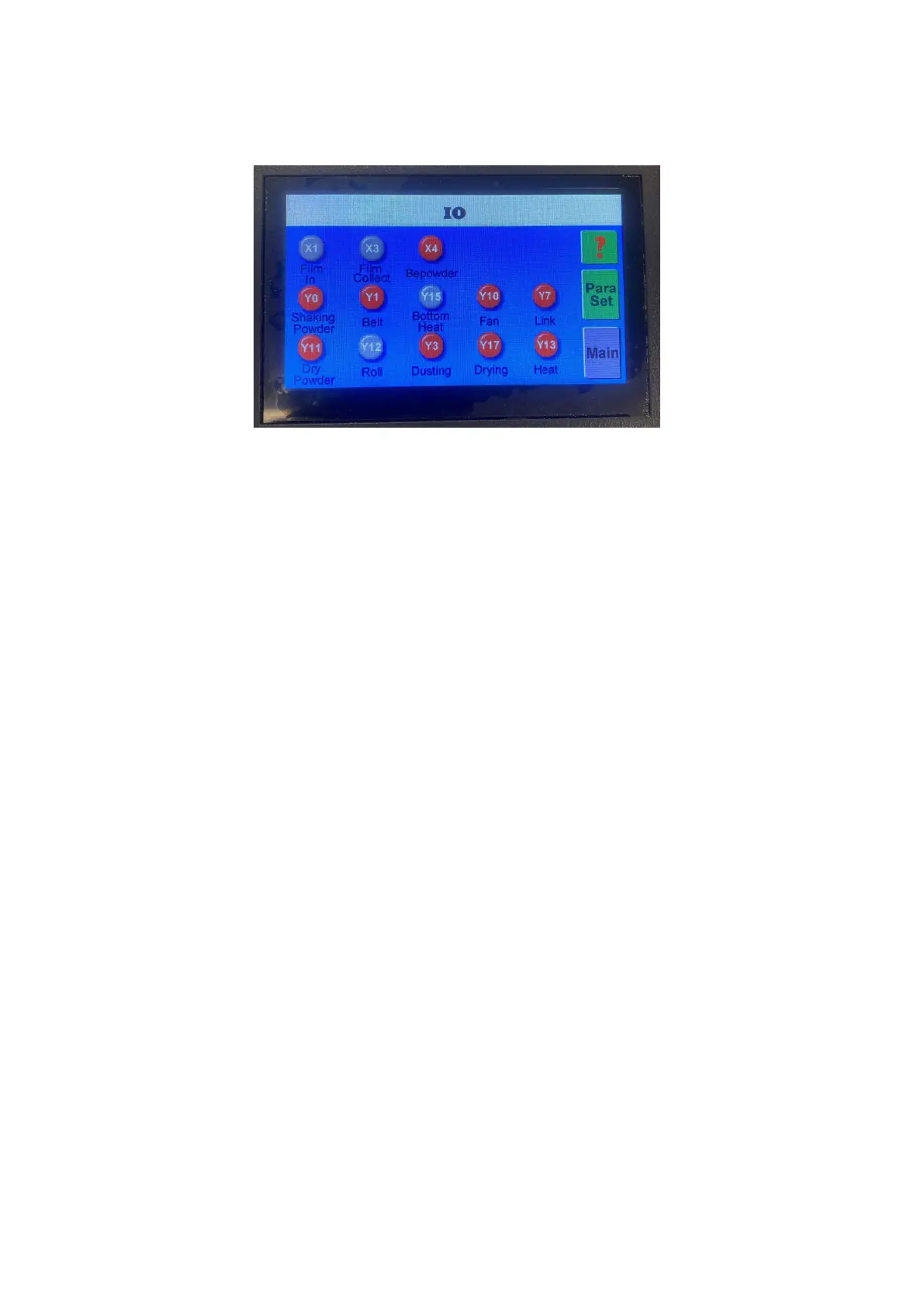

IO FUNCTION PANEL
9.
page 14
