13.
FILTRATION SYSTEM
page 19

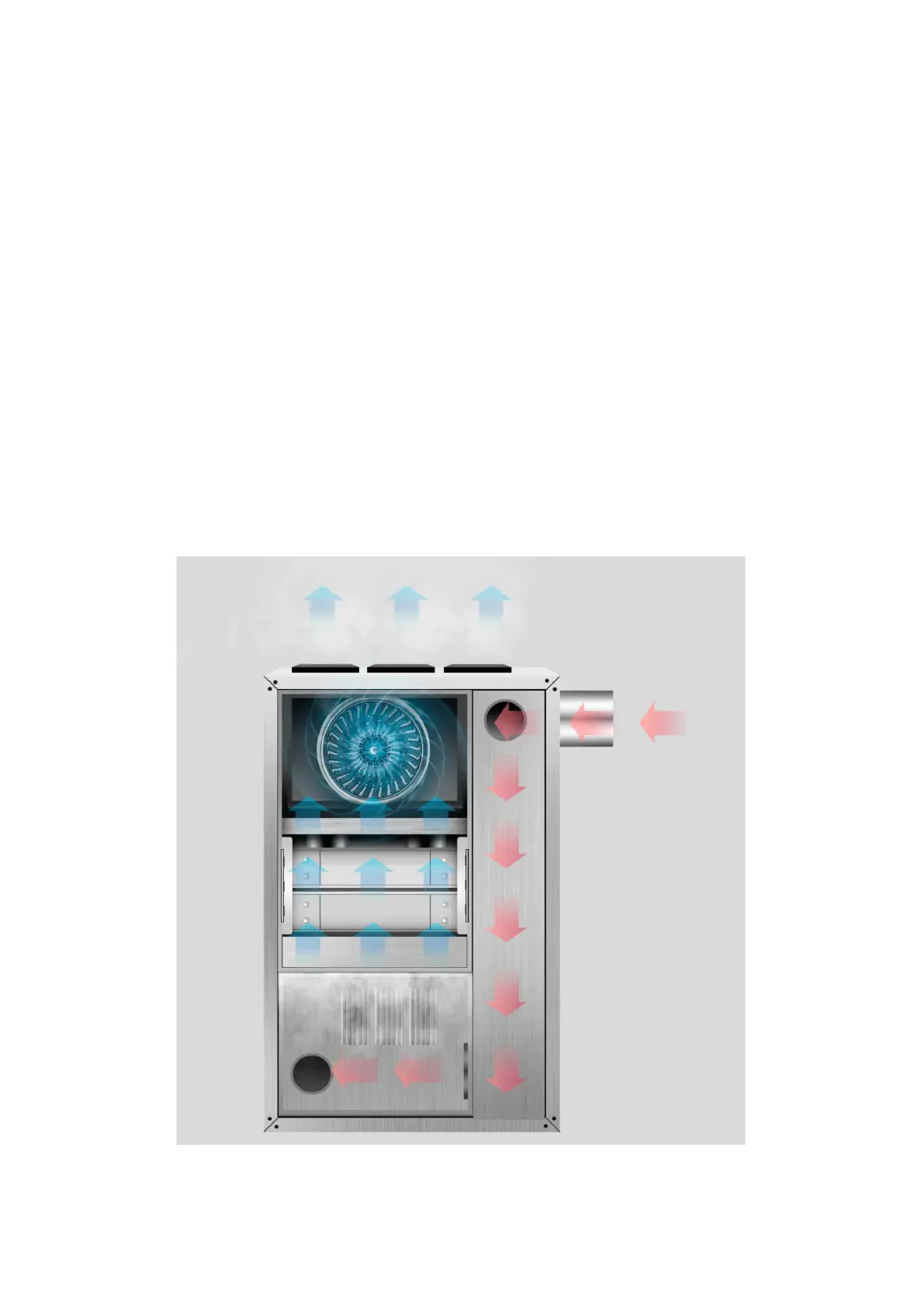

The shaker is fitted with a three-stage filtration system.
Stage 1:
Air is drawn in through the upper exhaust inlet from the hood of the dryer, and passed down
into the cooling zone at the bottom, where it will separate the oil from the exhausted air.
Stage 2:
The air will then pass through the carbon filter element, which will filter out fine particles.
Stage 3:
Finally the air will enter the glass fibre filter element, here any last part of impurities will be
absorbed, and the purified gas will be discharged by the top fans.
