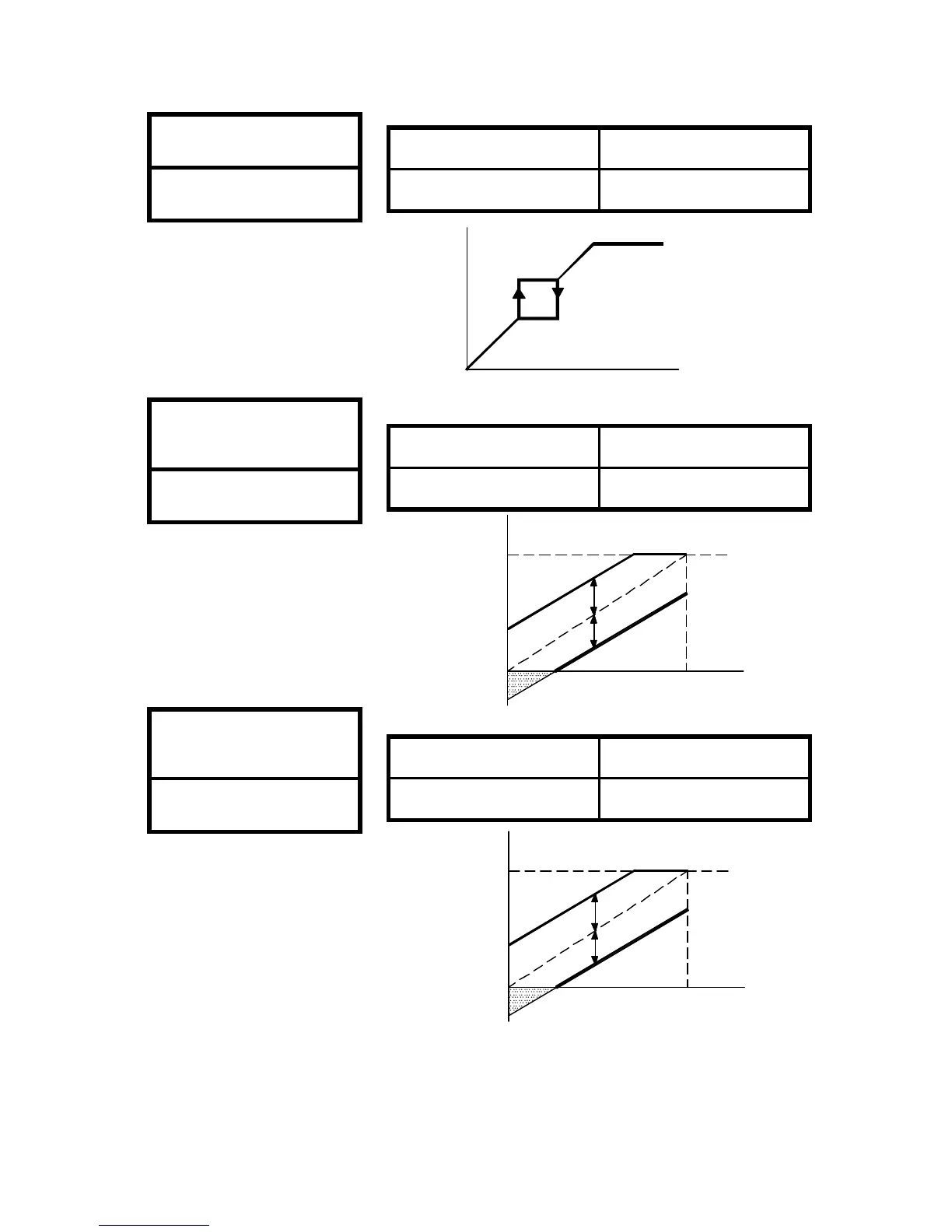

Jump range
CD32
V
Speed command
Setting Range 0.50 ~ 3.00HZ
Default Value 0.50HZ
Frequency
reference bias
CD33
Move Frequency bias with
same gradient.
Frequency in the range of
“- “ bias, motor is stop.
Freq. ref. bias
direction
CD34
0 = Positive “+ “
1 = Negative “-“
Polarity setting for (CD33)
frequency referance bias.
Analog input
V
100%
+
-
+Bias
-Bias
0
Analog input
V
100%
+
-
+Bias
-Bias
0
Setting Range 0.00 ~ 400.00HZ
Default Value 0.00
Setting Range 0 or 1
Default Value 0
