11. APPLICATION

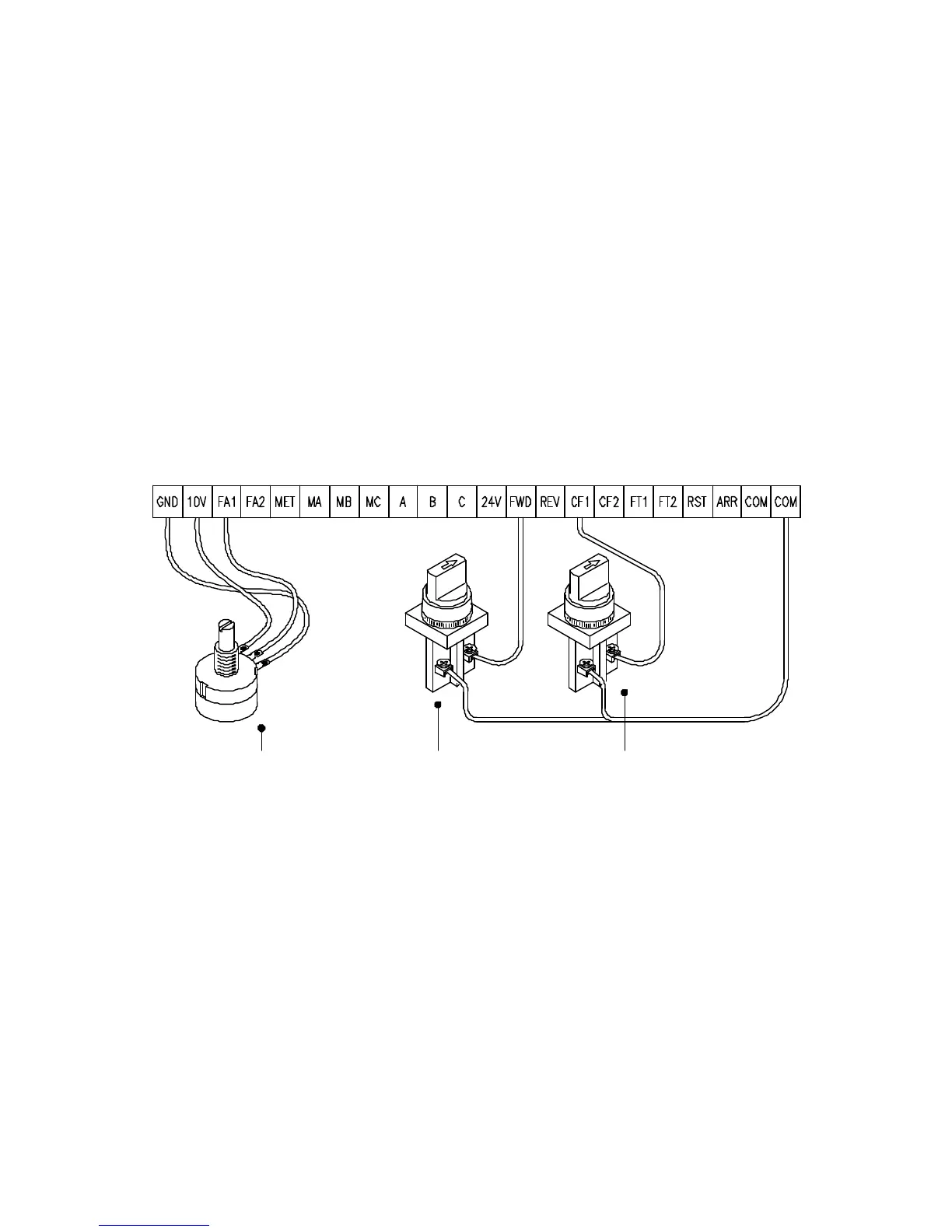

EXAMPLE 01 : Use 2 external variable resistor for multistage speed
command input.
DESCRIPTION :
CD10 = 1 ( Use frequency knob for 1st speed setting)
CD12 = 1 ( External command)
CD44 = 8 ( 2nd speed signal enter from FA1)
SW1 = RUN / STOP
SW2 = 1st / 2nd speed
85
RUN/STOP2nd speed setting
1st/2nd speed select
