EXAMPLE 02 : Normal / Jog operation
DESCRIPTION :
CD00 = Normal speed ; User setting
CD04 = Jog speed ; User setting
CD12 = 1 ; Terminal command (For External)
CD42 = 1 ; Define FT1 Terminal = JOGF function
CD43 = 2 ; Define FT2 Terminal = JOGR function

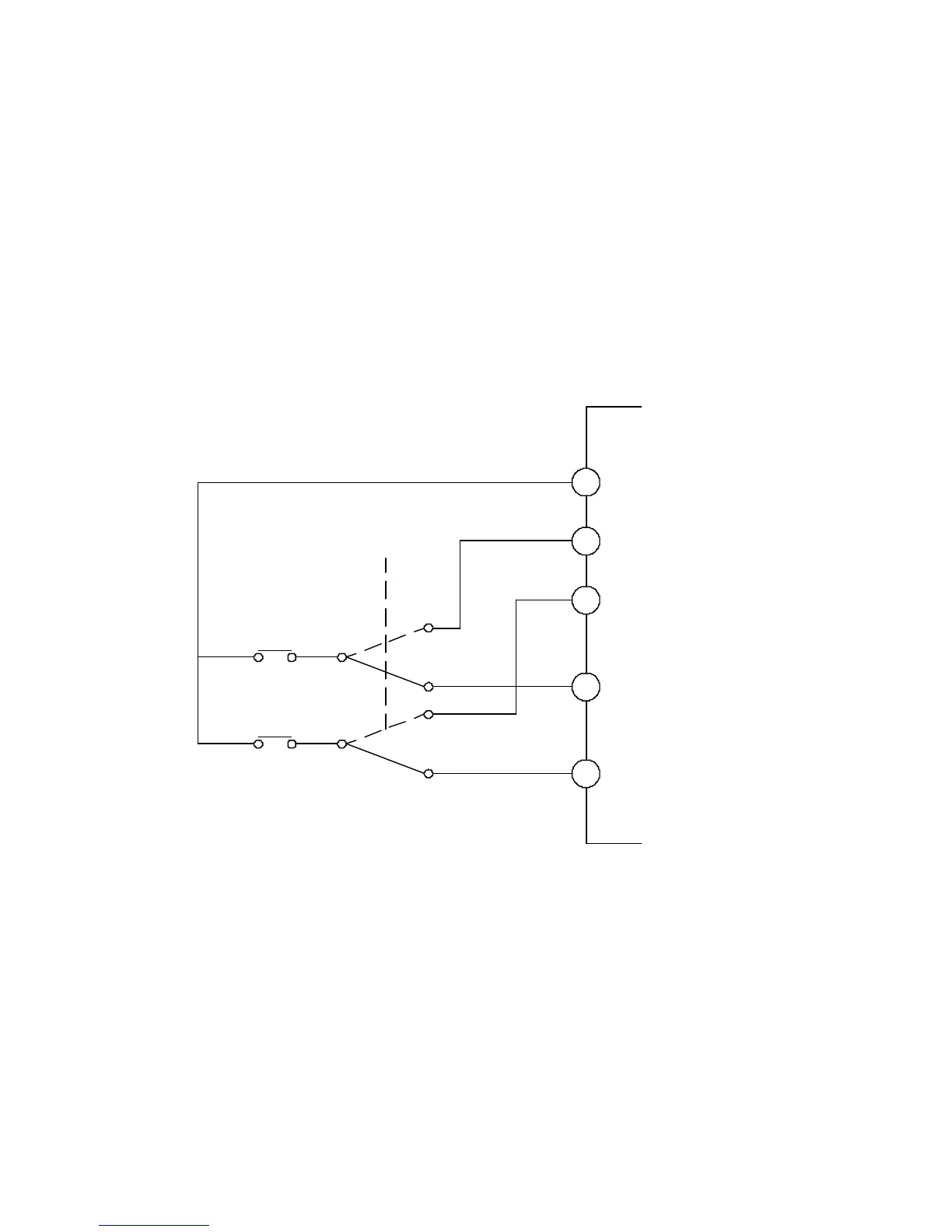

NORMAL / JOG
S1 = FWD SW
S2 = REV SW
S3 = Normal/JOG select SW
86
21
13
14
17
18
S3
S1
S2
COM
FWD
REV
FT1(JOGF)
FT2(JOGR)
