Adleepower MS2-107 - Wiring and System Connection; Main Circuit Wiring

17
(5) WIRING

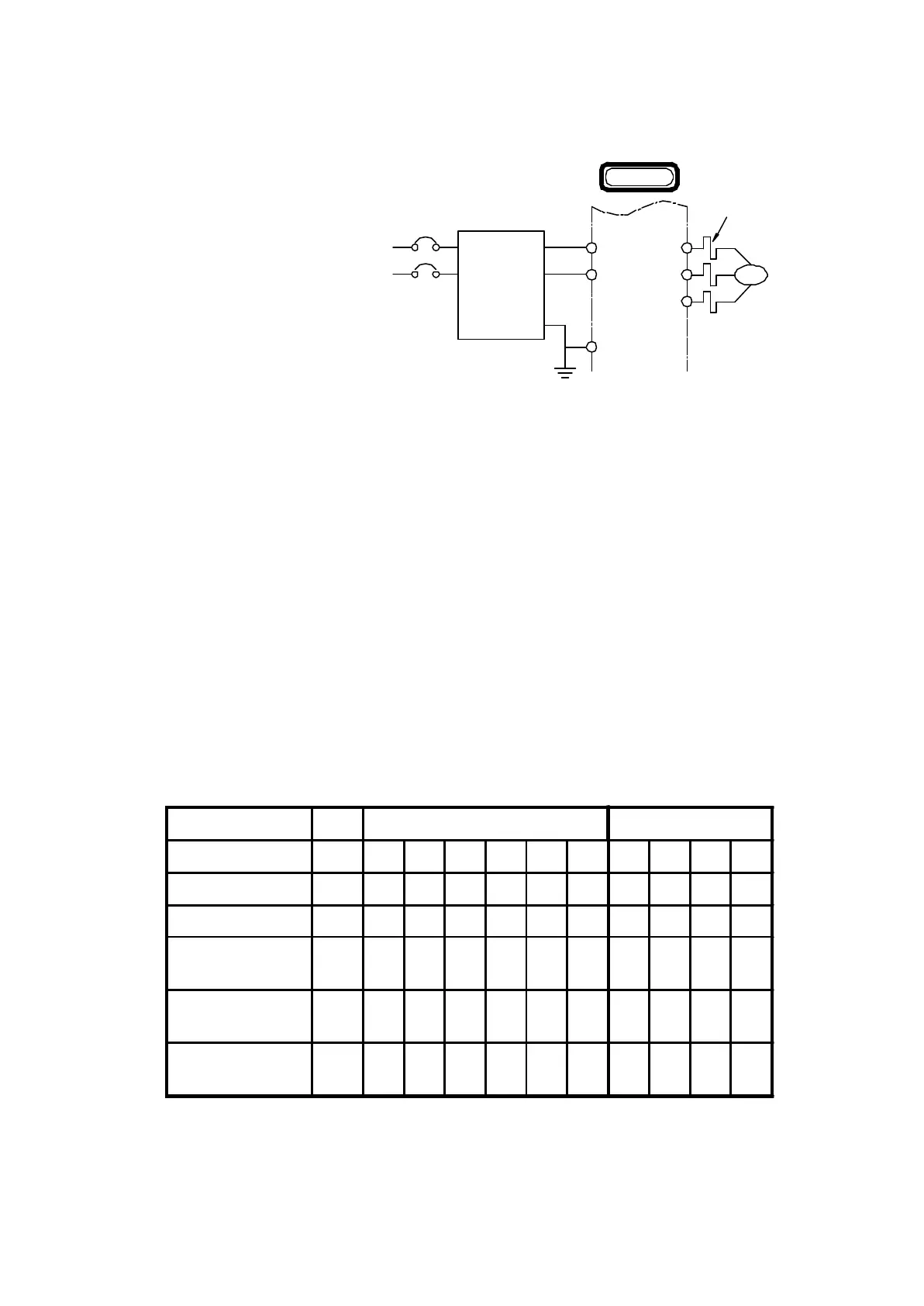

5-1 Wiring of main circuit
5-2 Wiring equipments
Select the wiring equipment and wiring size, refer to the table
below.
1. On the input power side, a molded case circuit breaker (MCCB)
to protect inverter primary wiring should be installed.
2. A leakage current breaker threshold of 200mA and above, or of
inverter use is recommended.
3. Use of input side magnetic contactor. An input MC can be used to
prevent an automatic restart after recovery from an external power
loss during remote control operation. However, do not use the MC
reduced reliability.
4. In general, magnetic contactors on the output of the inverter,
Should not be used for motor control. Starting a motor with the
inverter running will cause large surge currents and the inverter
overcurrent protector to trigger.
L1
L2
E
W
V
U
Filter
IM
THRY
MCCB
MS2-Series
Model MS1 MS2 MS4
Model No 04 02 04 07 15 22 37 07 15 22 37
Capacity (KVA) 1.0 0.6 1.0 1.6 2.7 3.8 6.1 1.9 3.1 4.2 6.5
Current (A) 2.5 1.4 2.5 4.1 7 10 16 2.5 4 6 9
Circuit Breaker
(MCCB) (A)
15 6 10 10 15 20 20 10 10 10 15
Electro-Magnetic
Contactor (A)
12 8 12 12 12 12 18 12 12 12 12
Thermal relay
RC value (A)
4.8 1.2 2.4 3.8 6.8 9 15 1.9 3.4 3.8 6.8
