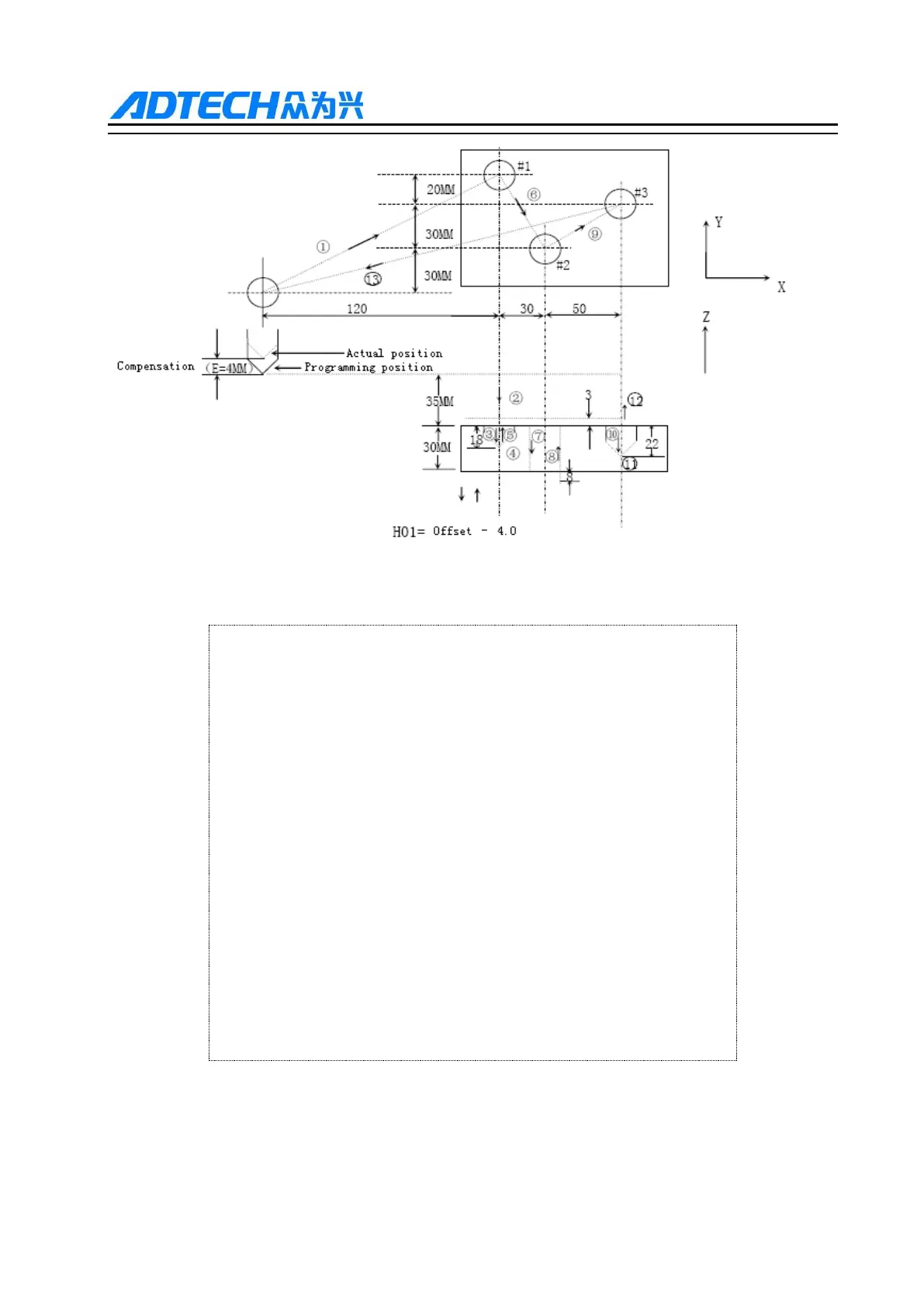

Fig. 9.1 Tool Compensation Processing Hole Example
N1 G91 G00 X120.0 Y80.0;…………………(1)
N2 G43 Z-32.0 H01;…………………………(2)
N3 G01 Z-21.0;………………………………(3)
N4 G04 P2000;………………………………(4)
N5 G00 Z21.0;………………………………(5)
N6 X30.0 Y-50.0;……………………………(6)
N7 G01 Z-41.0;………………………………(7)
N8 G00 Z41.0;……………………………(8)
N9 X50.0 Y30.0;……………… ……………(9)
N10 G01 Z-25.0;……………………………(10)
N11 G04 P2000;……………………………(11)
N12 G00 Z57.0 H00;………………………(12)
N13 X-200.0 Y-60.0;……………………(13)
N14 M30;
 Note:
When the offset No. is changed, it only changes to new offset, rather than adding the new offset to the old
offset.
