ADTECH9 Series CNC Programming Manual

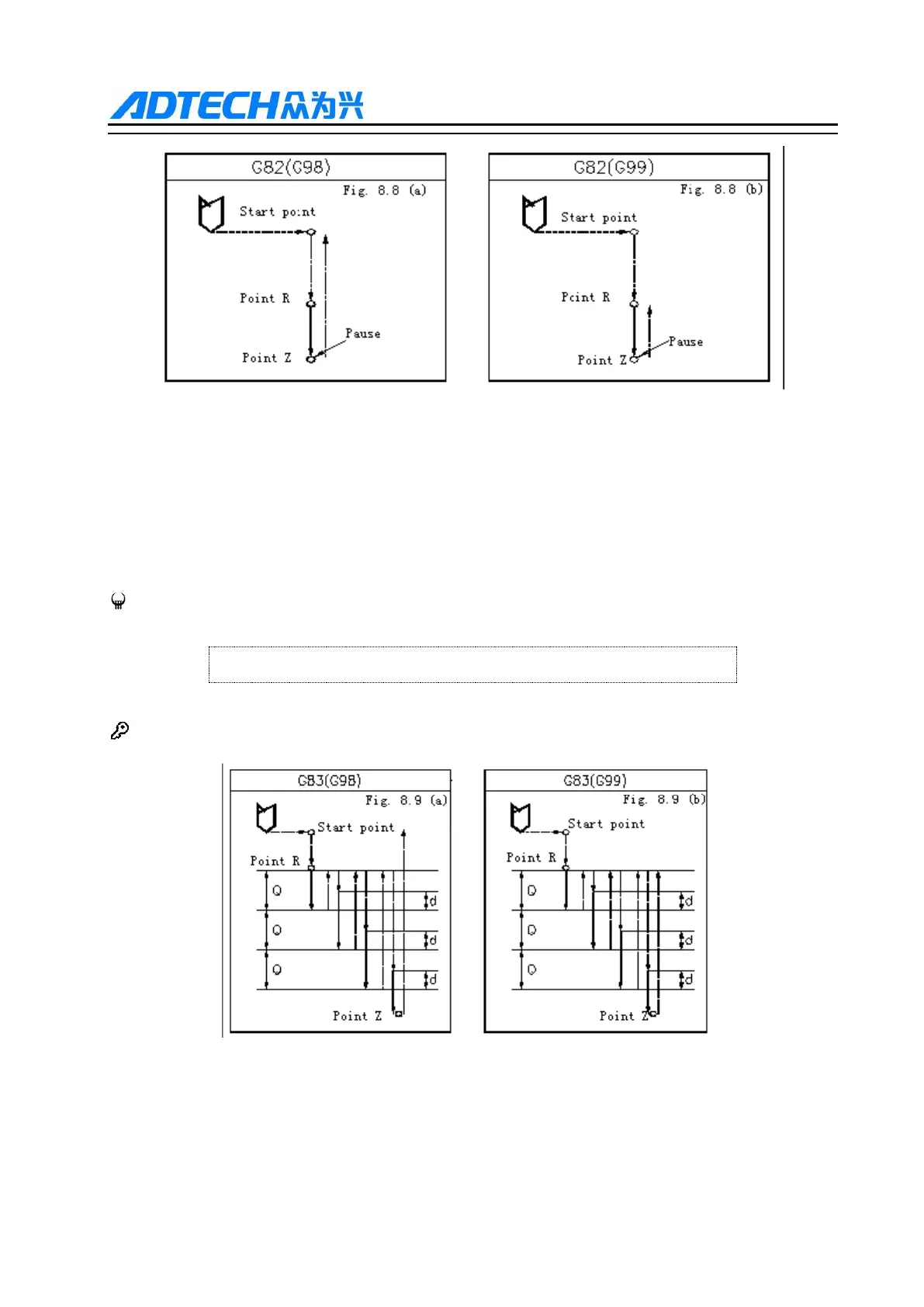

Drilling Cycle, Rough Boring Cycle Diagram
 Note:
G82 fixed cycle has a pause action in the hole bottom, and others are same to G81. The pause of hole
bottom can improve the precision of hole depth.
2.4.6. Deep-hole drilling cycle (G83)
Format:
G83 X_ Y_ Z_ R_ Q_ F_
Details:
Deep Hole Drilling Cycle (G83) Diagram
 Note:
Similar to G73 instruction, the feeding from point R to point Z under G83 instruction is also finished in
two segments; different from G73 instruction, Z axis returns to point R after feeding of every segment,
and then moves to position d above the start point at the quick feeding speed and starts the feeding of
