ADTECH9 Series CNC Programming Manual

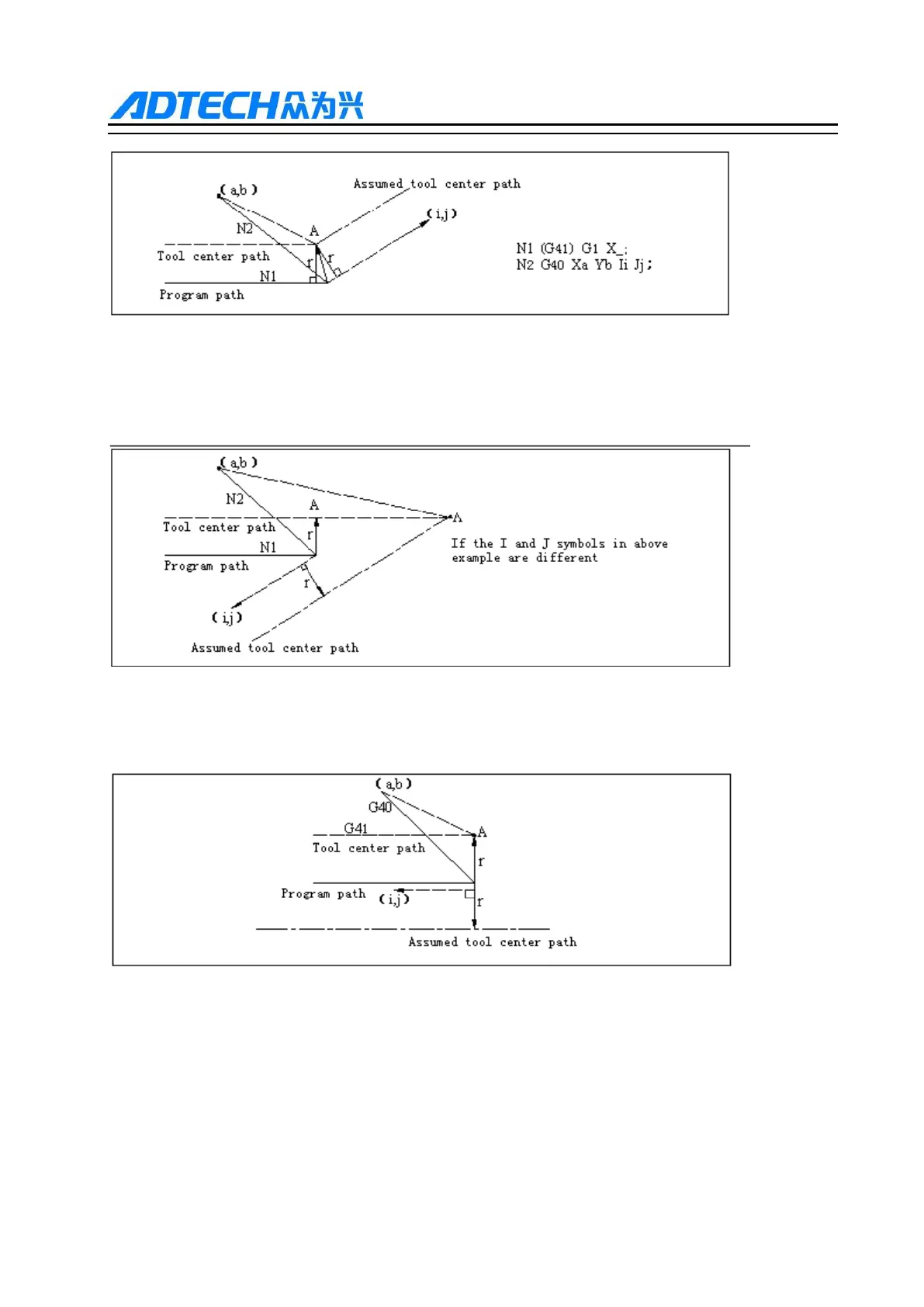

In this case, the compensation direction is shown in the figure below; although the compensation direction is
different from the instruction direction, the intersection still can be calculated, and therefore attention is
required.
Secondly, if the compensation of intersection calculation is high, vertical vector occurs in the program before
G40.
⑵ After the arc instruction, according to I, J, K vector of G40, if the arc path exceeds 360°, the uncut part
occurs, and attention is required.
