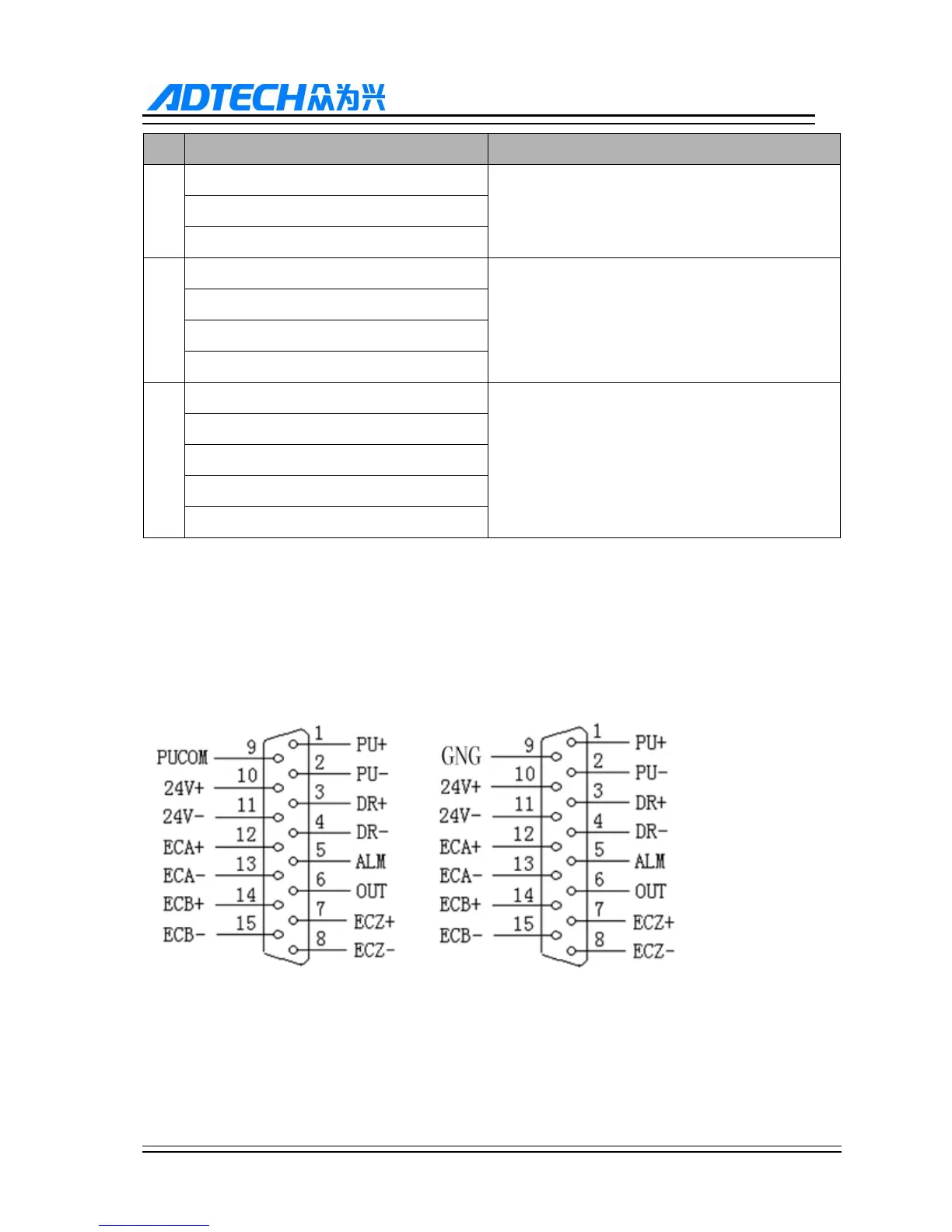

ADTECH9 Series CNC Maintenance Manual
- 188 -
Group Cable type Wiring Requirement
A
AC power cord
Bundle the cables of group A separately from group B
and C, keep at least 10cm clearance, or make
electromagnetic shielding for group A
AC coil
AC contactor
B
AC coil (24VDC)
Bundle the cables of group B separately from group A or
shield group B; group B and group C should be as far as
possible
DC relay (24VDC)
Cable between system and strong current cabinet
Cable between system and machine tool
C
Cable between system and machine tool
Bundle the cables of group C separately from group A,
or shield group C; keep at least 10cm clearance between
group C and group B and use twisted pair
Position feedback cable
Position encoder cable
Handwheel cable
Other cables for shielding
11.2
Interface Definition
12.2.1. Motor driver control interface
Four driver interfaces are available (XS1.. XS4, XS8 (note: CNC9650) of 96 series or XS1…XS4, XS5, XS6 of
99 series), and they have the same definition, as shown below:
96 series pulse interface
99 series pulse interface
